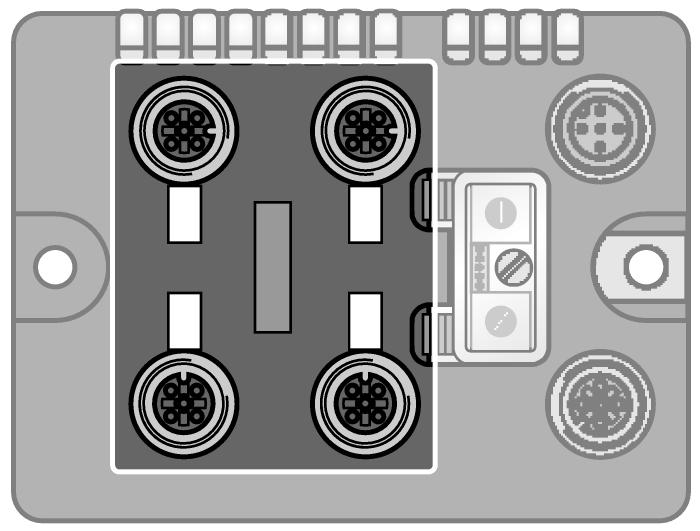

1 On-Machine kompakt fieldbus I/O blokları CANopen slave 10, 20, 50, 125, 250, 500, 800, or 1000 kbps Two 5-pin M12 male receptacles for fieldbus connection 2 rotary coding switches for node-address IP 69K M12 I/O ports LEDs indicating status and diagnostics Electronics galvanically isolated from the field level via optocouplers Tip kodu İdent no Nominal system voltage 24 VDC System power supply CANopen ile Admissible range V VDC Nominal current V+ 42 ma Max. current V+ 4 A 4 analog inputs for current or voltage 0/4 20 ma, -10/0 +10 VDC (selectable per channel) Fieldbus transmission rate 10 kbps 1 Mbps Adjustment transmission rate Automatic detection Fieldbus address range Fieldbus addressing 2 dec. Rotary coding switches Fieldbus connection technology 2 M12 5-pin Fieldbus termination External Service interface RS232 interface Analog girişler from 4AI-VI İşletme modları 0/4 20 ma veya -10/0 10 VDC Giriş tanılama türü Channel diagnostics Sensör besleme 24 VAC, maks. 1 A Input resistance Current: < kò, Voltage: < 98.5 kò Maximum limiting frequency analog < 20 Hz 23 C'de temel arıza sınırı < 0.3 % Tekrarlanabilirlik < 0,05 % Sıcaklık katsayısı < 300 ppm/ºc of full scale Çözünürlük 16 Bit Ölçüm prensibi Sigma Delta Ölçüm ekranı 16 bit signed integer 12 bit full range left-justified 1 / 5 Hans Turck GmbH & Co.KG ñ D Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel ñ Fax ñ more@turck.com ñ

2 Boyutlar Mounting Ağırlık Housing material Muhafaza rengi Window material Material screw Material label Zemin etiketi malzemesi IP Derecesi 93 x 71 x 32.5mm 2 5,4 mm delik çapları, 1,7 Nm tork 320 ± 20 g Glass fiber reinforced nylon, nickel-plated connector siyah Lexan nikel kaplamalı pirinç Polikarbonat kaplamalı polyester Nickel-plated brass IP67 IP69K Operating temperature ºC Saklama sıcaklığı ºC Relative humidity 15 to 95% (non-condensing) Titreşim testi acc. to IEC Extended vibration resistance - up to 20 g (at 10 up to 150 Hz) For mounting on base plate or machinery Darbe testi acc. to IEC Electromagnetic compatibility acc. to IEC Onaylar CE, culus 2 / 5 Hans Turck GmbH & Co.KG ñ D Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel ñ Fax ñ more@turck.com ñ

5T-2-RSC4.5T/TEL ident-no. 6625212 Tel ataması 2-wire Connection (current) 4-wire connection technology?

3 CANopen Fieldbus cable (example): RSC RKC 572-2M ident-no. U0323 or RSC-RKC572-2M ident-no Tel ataması Analog Inputs Extension cable (example): RK 4.5T-2-RS 4.5T/S653 ident-no. U or RKC4.5T-2-RSC4.5T/TEL ident-no Tel ataması 2-wire Connection (current) 4-wire connection technology? 3 / 5 Hans Turck GmbH & Co.KG ñ D Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel ñ Fax ñ more@turck.com ñ

4 Status: Station LED LED Color Status Description IO'lar KAPALI Güç kapalı KIRMIZI AÇIK Yetersiz güç beslemesi KIRMIZI YANIP SÖNÜYOR (1Hz) Sapma istasyonu konfigürasyonu KIRMIZI YANIP SÖNÜYOR (4 Hz) Modül veri yolu iletişimi yok YEŞİL AÇIK İstasyon TAMAM YEŞİL YANI SÖNÜYOR Kuvvet modu etkin ERR - OFF Normal operating mode RED ON CAN communication interrupted BUS GREEN ON NMT slave status operational ORANGE ON NMT slave status pre-operational RED ON NMT slave status stopped ERR & BUS RED FLASHING (4 Hz) Invalid node ID Status: I/O LED LED Color Status Description D * OFF Diagnostic disabled RED ON Station / module bus communication failure RED FLASHING (0.5Hz) Summarized diagnostic AI channels OFF Channel inactive 0 3 GREEN ON Channel active GREEN FLASHING (0.5 Hz) Measuring range undershoot GREEN FLASHING (4 Hz) Measuring range overshoot * D LED also indicates gateway diagnostic 4 / 5 Hans Turck GmbH & Co.KG ñ D Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel ñ Fax ñ more@turck.com ñ

5 I/O Data Map INPUT BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 AI AI 1 0 LSB 1 AI 1 0 MSB AI AI 1 1 LSB 3 AI 1 1 MSB AI AI 1 2 LSB 5 AI 1 2 MSB AI AI 1 3 LSB 7 AI 1 3 MSB 5 / 5 Hans Turck GmbH & Co.KG ñ D Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel ñ Fax ñ more@turck.com ñ
