BL compact Fieldbus Station for PROFIBUS-DP 4 Analog Current or Voltage Inputs and 8 Configurable Digital PNP Channels BLCDP-8M12LT-4AI-VI-8XSG-PD

Átírás

1 On-Machine kompakt fieldbus I/O blokları PROFIBUS-DP slave 9.6 kbps 12 Mbps Two 5-pin, reverse-keyed M12 male receptacles for fieldbus connection 2 rotary coding switches for node-address IP 69K M12 I/O ports LEDs indicating status and diagnostics Electronics galvanically isolated from the field level via optocouplers Tip kodu İdent no digitale PNP Kanäle, 24 VDC Max. 0,5 A pro Kanal Kanaldiagnose Nominal system voltage System power supply Voltage supply connection Admissible range Vi Nominal current Vi Max. current Vi Admissible range Vo Nominal current Vo Max. current Vo Electrical isolation 24 VDC yedek güç ile 2 x M12, 5 pimli 18 30VDC 212 ma 2 A 18 30VDC 100 ma 4 A Die 8XSG I/O-Karten haben ein gemeinsames Bezugspotential für den Betrieb und Lastspannung aufgrund ihrer frei wählbaren digitalen Kanäle. Aus diesem Grund müssen alle Spannungsquellen (VI, VO, V+), die auf diesem Gerät vorhanden sind gleichzeitig an passende Netzteile angeschlossen werden. Wahl von Filterzeiten (Eingangsverzögerung) Invertierung der Eingänge möglich 4 analog inputs for current or voltage 0/4 20 ma, -10/0 +10 VDC (selectable per channel) Fieldbus transmission rate 9.6 kbps 12 Mbps Adjustment transmission rate Automatic detection Fieldbus address range Fieldbus addressing 2 dec. Rotary coding switches Fieldbus connection technology 2 M12 5-pin, reverse-keyed Fieldbus termination External Service interface RS232 interface Digital inputs Input type Type of input diagnostics Sensor supply (V SENS) Low level signal voltage Low level signal voltage High level signal voltage Low level signal current High level signal current Input delay From 8XSG PNP Channel diagnostics 24 VDC, 100 ma kurzschlussbegrenzt 4.5 V < 4.5 VDC 7 30 VDC < 1.5 ma ma (configurable) 0.25 or 2.5 ms 1 / 6 Hans Turck GmbH & Co.KG ñ D Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel ñ Fax ñ more@turck.com ñ

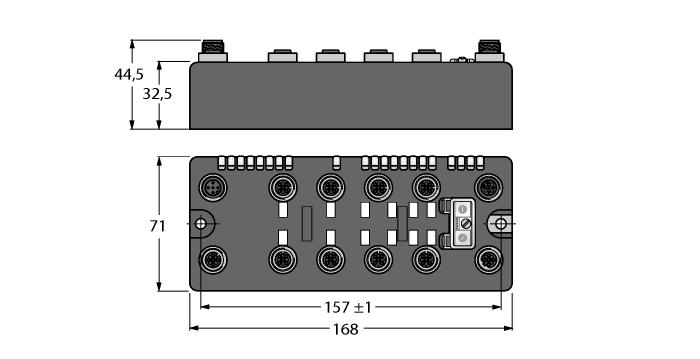

2 Digital outputs Output type Type of output diagnostics Sensor supply (V SENS) Output current per channel Output voltage Output delay Load type Load resistance, resistive Load resistance, inductive Lamp load Switching frequency, resistive Switching frequency, inductive Switching frequency, lamp load Short-circuit protection From 8XSG PNP Channel diagnostics 24 VDC 0.5 A 24 VDC from supply voltage 3 ms Resistive, inductive, lamp load > 48 ò < 1.2 H < 3 W < 200 Hz < 2 Hz < 20 Hz yes Analog girişler from 4AI-VI İşletme modları 0/4 20 ma veya -10/0 10 VDC Giriş tanılama türü Channel diagnostics Sensör besleme 24 VAC, maks. 1 A Input resistance Current: < kò, Voltage: < 98.5 kò Maximum limiting frequency analog < 20 Hz 23 C'de temel arıza sınırı < 0.3 % Tekrarlanabilirlik < 0,05 % Sıcaklık katsayısı < 300 ppm/ºc of full scale Çözünürlük 16 Bit Ölçüm prensibi Sigma Delta Ölçüm ekranı 16 bit signed integer 12 bit full range left-justified Boyutlar Mounting Ağırlık Housing material Muhafaza rengi Window material Material screw Material label Zemin etiketi malzemesi IP Derecesi 168 x 71 x 32.5mm 2 5,4 mm delik çapları, 1,7 Nm tork 620 ± 20 g Glass fiber reinforced nylon, nickel-plated connector siyah Lexan nikel kaplamalı pirinç Polikarbonat kaplamalı polyester Nickel-plated brass IP67 IP69K Operating temperature ºC Saklama sıcaklığı ºC Relative humidity 15 to 95% (non-condensing) Titreşim testi acc. to IEC Extended vibration resistance - up to 20 g (at 10 up to 150 Hz) For mounting on base plate or machinery Darbe testi acc. to IEC Electromagnetic compatibility acc. to IEC Onaylar CE, culus 2 / 6 Hans Turck GmbH & Co.KG ñ D Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel ñ Fax ñ more@turck.com ñ

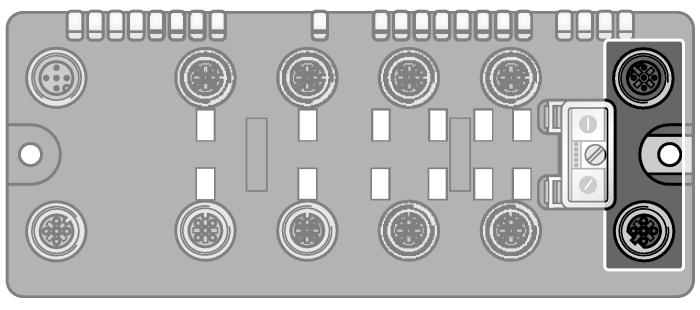

3 PROFIBUS-DP Fieldbus cable (example): RSSW RKSW 455-2M ident-no. U0350 or RSSW-RKSW455-2M ident-no Slot 1: Analog Inputs Extension cable (example): RK 4.5T-2-RS 4.5T/S653 ident-no. U or RKC4.5T-2-RSC4.5T/TEL ident-no Tel ataması 2-wire Connection (current) 4-wire connection technology? 3 / 6 Hans Turck GmbH & Co.KG ñ D Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel ñ Fax ñ more@turck.com ñ

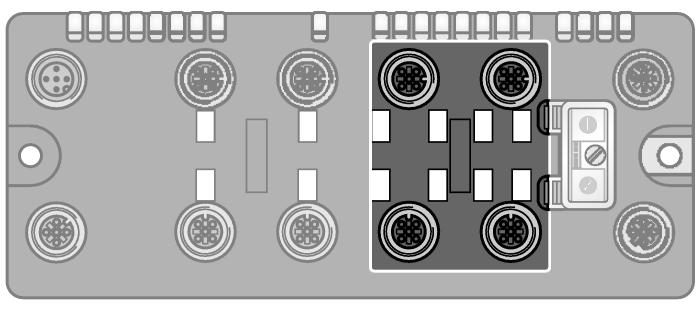

4 Tel ataması Slot 2: Digital Inputs and Outputs Extension cable (example): RK 4.4T-2-RS 4.4T ident-no. U2445 or RKC4.4T-2-RSC4.4T/TEL ident-no Auxiliary Power Extension cable (example): RKC 4.4T-2-RSC 4.4T ident-no. U5264 or RKC4.4T-2-RSC4.4T/TEL ident-no Tel ataması 4 / 6 Hans Turck GmbH & Co.KG ñ D Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel ñ Fax ñ more@turck.com ñ

5 Status: Station LED LED Color Status Description IO'lar KAPALI Güç kapalı KIRMIZI AÇIK Yetersiz güç beslemesi KIRMIZI YANIP SÖNÜYOR (1Hz) Sapma istasyonu konfigürasyonu KIRMIZI YANIP SÖNÜYOR (4 Hz) Modül veri yolu iletişimi yok YEŞİL AÇIK İstasyon TAMAM YEŞİL YANI SÖNÜYOR Kuvvet modu etkin BUS OFF Keine Feldbus Kommunikation GREEN ON Feldbus Kommunikation aktiv GREEN FLASHING (1 Hz) No field bus communication active, device status OK RED ON Bus error at the gateway; no data exchange RED FLASHING Faulty PROFIBUS-DP address BUS OFF Keine Feldbus Kommunikation GREEN ON Feldbus Kommunikation aktiv GREEN FLASHING (1 Hz) Keine Feldbuskommunikation aktiv, Gerätestatus OK RED ON Busfehler am Gateway; kein Datenaustausch RED FLASHING Fehlerhafte PROFIBUS-DP Adresse Status: I/O LED, slot 1 LED Color Status Description D1 * OFF Diagnostic disabled RED ON Station / module bus communication failure RED FLASHING (0.5Hz) Summarized diagnostic AI channels OFF Channel inactive GREEN ON Channel active GREEN FLASHING (0.5 Hz) Measuring range undershoot GREEN FLASHING (4 Hz) Measuring range overshoot * D1 LED also indicates gateway diagnostic I/O LED Status Slot 2 LED Colour Status Description D2 * OFF Diagnostic disabled RED ON Station / module bus communication failure RED FLASHING (0.5Hz) Summarized diagnostic XSG channels OFF Channel status x = 0 (OFF), no diagnostics active GREEN ON Channel status x = 1 (ON) RED ON Short-circuit at output RED FLASHING (2 Hz) Short-circuit sensor supply * The D2 LED also indicates gateway diagnosis 5 / 6 Hans Turck GmbH & Co.KG ñ D Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel ñ Fax ñ more@turck.com ñ

6 I/O Data Map INPUT BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 AI AI 1 0 LSB 1 AI 1 0 MSB AI AI 1 1 LSB 3 AI 1 1 MSB AI AI 1 2 LSB 5 AI 1 2 MSB AI AI 1 3 LSB 7 AI 1 3 MSB 8 DI 2 7 DI 2 6 DI 2 5 DI 2 4 DI 2 3 DI 2 2 DI 2 1 DI OUTPUT BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 0 DO 2 7 DO 2 6 DO 2 5 DO 2 4 DO 2 3 DO 2 2 DO 2 1 DO / 6 Hans Turck GmbH & Co.KG ñ D Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel ñ Fax ñ more@turck.com ñ
