BL compact Multiprotocol Station for Industrial Ethernet 4 Analog Thermocouple Inputs BLCEN-4M12MT-4AI-TC

Átírás

1 On-Machine kompakt fieldbus I/O blokları EtherNet/IP, Modbus TCP or PROFI- NET slave Integrated Ethernet switch 10 Mbps/100 Mbps Two 4-pin, D-coded M12 connectors for fieldbus connection 2 rotary coding switches for node-address IP 69K M12 I/O ports LEDs indicating status and diagnostics Tip kodu İdent no Electronics galvanically isolated from the field level via optocouplers 4 analog inputs for thermocouples Nominal system voltage System power supply Voltage supply connection Admissible range Vi Nominal current Vi Max. current Vi 24 VDC yedek güç ile 2 x M12, 5 pimli 18 30VDC 155 ma 1 A Types B, C, E, G, J, K, N, R, S or T (selectable per channel) Cold junction compensation via Pt1000 probe in a special connector FLC/ARGEE programlanabilir Fieldbus transmission rate 10/100 Mbps Adjustment transmission rate Automatic detection Fieldbus address range ( ) 93 (BootP) 94 (DHCP) 95 (PGM) 96 (PGM-DHCP) *Recommended for PROFINET (üreticiye özel) Fieldbus addressing 2 dec. Rotary coding switches Fieldbus connection technology 2 M12 4-pin, D-coded Protocol detection otomatik Web sunucusu Integrated Service interface Ethernet Vendor ID 48 Product type 12 Product code Modbus TCP Static IP, BOOTP, DHCP Supported function codes FC1, FC2, FC3, FC4, FC5, FC6, FC15, FC16, FC23 TCP bağlantısı sayısı 6 max. 6 register Input register start address 0 (0x0000 hex) EtherNet/IP acc. to EtherNet/IP specification Cihaz Düzeyi Zili (CDZ) Sınıf 1 bağlantılar 6 Input Assembly Instance INT Output Assembly Instance 104 Output Data Size 1 INT Configuration Assembly Instance 106 Configuration Size 0 Comm Format Data - INT 1 / 5 Hans Turck GmbH & Co.KG ñ D Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel ñ Fax ñ more@turck.com ñ

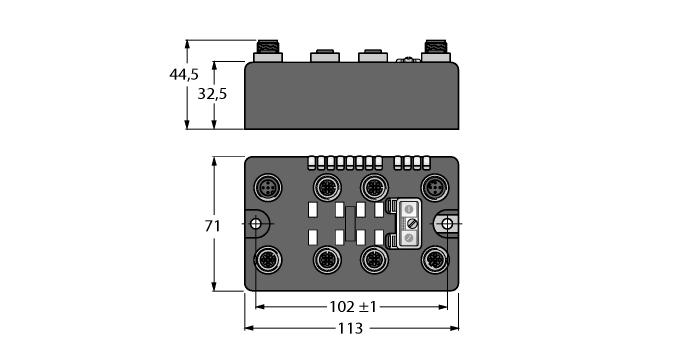

2 PROFINET Conformance class MinCycleTime Diagnostics Topology detection Automatic addressing Media Redundancy Protocol (MRP) DCP B (RT) 1 ms acc. to PROFINET alarm handling max. 8 BYTE Analog girişler from 4AI-TC İşletme modları Tür B, C, E, G, J, K, N, R, S, T Giriş tanılama türü Channel diagnostics Sensör besleme 24 VAC, maks. 1 A Input resistance > 7 Mò Gerilim çözünürlük ± 50 mv: < 2 µv ± 100 mv: < 4 µv ± 500 mv: < 20 µv ± 1000 mv: < 50 µv Maximum limiting frequency analog < 70 Hz 23 C'de temel arıza sınırı < 0.2 % Tekrarlanabilirlik < 0,05 % Sıcaklık katsayısı < 300 ppm/ºc of full scale Çözünürlük 16 Bit Ölçüm ekranı 16 bit signed integer 12 bit full range left-justified Boyutlar Mounting Ağırlık Housing material Muhafaza rengi Window material Material screw Material label Zemin etiketi malzemesi IP Derecesi 113 x 71 x 32.5mm 2 5,4 mm delik çapları, 1,7 Nm tork 390 ± 20 g Glass fiber reinforced nylon, nickel-plated connector siyah Lexan nikel kaplamalı pirinç Polikarbonat kaplamalı polyester Nickel-plated brass IP67 IP69K Operating temperature ºC Saklama sıcaklığı ºC Relative humidity 15 to 95% (non-condensing) Titreşim testi acc. to IEC Extended vibration resistance - up to 20 g (at 10 up to 150 Hz) For mounting on base plate or machinery Darbe testi acc. to IEC Electromagnetic compatibility acc. to IEC MTTF 132 yılı MTTF notu SN 29500'e uygun (Ed. 99) 20 C Onaylar CE, culus 2 / 5 Hans Turck GmbH & Co.KG ñ D Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel ñ Fax ñ more@turck.com ñ

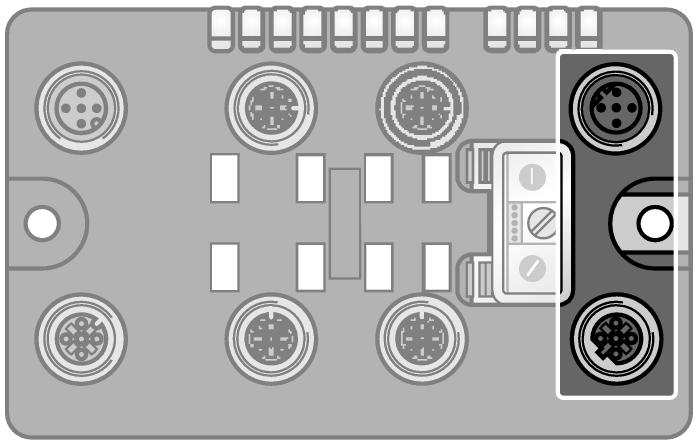

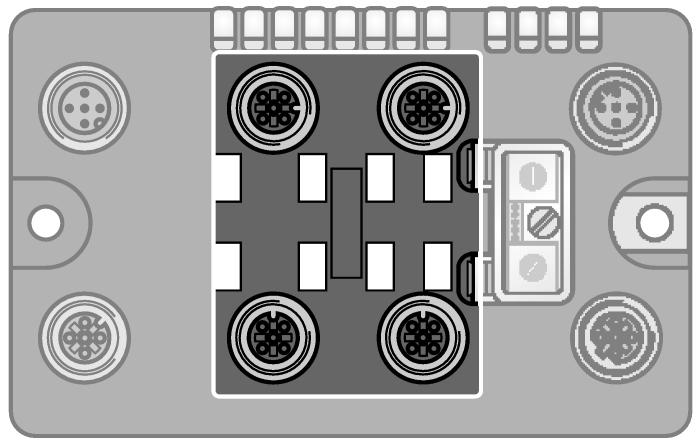

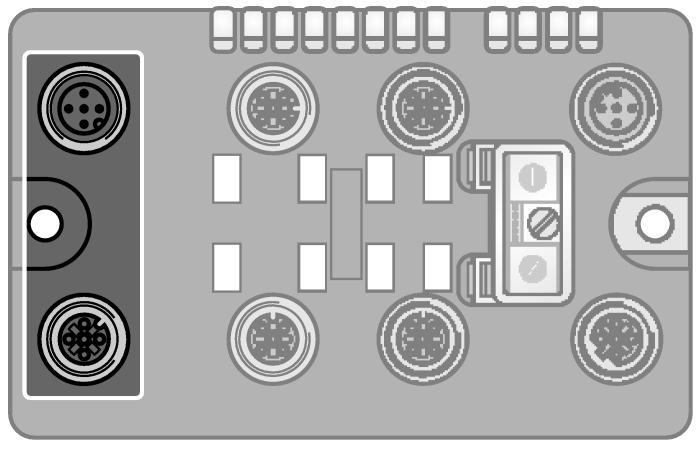

3 Ethernet Fieldbus kablosu (örnek): RSSD RSSD 441-2M Tanıtım numarası U veya RSSD-RSSD-441-2M/S2174 Tanıtım numarası Thermocouple Inputs TC compensating connector BL67-WAS5-THERMO ident-no Tel ataması Wiring Diagram Auxiliary Power Extension cable (example): RKC 4.4T-2-RSC 4.4T ident-no. U5264 or RKC4.4T-2-RSC4.4T/TEL ident-no Tel ataması 3 / 5 Hans Turck GmbH & Co.KG ñ D Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel ñ Fax ñ more@turck.com ñ

4 Status: Station LED LED Color Status Description IO'lar KAPALI Güç kapalı KIRMIZI AÇIK Yetersiz güç beslemesi KIRMIZI YANIP SÖNÜYOR (1Hz) Sapma istasyonu konfigürasyonu KIRMIZI YANIP SÖNÜYOR (4 Hz) Modül veri yolu iletişimi yok YEŞİL AÇIK İstasyon TAMAM YEŞİL YANI SÖNÜYOR Kuvvet modu etkin VERİ YOLU KAPALI Güç Kapalı YEŞİL AÇIK Merkeze Bağlı YEŞİL YANIP SÖNÜYOR Hazır KIRMIZI AÇIK Hata KIRMIZI YANIP SÖNÜYOR WINK SARI AÇIK DHCP/BOOTP Araması IO GREEN ON I/O slots OK GREEN FLASHING (1Hz) At least one I/O slot in idle state RED ON At least one faulty I/O slot RED FLASHING At least one I/O slot in faulty state Status: I/O LED LED Color Status Description D * OFF Diagnostic disabled RED ON Station / module bus communication failure RED FLASHING (0.5Hz) Summarized diagnostic AI channels 0 / 1 Without function * D LED also indicates gateway diagnostic 4 / 5 Hans Turck GmbH & Co.KG ñ D Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel ñ Fax ñ more@turck.com ñ

5 Process Data Mapping of the Single Protocols EtherNet/IP I/O and Diagnostic Data Mapping INPUT BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 AI AI 1 0 LSB 1 AI 1 0 MSB AI AI 1 1 LSB 3 AI 1 1 MSB AI AI 1 2 LSB 5 AI 1 2 MSB AI AI 1 3 LSB 7 AI 1 3 MSB Diagnose Steckplatz 1 (ref. Byte 8) 8 Modulnummer meldet Diagnose Daten 9 Austauschstatiotiv - Diagnose ak Offener AI Offener 1 0 AI Offener 1 1 AI Offener 1 2 AI 1 3 Anahtar: AI Analog giriş MR Ölçülen değer Aralığı hatası (OoR) CFG Yapılandırma Hatası OC Açık Devre COM İletişim Hatası S1 Yuva 1 DIA Teşhis Etkin VI düşük VI Gerilimi FCE Kuvvet Modu Etkin VO düşük VO Gerilimi Modbus TCP Register Mapping REG Bit 15 Bit 14 Bit 13 Bit 12 Bit 11 Bit 10 Bit 9 Bit 8 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Eingänge (RO) 0x0000 AI x0001 AI 1 1 0x0002 AI 1 2 0x0003 AI 1 3 Status (RO) 0x FCE - - CFG COM VI low - VO low DIA Diag. (RO) 0x S1 DIA I/O Diag (RO) PROFINET Process Data Eingänge 0xA CJAI 1 1 OCAI MRAI CJAI 1 0 OCAI MRAI xA CJAI 1 3 OCAI MRAI CJAI 1 2 OCAI MRAI BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 0 AI 1 0 LSB 1 AI 1 0 MSB 2 AI 1 1 LSB 3 AI 1 1 MSB 4 AI 1 2 LSB 5 AI 1 2 MSB 6 AI 1 3 LSB 7 AI 1 3 MSB 5 / 5 Hans Turck GmbH & Co.KG ñ D Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel ñ Fax ñ more@turck.com ñ
