Verification of the operation of resonance frequency charger with reference battery.

Átírás

1

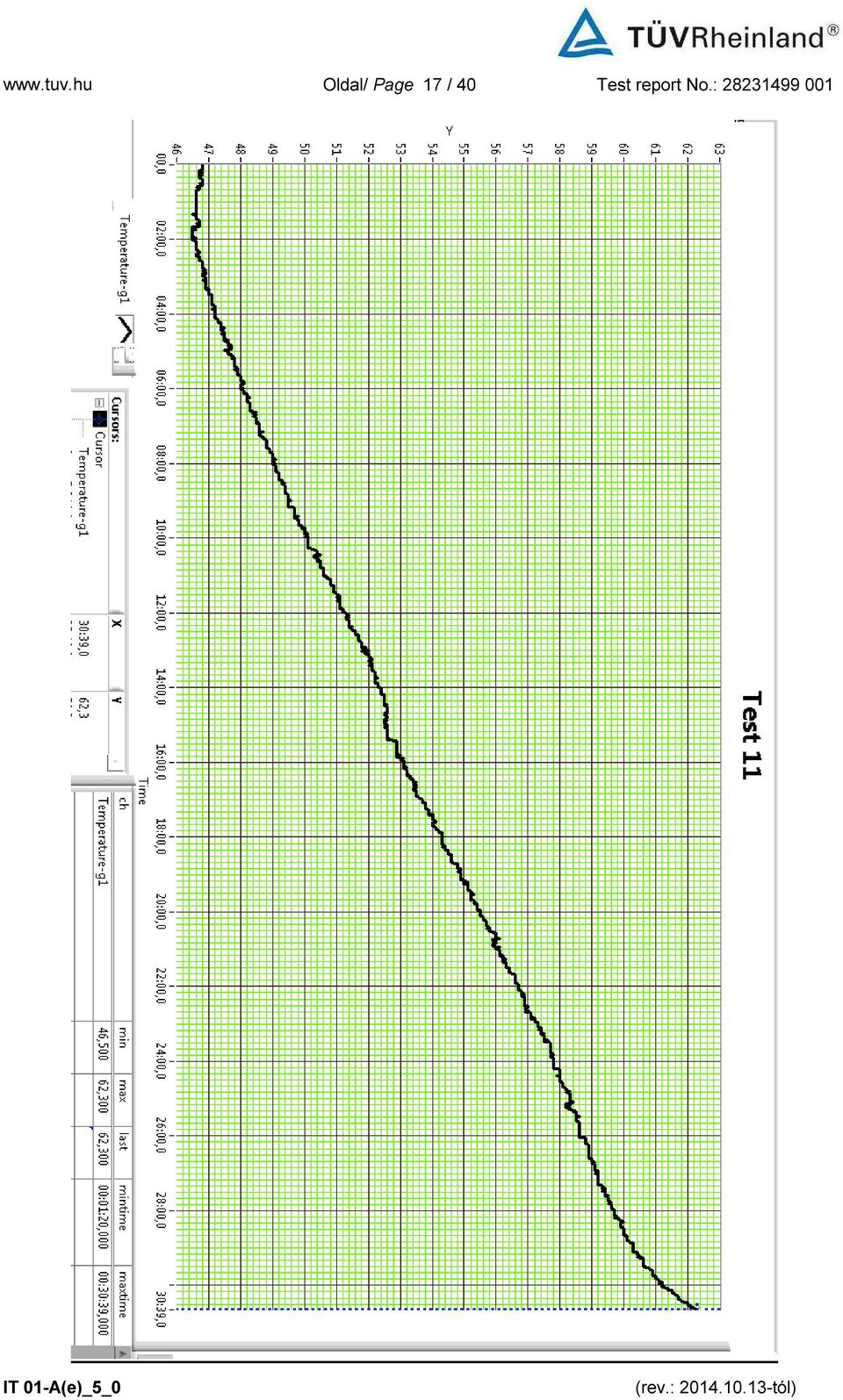

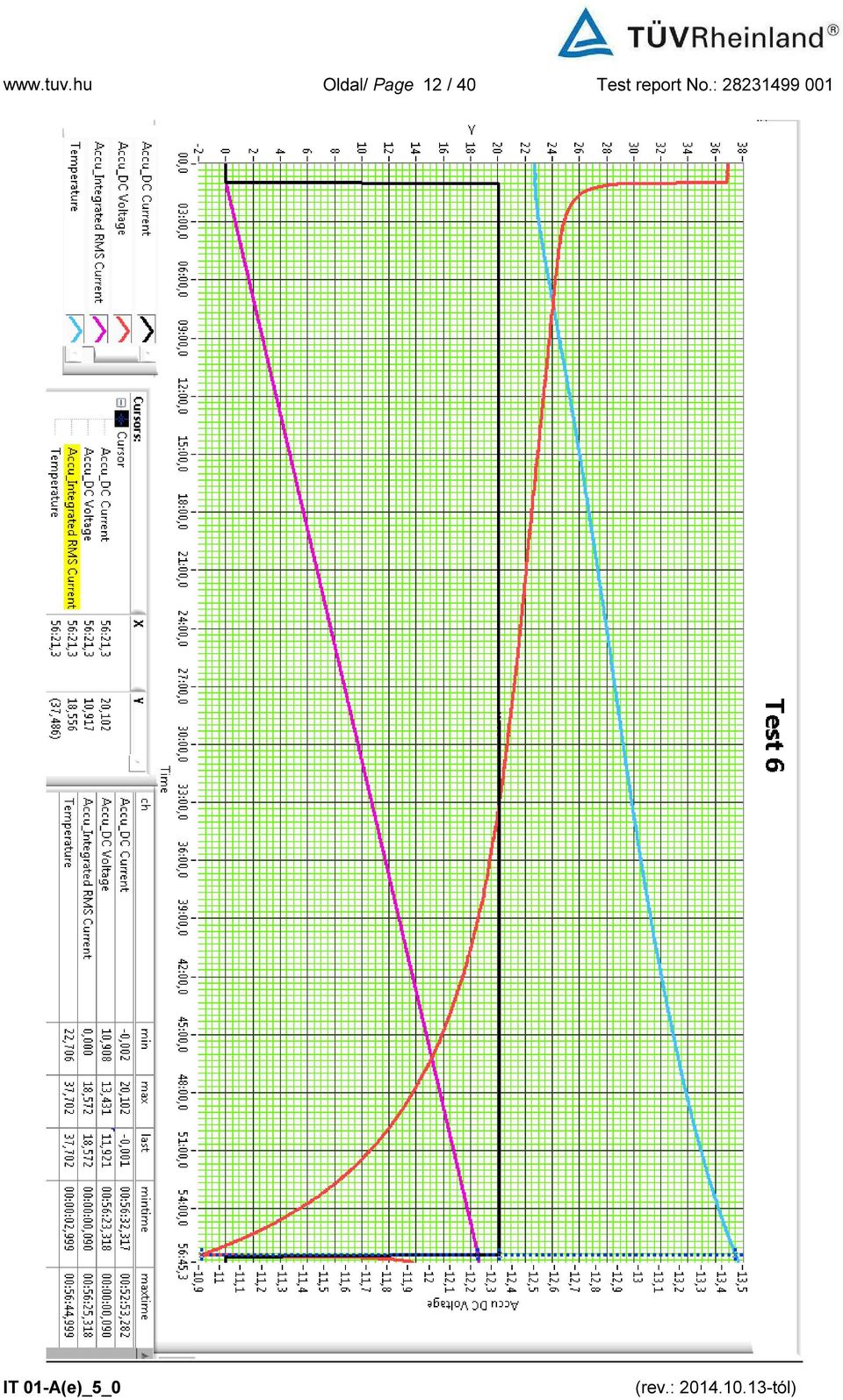

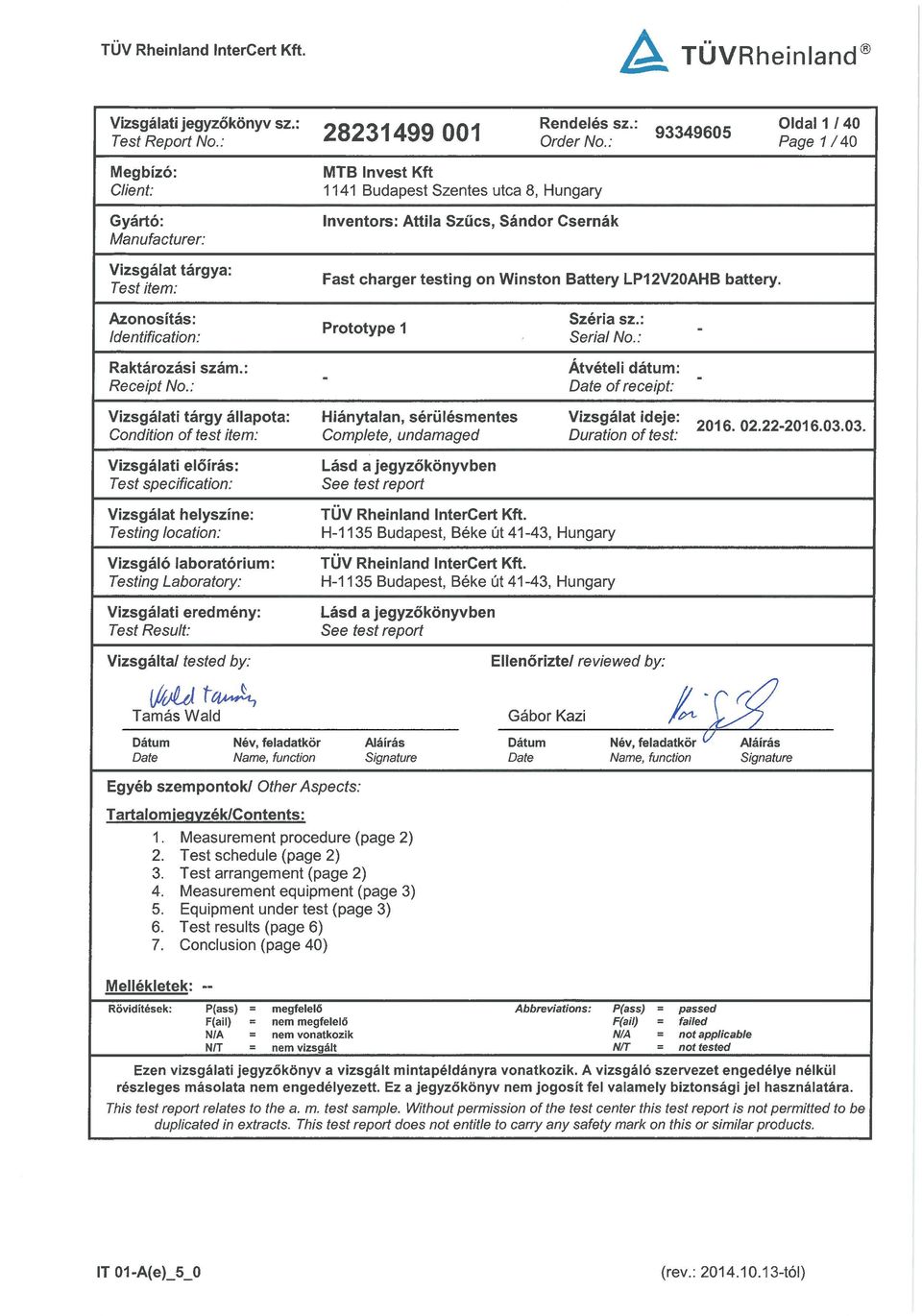

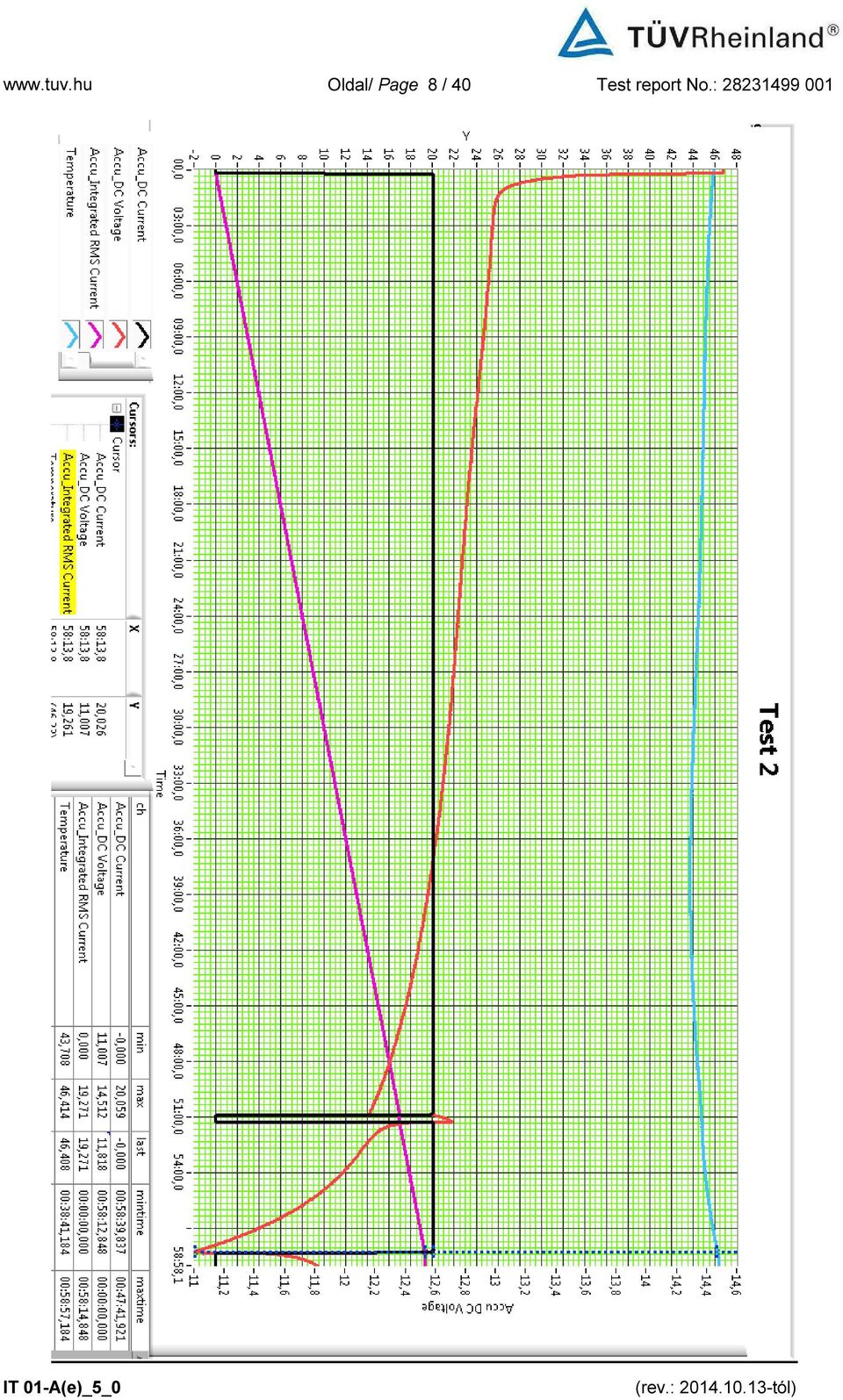

2 Oldal/ Page 2 / 40 Test report No.: Measurement procedure Goal of testing Verification of the energy loaded into a battery, using the fast charger, and standard DC charger with discharging with the same method (DC CC mode 1C) and logging the data with accurate, and calibrated instruments (power analyzer). Verification of the operation of resonance frequency charger with reference battery. This verification consist of measuring the amount of input AC power of the charger, battery temperature during charge, and basic safety of the battery. (No explosion, no fire, no leakage) The battery is discharged with a calibrated electronic load. 2. Test schedule: 1. Charging battery with fast charger (Charger's input AC power logged for information) 2. Discharging the battery with constant current to the specified voltage. During discharge, data logging, voltage, current, time SoC/Ah (Integrated current by time), Wh with (precision power analyzer), Temperature measured with thermocouple connected to precision multimeter. 3. Charging battery with DC power supply, CC-CV method. During charge, data logging, voltage, current, time SoC/Ah (Integrated current by time), Wh with (precision power analyzer), Temperature measured with thermocouple connected to precision multimeter. 4. Discharging the battery with constant current to the specified voltage. During discharge, data logging, voltage, current, time SoC/Ah (Integrated current by time), Wh with (precision power analyzer), Temperature measured with thermocouple connected to precision multimeter 5. Charging battery with fast charger (Charger's input AC power logged for information) 6. Discharging the battery with constant current to the specified voltage. During discharge, data logging, voltage, current, time SoC/Ah (Integrated current by time), Wh with (precision power analyzer), Temperature measured with thermocouple connected to precision multimeter. 3. Test arrangement

3 Oldal/ Page 3 / 40 Test report No.: Measurement equipment Measuring equipment Manufacturer Precision power analyzer Newton's4th Precision multimeter Multichannel datalogger Electronic load (for CC discharging to specified voltage "Battery mode") DC Power supply (for DC charging with CC-CV) Type KinetiQ PPA5530 Inventory No. Next calibration Additional equipment /notes Channels PH1: Fast charger AC input PH3: Battery Details see below Picotest M3510A K type thermocouple Temperature Graphtec GL K type thermocouples BK-Precision Ametek- Sorensen XG All used instrument s complete calibration reports attached. Power analyzer channels at battery discharging and DC charging Measured from voltage and current on PH3 inputs Accu_DC Current Accu_DC Voltage Accu_Watt Accu_Integrated RMS Current Accu_Integrated Watts Power analyzer channels at fast charger's input power measurements Measured from voltage and current on PH1 inputs AC_Charger_input_Frequency AC_Charger_input_Integrated VA AC_Charger_input_Integrated VAr AC_Charger_input_Integrated Watts AC_Charger_input_Power Factor AC_Charger_input_RMS Current AC_Charger_input_RMS Voltage AC_Charger_input_VA AC_Charger_input_VAr AC_Charger_input_Watt For measuring/calculating principles see the instrument's manual. Voltage sense input directly connected to battery. Voltage sense input directly connected to battery. Temperature_ g[1..4] No computer interface. No computer interface.

4 Oldal/ Page 4 / 40 Test report No.: Equipment under test Fast Resonance Battery charger Output Charging voltage range Charging current range Charging time Pulse series on resonance frequency Regulated pulse series up to 30V max 100A (impulses) Approx 25-40min Input Voltage V Current 10A Frequency 50Hz

5 Oldal/ Page 5 / 40 Test report No.: Battery Before this test, the battery was charged more than 2000 times with the fast charger, and 500 times with standard DC charger.

6 Oldal/ Page 6 / 40 Test report No.: Measurement results: DC charging has negative sign, discharging has positive sign. Nr Date Feb :00 2 Feb :10 3 Feb :42 4 Feb 23 17:22 5 Feb :47 6 Feb 29 8:49 7 Feb 29 9:52 8 Feb 29 10:25 9. Feb 29 11:55 10 Feb 29 12:36 11 Feb 29 13:16 12 Feb 29 13:51 13 Feb 29 15:46 14 Marc 1 8:00 15 Marc 1 8:29 16 Marc 1 9:24 17 Marc 1 10:26 Test Fast charging Discharge 12,2V->11V 20A Long DC charging 2A, 13,2V Discharging to 11V 20A DC charging 2A, 13,7V Discharge to 11V 20A Fast charging Format switch off Discharge to 11V 20A Fast charge Format switch off Discharge to 11V 20A Fast charge Format switch on Discharge to 11V 20A Duration Start Finish [hh:mm:ss] Voltage Voltage Soc [Ah] Temp [ C] , :50:57 0:58:11 14,512 12,166 11,007 16,931 19,261 0,5 (45,9-46,4) (Session 1) 21:34:04 12,571 17,272-19, (40,9-21,9) (Session 4) 0:57:53 16,287 10,998 19,026 16,9 (21,7-38,6) 5 17:13:30 12,891 13,921-18,692 0,4 (24,4-24,8) 6 0:56:45 13,43 10,917 18, (22,7-37,7) (session 16) 0:27: (37-55) 17 0:53:49 13,38 10,985 17,831-4,1 (max 54,9) 18 0:19:47 ** ,2 (43,2-53,4) 20 0:36:43 13,279 10,986 12,164-3,1 (48,4-45,3) 21 0:30: ,5 (46,8-62,3) 22 1:02:24 14,242 10,994 19,425 6,6 (58,8-52,2) 23 DC charge 13V 5A CC-CV 16:09:25 12,468 13,093-3,717-18,3 (42,3-24) 24 Fast charge 0:24: (23-49) 25 Discharge *12V 20A 0:51:38-11,962 17,106 1,7 (48,9-47) 26 Fast charge 0:27: ,8 (45,8-56,6) 27 Discharge *12V 20A 0:50:52 13,356 11,966 16,816-3,8 (51,3-47,5) 28

7 Oldal/ Page 7 / 40 Test report No.: Nr Date Marc 1 11:28 19 Marc 2 8:56 20 Marc 2 9:03 21 Marc 2 9:35 22 Marc 2 10:56 23 Marc 2 11:21 24 Marc 2 11:53 25 Marc 2 12:57 26 Marc 2 14:15 27 Marc 3 8:49 28 Marc 3 10:30 29 Marc 3 11:04 30 Marc 3 12:07 31 Marc 3 12:43 32 Marc 3 14:10 33 Marc 3 14:46 Test DC charge standard LiFe charger Discharge 20A 12V Duration Start Finish [hh:mm:ss] Voltage Voltage Soc [Ah] Temp [ C] 20:36:17 12,795 14,426-18,158-22,2 (46,1-23,9) 29 0:48:18 14,402 12,017 15,996 - Fast charge 0:24: ,7(33,4-51,1) 31 Discharge 0:50:50 13,386 11,984 16,943-5,5(51,6-46,1) 20A 12V Fast charge 0:13:56 ** - - 7,2(40,5-47,7) 33 Discharge 20A 12V 0:26:03 13,258 11,983 8,597 1,3(47,3-46) 34 Fast charge 0:32:03 ** ,7(44,4-63,1) 35 Discharge 20A 11V 1:00:47 15,817 10,974 20,252-3,7(54,2-50,5) Fast charge 0:28: ,4 (46,3-57,7) Discharge 20A 11V 0:48:20 13,302 10,9 16,145 12,6(22,6-35,2) Fast charge 0:25:50 ** ,6(32,8-55,4) 39 Discharge 20A 11V 0:50:58 13,366 10,979 16,943-0,61(49,8-49,19) 40 Fast charge 0:27:33 ** - 7,9(45,1-53) 41 Discharge 20A 12V 0:45:53 13,365 11,959 15,268-11,2(60-48,8) 42 Fast charge 0:27:31 ** - 20,1(36,8-56,9) 43 Discharge 20A 12V ** Fast charger AC input power measured. Note: 0:48:32 13,383 11,947 16,182-7,4(55,2-47,8) 44 12V might be the voltage where the vehicle's electronic determines the battery empty state. Under this limit the voltage decreases fast in case of further load.

8 Oldal/ Page 8 / 40 Test report No.:

9 Oldal/ Page 9 / 40 Test report No.:

10 Oldal/ Page 10 / 40 Test report No.:

11 Oldal/ Page 11 / 40 Test report No.:

12 Oldal/ Page 12 / 40 Test report No.:

13 Oldal/ Page 13 / 40 Test report No.:

14 Oldal/ Page 14 / 40 Test report No.:

15 Oldal/ Page 15 / 40 Test report No.:

16 Oldal/ Page 16 / 40 Test report No.:

17 Oldal/ Page 17 / 40 Test report No.:

18 Oldal/ Page 18 / 40 Test report No.:

19 Oldal/ Page 19 / 40 Test report No.:

20 Oldal/ Page 20 / 40 Test report No.:

21 Oldal/ Page 21 / 40 Test report No.:

22 Oldal/ Page 22 / 40 Test report No.:

23 Oldal/ Page 23 / 40 Test report No.:

24 Oldal/ Page 24 / 40 Test report No.:

25 Oldal/ Page 25 / 40 Test report No.:

26 Oldal/ Page 26 / 40 Test report No.:

27 Oldal/ Page 27 / 40 Test report No.:

28 Oldal/ Page 28 / 40 Test report No.:

29 Oldal/ Page 29 / 40 Test report No.:

30 Oldal/ Page 30 / 40 Test report No.:

31 Oldal/ Page 31 / 40 Test report No.:

32 Oldal/ Page 32 / 40 Test report No.:

33 Oldal/ Page 33 / 40 Test report No.:

34 Oldal/ Page 34 / 40 Test report No.:

35 Oldal/ Page 35 / 40 Test report No.:

36 Oldal/ Page 36 / 40 Test report No.:

37 Oldal/ Page 37 / 40 Test report No.:

38 Oldal/ Page 38 / 40 Test report No.:

39 Oldal/ Page 39 / 40 Test report No.:

40 Oldal/ Page 40 / 40 Test report No.: Conclusion According to the test results, there is no significant difference between the fast charged and DC charged energy amount. Temperature measured between the two cell surfaces. The battery does not exceed the 62,3 C at fast charge(4c charging), 40,9 C at DC (0,1C) charging, 60 C at (1C) discharging. No fire, no explosion, no mechanical deformation, no leakage experienced. END OF TEST REPORT
