1 MAÚT Mérnökakadémia Útépítés és geotechnika szabályok és tapasztalatok MAKADÁM-Klub Budapest, Lövőház u november 2007 Földművek tervezése, minőségbiztosítása és monitoringja Ausztriában Standardization, Design, Quality Assurance and Monitoring of Earth Works in Road Engineering in Austria Assoc.Prof. Dipl.-Ing. Dr.techn. Dietmar Vienna University of Technology Institute for Ground Engineering and Soil Mechanics A-1040 Vienna, Karlsplatz 13/221 ZT GmbH Wiener Straße 66-72/15/4 A-2345 Brunn am Gebirge John Loudon McAdam ( ) Budapest, 21. november First American Macadam Road (State of Marylande) 1

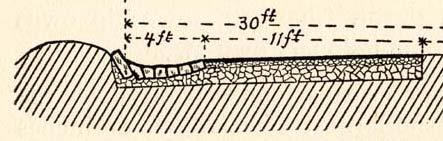

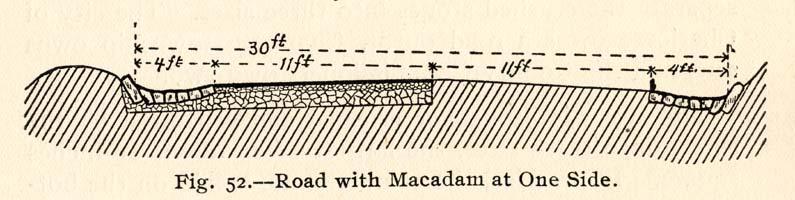

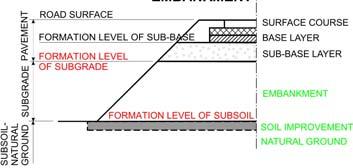

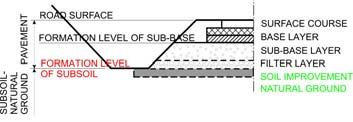

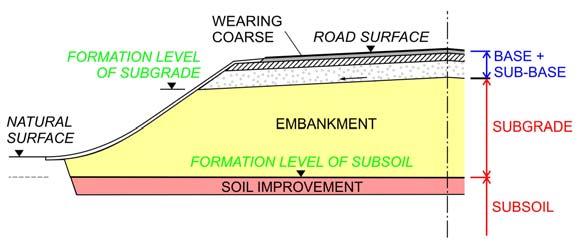

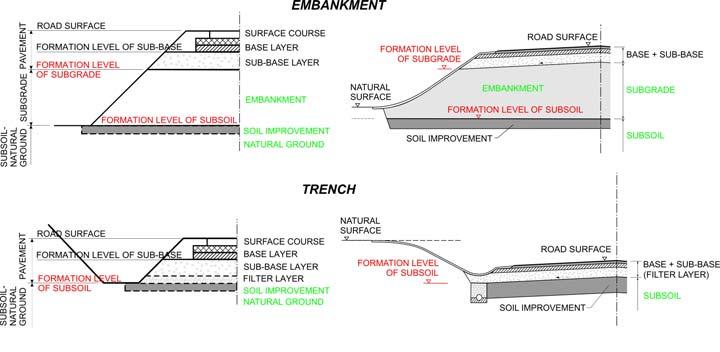

2 [RVS 8.24] Earthworks RVS [draft] Earthworks under Traffic Routes earthworks (substructure) Budapest, 21. november Cross Section Definitions and Standards RVS [8S.05.11]: base and sub-base layer RVS [8S.05.12]: mechanical stabilized base / sub-base layer RVS [8S.05.13]: with binder stabilized base / sub-base layer PAVEMENT WORKS (without wearing course) EARTH WORKS RVS [draft] [8.24] ÖNORM B 4417: static load plate test RVS : compaction control with the dynamic load plate (LFWD) RVS [8S.02.06]: continuous compaction control (CCC) Budapest, 21. november

3 Traffic Route Requirements strength & stability + serviceability + durability COMPACTION Budapest, 21. november Methods of Ground / Fill Improvement Ground COMPACTION Ground REPLACEMENT MECHANICAL Improvement Ground REINFORCEMENT Ground STABILIZATION DEEP IMPROVE- MENT OF SUBSOIL surface-near compaction soil excavation and soil exchange Mixing in suitable granular material to improve poorly graded materials (SP, GP), fine materials (silty or clayey) or soft soils reinforcement with geotextiles: in combination with soil replacement to reduce excavation depth stabilization with lime (ÖN EN ), cement (ÖN EN ), clinker (ÖN EN ), hydraulic binder (ÖN EN ), fly ash (ÖN EN ) surcharging and preloading vertical drains deep vibro compaction (RSV/RDV) Deep Dynamic Compaction (DYNIV) pile foundation Budapest, 21. november

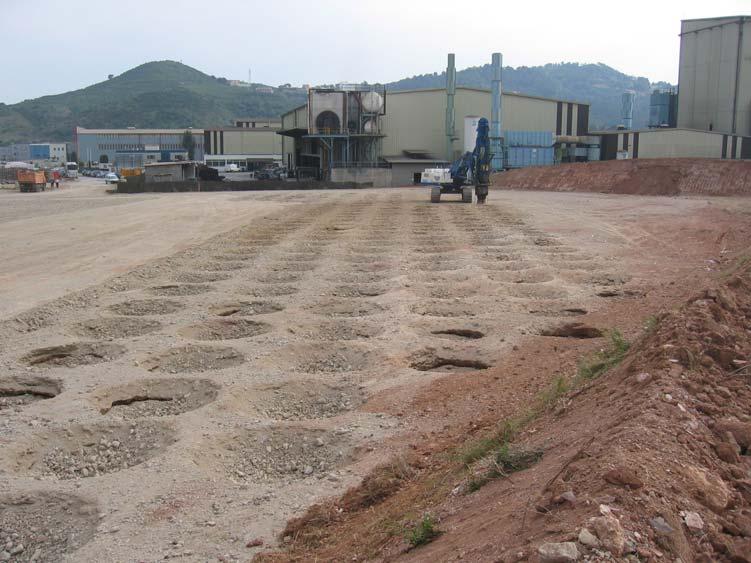

4 Surface-near and Deep Ground Improvement Dynamic roller compaction vibratory, oscillatory, VARIO, automatically controlled rollers Heavy Dynamic Tamping HARMONIC PERIODIC Deep vibro compaction vibro compaction, vibro replacement, grouted stone/gravel columns Rapid Impact Compactor TRANSIENT Budapest, 21. november Compaction Depth Comparison of Techniques Static Dynamic Rolling Rolling 0.2 m 0.5 m 0.4 m 1.0 m R I C Heavy Dynamic Tamping 4.5 m 6.5 m 10 m 14 m normal range possible range Budapest, 21. november

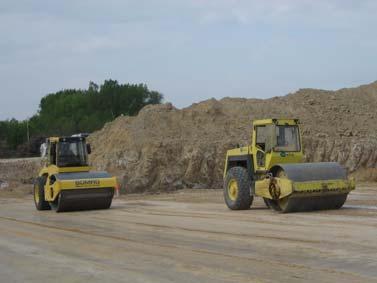

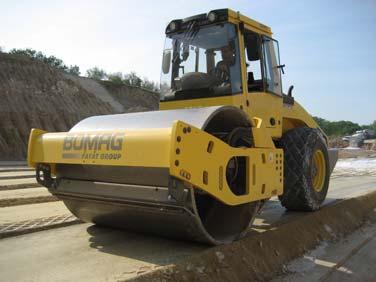

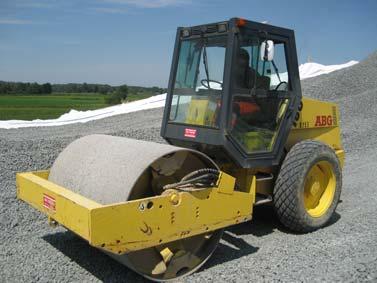

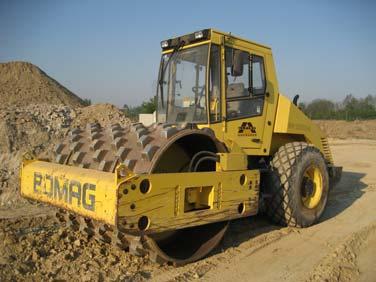

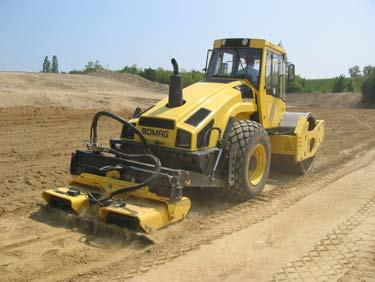

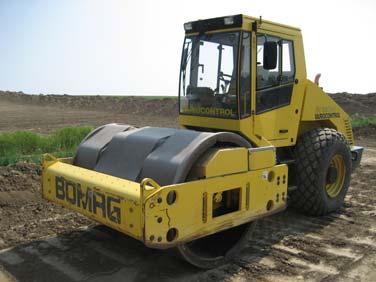

5 Dynamic roller compaction Budapest, 21. november Budapest, 21. november Continuous Compaction Control (CCC) 5

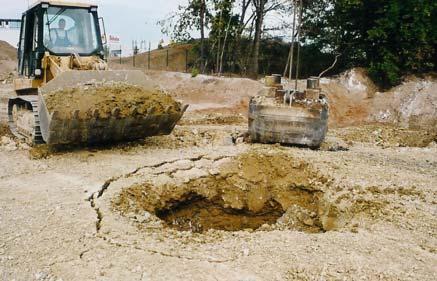

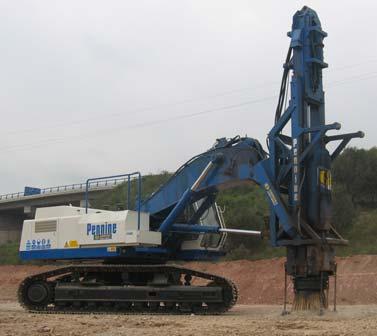

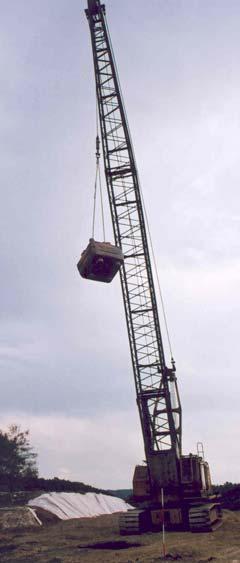

6 Deep Dynamic Compaction (Heavy Tamping) Budapest, 21. november Rapid Impact Compactor (RIC) Budapest, 21. november

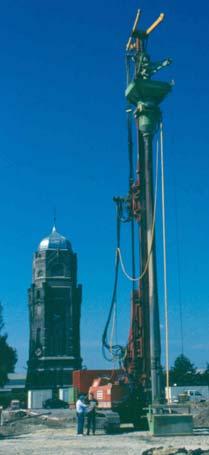

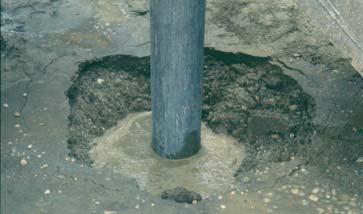

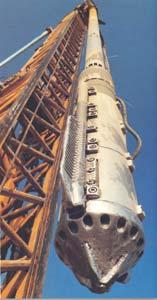

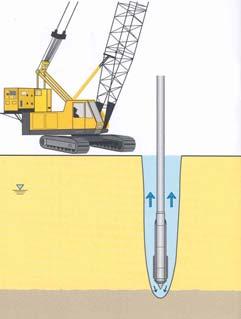

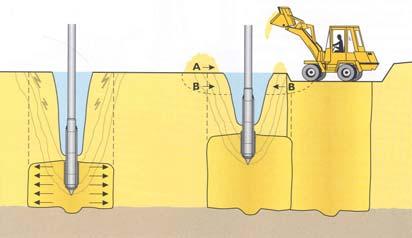

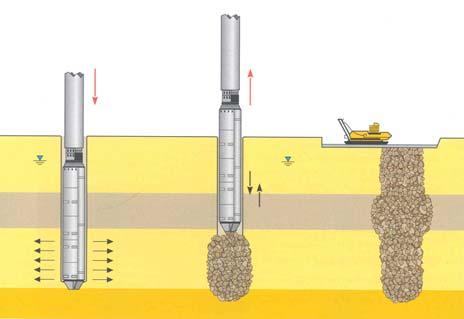

7 Deep Vibro Compaction in Granular Material Vibro Compaction densification and homogenization of granular soil crater around the vibrator Compaction by horizontal vibration effect Penetration of vibrator into soil with pressurized water jet compacted and homogenized granular soil Budapest, 21. november Deep Vibro Replacement of Cohesive Soils Penetration of bottom feed vibrator Stone / gravel column formation by repenetration of vibrator soft layer very soft layer soft layer Vibro Replacement formation of stone / gravel columns and lateral densification of soft soil grouted material oder concrete Budapest, 21. november

8 B A S E S U B B A S E E M B A N K M E N T rock fill sand and gravel silt and silty clays clay Budapest, 21. november Classification of Soil Types by Grain Size 200 mm COARSE-GRAINED / GRANULAR PARTICLES (non cohesive) 63 mm 2 mm sieve analysis Boulders Cobbles Gravel Sand border line between sand and silt: d = mm FINE-GRAINED (cohesive) Silt hydrometer analysis (sedimentation) mm Clay Budapest, 21. november

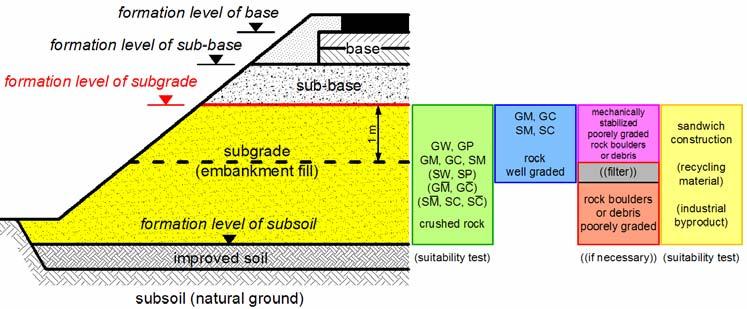

9 Material for Embankments ÖNORM B 4400 For the suitability of embankment materials the state at the time of emplacement is decisive! Guidelines for Recycling Materials E.g.: Jet Grouting return flow = recycled, light aggregates ÖNORM EN , ; ÖNORM B 3137 suitability test (laboratory) + test / calibration field Budapest, 21. november Embankment Materials SC 60 < 60 GP GP GC SP SP SM GW 5 15 GM SW 5 Budapest, 21. november

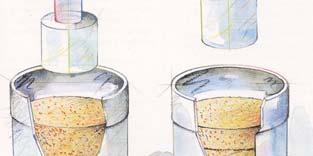

10 Relationship Water Content Dry Density ρ d [g/cm 3 ] dry density [g/cm 3 ] ρ s ρ ρ d = = s 1 + wρ s S r ρ w S r = 0 (1-n a )ρ s 1 + wρ s ρ w S r = 1,0 n a = 0 Proctor curves w [%] ρ d w n n a = 1,0 Budapest, 21. november ρ modpr Proctor Test Standard Modified Proctor Test ρ Pr Sr = 1,0 Proctor mould Ø150 mm falling height 450 mm falling weight 4.5 kg 22 blows/layer 59 3 layers 5 Sr = 0,7 w modpr w Pr 0,6 energy [MJ/m³] 2,65 modρ Pr = 1,03 1,15ρ Pr Budapest, 21. november

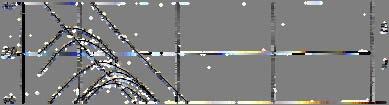

11 Proctor Curves of Differnet Types of Soils S G G, s FINE GRAINED MATERIALS C C, m; M M, s, g COARSE GRAINED MATERIALS Budapest, 21. november Compaction Control Spot Testing Methods D I R E C T I N D I R E C T DENSITY STIFFNESS in-situ replacement methods (sand, water, balloon), nuclear gauge probe laboratory Proctor Test California Bearing Ratio (CBR) load plate test Benkelman Beam dry density ρ d Standard Proctor density ρ Pr DEFORMATION MODULUS static dynamic COMPACTION DEGREE ρ d D Pr = 100 [%] ρ Pr E v1, E v2, E v2 /E v1 E vd Budapest, 21. november

12 Determination of Density in Field Sand replacement Tube sampling Nuclear gauge method (Troxler probe) Budapest, 21. november Compaction Control Spot Testing Methods D I R E C T I N D I R E C T DENSITY STIFFNESS replacement methods (sand, water, balloon), nuclear gauge probe Proctor Test California Bearing Ratio (CBR) load plate test Benkelman Beam dry density ρ d Standard Proctor density ρ Pr DEFORMATION MODULUS static dynamic COMPACTION DEGREE ρ d D Pr = 100 [%] ρ Pr E v1, E v2, E v2 /E v1 E vd Budapest, 21. november

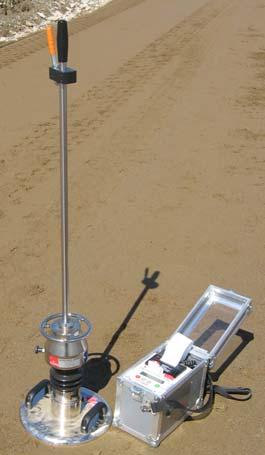

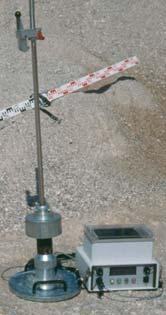

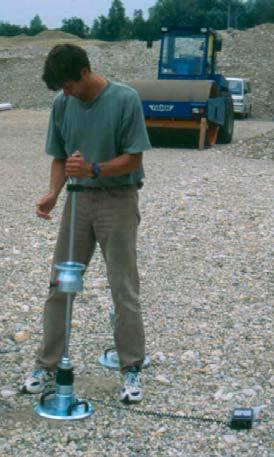

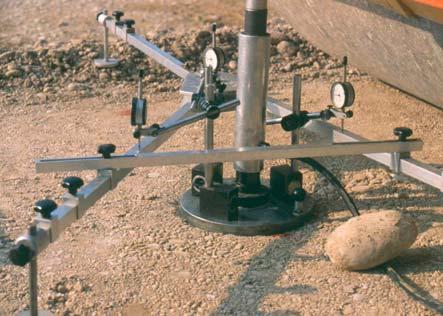

13 Compaction Control Methods using Load Plate Tests determination of deformation modulus checking of compaction quality and material stiffness counter weight for earth works and road construction measurement of plate displacement device with 3 gauges Static load plate test Dynamic load plate test with the Light Falling Weight Device F load plate 300mm Δσ hydraulic jack gauge F(t) notching attachment guide rod falling weight spring-damperelement measurement of acceleration electronic measuring device σ(t) load plate 300mm ÖIAV Erdbebenseminar, 6. September 2007 Dietmar : Erdbeben Interaktion Boden und Bauwerk 25 Dynamic Load Plate Light Falling Weight Device notching attachment handle Design of device: falling weight spring-damper element sphere load plate with sensor guide rod electronic measuring device loading device - falling weight - guide rod - spring-damper element loading plate deflection measuring device Weingart 1977 Budapest, 21. november

14 Standardized Test Evaluation Δt determination of moduli Δσ E v = 1.5 r Δz σconst Evd = 1.5 r z E [MN/ m²] max vd = 22.5 z [mm] max Budapest, 21. november Research Results Standardization RVS Requirements on the device: + tuning of the device parameters + set of disc springs made of steel synthetic spring (!) + exactly defined requirements on the deflection measuring device + calibration at least once a year Standardized test execution and test evaluation: + measuring range E vd = 7,5-90 MN/m² + 3 pre-loading impacts and 3 measuring impacts + assumption of a constant maximum ground contact force (max F) + simplified determination of the dynamic deformation modulus (E vd ) + measuring depth (2 x plate diameter), lateral angle of influence (40 ) ~ ratio s/v as criterion for the compaction quality direct correlation with values obtained by static load plate tests Budapest, 21. november

15 Check of the required E v1 with the LFWD E = E req E v1 no 6 5 vd E v 1 calibration factor of device vd m = E vd RVS [draft] [8.24] < 25 MN/m 2 no yes cohesive material ~ Δ% yes RVS [draft] ~ Δ%( Evd ) ( 1+ ) 100 E 4 E vd = 10 + Ev 5 RVS vd 1 Faktor 1 E v1 E vd ref E vd ref E vd E vd [MN/m²] [MN/m²] [MN/m²] [MN/m²] [MN/m²] nichtbindig bindig nichtbindig bindig 0, ,0 10,0 2, ,0 12,0 5, ,0 14,0 7, ,0 16,0 10, ,0 18,1 12, ,0 20,1 18,1 22,2 SAMPLE Muster 15, , ,1 24,2 20, ,2 26,3 22, ,3 28,4 25, ,5 30,5 27, ,6 30, ,7 32, ,8 35, ,9 37, ,0 40, ,2 42, ,4 45, ,5 47, ,7 50, ,9 52, ,1 55, ,4 57, ,6 60, ,9 62, ,1 65, ,4 67, ,7 70, ,0 72, ,3 75, ,7 77, ,0 80, ,4 82, ,8 85, ,2 87, ,6 90, ,0 92, , ,5 88 HMP , Abweichung in % = [ -0, (Evd * 0, ) + (Evd² * 0, ) ] Evd-Faktor= MW / 7070 = 1,00873 calibration limit Budapest, 21. november Selection of Compaction Control Method (RVS [draft]) 1. Dynamic Load Plate Test (LFWD) E vd or 2. Static Load Plate Test E v1 or 3. Compaction degree D Pr : Standards RVS ÖNORM B 4417 determination of Proctor density ρ Pr + determination of density in field ρ d 3.1 sand replacement 3.2 water replacement 3.3 nuclear gauge probe 4. Continuous Compaction Control (CCC) other control methods: Benkelman Beam dynamic penetration tests (e.g. DPH) levelling when area of subgrade level 30,000 m² ÖNORM B DIN Bulletin FGSV ÖNORM B 4418 RVS Bulletin FGSV ÖNORM B B 4419 Budapest, 21. november

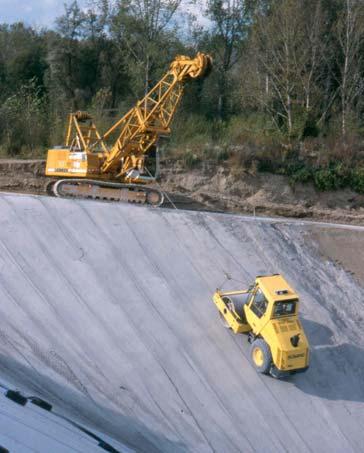

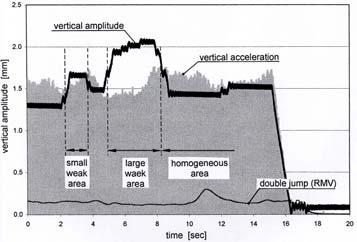

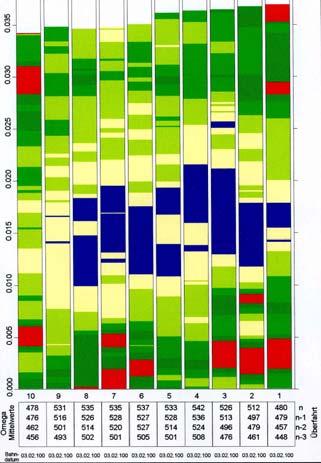

16 Continuous Compaction Control (CCC) Drum acceleration Quality management system Continuous Compaction Control (CCC) Roller-integrated and continuous on-line - control of compaction progress - Optimization of compaction procedure - Self-control - Acceptance testing GPS-supported positioning! Budapest, 21. november Automatically Controlled Compaction recordings automatic inclination of exciter unit Budapest, 21. november

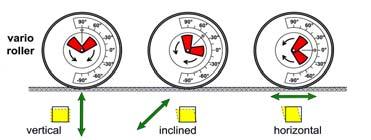

17 Operating Modes of Vibratory Roller Drums drum motion Interaction drum-soil operating condition soil contact force application of CCC soil stiffness roller speed drum amplitude continuous contact CONT. CONTACT yes low fast small periodic periodic loss of contact PARTIAL UPLIFT DOUBLE JUMP ROCKING MOTION left right yes yes no chaotic non-periodic loss of contact CHAOTIC MOTION no high slow large Budapest, 21. november Compactometer CMV is based on the evaluation of the acceleration in the frequency domain Terrameter OMEGA is based on the evaluation of the energy transmitted to the soil in the time domain Terrameter E VIB inclination of the soil contact force displacement relationship during loading; time domain CCCsystems ACE k B derived from the soil contact force displacement relationship at maximum drum deflection; time domain Budapest, 21. november

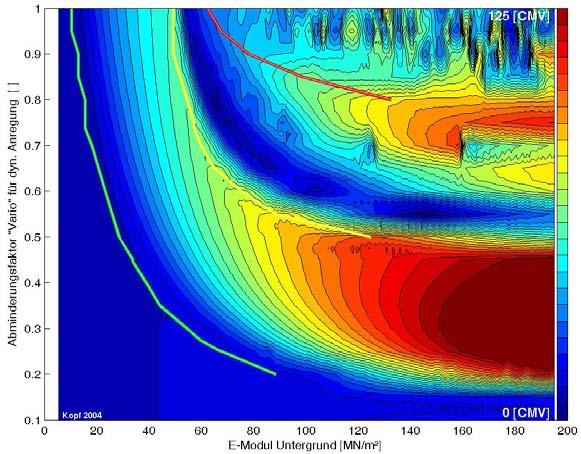

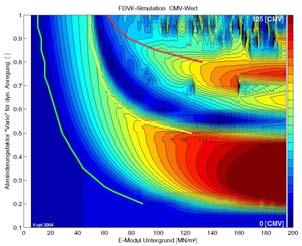

18 CCC-values CMV, OMEGA, E vib, k B 100 % CCC-VALUES CCC-VALUES [% OF MAX. VALUE] 90 % 80 % 70 % 60 % 50 % 40 % 30 % 20 % 10 % 0 % CONT. CONTACT CMV OMEGA Evib kb PARTIAL UPLIFT DOUBLE JUMP E - MODULUS SOIL [MN/m²] Budapest, 21. november CMV in Dependence of the Operating Conditions large amplitude rocking motion, chaotic double jump partial uplift small amplitude contact 28 Hz soft soil stiff soil Budapest, 21. november

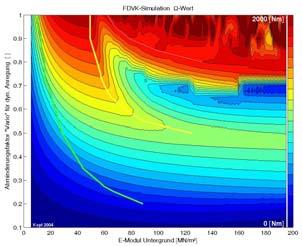

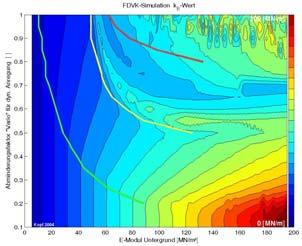

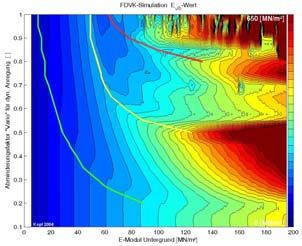

19 Comparison of Different CCC-Values rocking motion, chaotic rocking motion, chaotic CMV partial uplift double jump OMEGA double jump partial uplift contact contact rocking motion, chaotic rocking motion, chaotic E vib double jump partial uplift k B double jump 28 Hz partial uplift contact contact Budapest, 21. november Earth Work RVS [draft] [8.24] + Budapest, 21. november

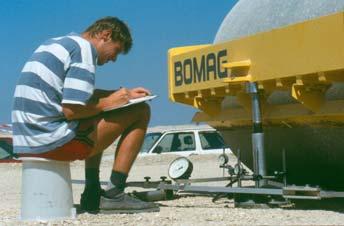

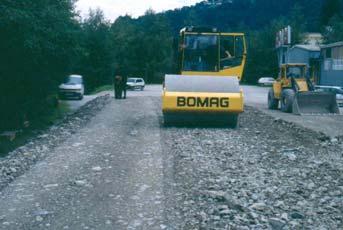

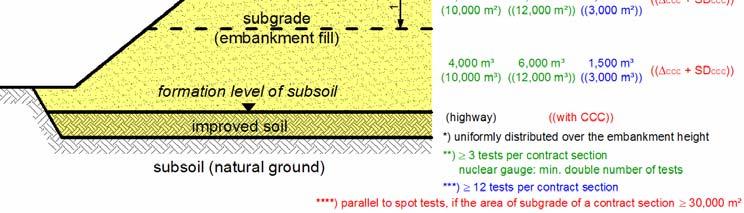

20 test site Continuous Compaction Control (CCC) test compaction calibration H = 25 m static load plate test Länge der Dammkrone 170 m Calibration of CCC-values Determination of a clear correlation between soil stiffness and CCC-values Budapest, 21. november Test site to be situated on typical area within construction site Calibration of CCC-values CCC-values Static load plate 9 tests Dynamic load plate 36 tests (4 x 9) CCC-VALUE [ ] Layer thickness and different depth effects have to be taken into account! high values mean values CCC-VALUE low 40 values r > 0,7 20 Determination of regression line Ev1, Ev2, Evd [MN/m²] Budapest, 21. november

21 CCC-VALUE [ ] Calibration of CCC-values Determination of limit values According to Austrian guidelines and regulations RVS S.02.6 SD CCC STANDARD DEVIATION < 20% Δ CCC INCREASE < 5% MAX 50% MV MV double jump MIN 20% 0,8 MIN r > 0, % - 5% 20 limit E V -value Ev1, Ev2, Evd [MN/m²] Budapest, 21. november Continuous Compaction Control (CCC) CCC VALUE [CMV, OMEGA, Evib] Δ CCC < 5% REPRODUCEABILITY UNIFORMITY MAX MAXIMUM VALUE MV MEAN VALUE CALIBRATION MIN MINIMUM VALUE 0,8MIN 80% MINIMUM VALUE SD CCC STANDARD DEVIATION < 20% ROLLER LANE [m] Budapest, 21. november

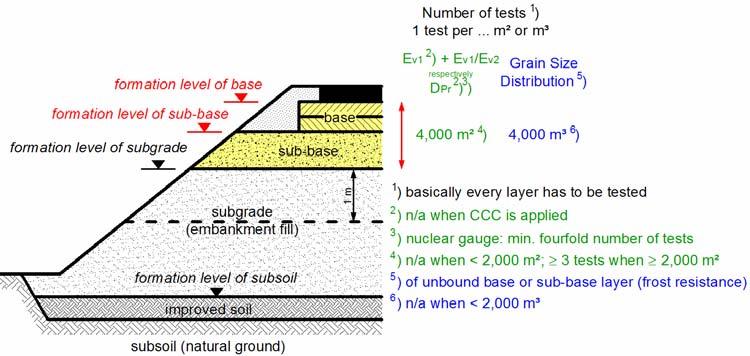

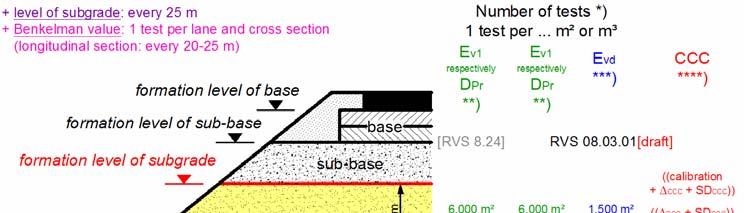

22 Acceptance Test ( Identitäts-[Abnahme-]Prüfung ) subgrade (RVS [draft] [8.24]) Budapest, 21. november Acceptance Test ( Identitäts-[Abnahme-]Prüfung ) base and sub-base (RVS [8S.05.11]) Budapest, 21. november

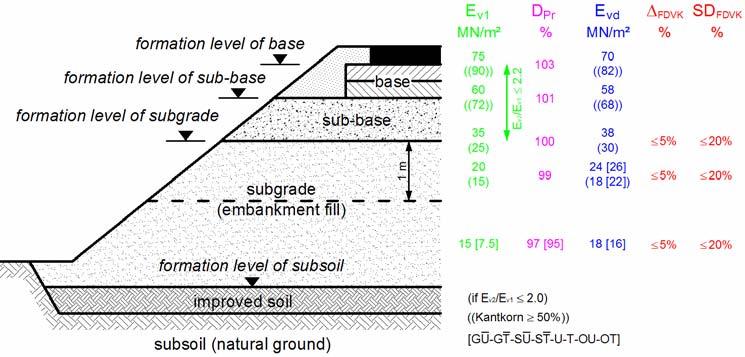

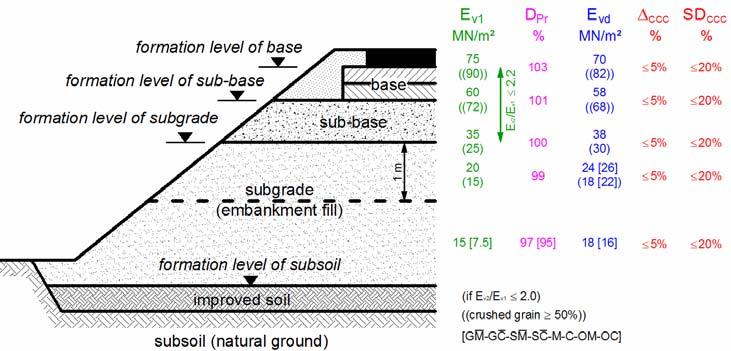

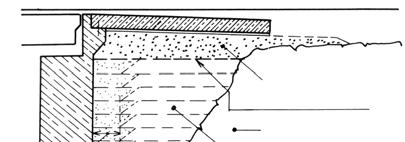

23 gravel filter GW-GP SW-SP GM-GC SM-SC D Pr = 101%, E v1 60 MN/m², E vd 58 MN/m² D Pr = 100%, E v1 35 MN/m², E vd 38 MN/m² frost protection layer (RVS [8S.05.11]) level of subgrade natural soil backfill material + compaction acc. to RVS [8B.04.01] Backfill track in cut drainage frost protection layer level of subgrade backfill Backfill of bridge abutments subgrade RVS [draft] [8.24] embankment fill base + sub-base RVS [8S.05.11] RVS [3.63] Backfill track in fill natural D. Adam: soil Földművek tervezése, minőségbiztosítása és monitoringja Ausztriában Budapest, 21. november roller compaction drum types Continuous Compaction Control calibration of CCC-values dynamic load plate (LFWD) high values CCC-VALUE [ ] MAX 100 mean 80 MV MV double jump values MIN 60 0,8 MIN low MAX = 103,74 values MW = 80,44 40 MIN = 69,16 + 5% - 5% 0,8 MIN = 55,33 20 r = 0,87 limit E V1-value: 35 MN/m² Ev1, Ev2, Evd [MN/m²] 23

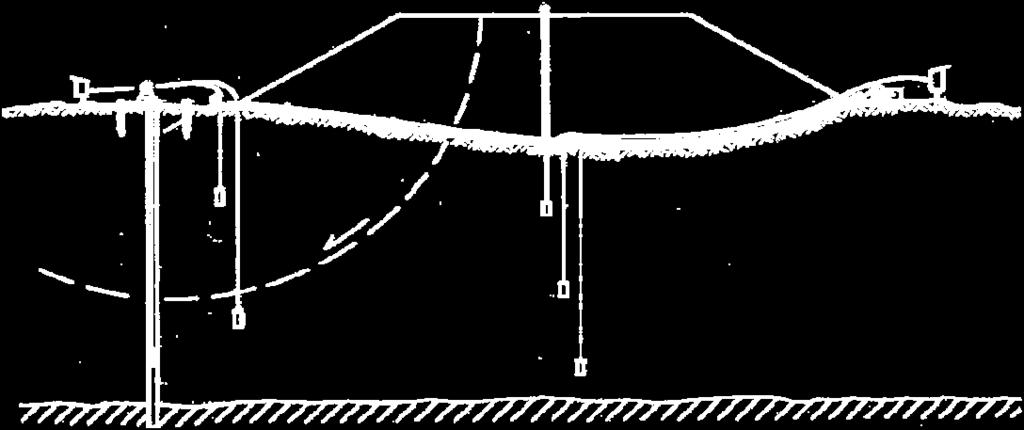

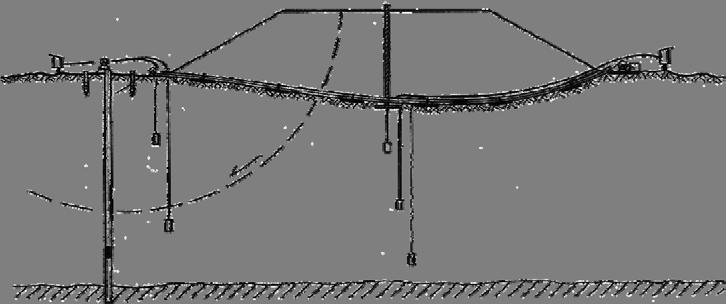

24 Embankment on Soft Soil Measurement of Deformations settlement column gauge mark horizontal inclinometer gauge mark gauge mark vertical inclinometer piezometer soft soil stiff soil / bedrock Budapest, 21. november p ξ = [kn/m²] s m a p p max ξ interpolated time-settlement curve s regression line Prediction of Final Settlement Sherif (1973) t ξ s 1 measured settlements b p max time-load curve time [d] extrapolated final settlement s t= ÖNORM B measurement of settlements s documentation of load history p assumption: hyperbolic function for settlement curve t s( t) = ξ a + bt dimensionless parameter ξ ξ = adaption of settlement curve to the load history transformation: p p max t s ξ s t d ξ s cm regression line: a + b.t extrapolation: s t= Budapest, = 1/b 21. november

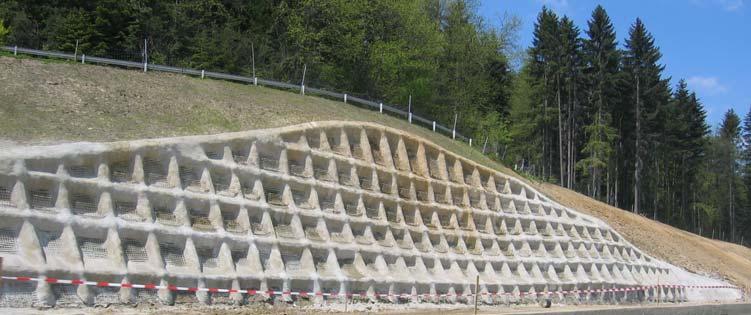

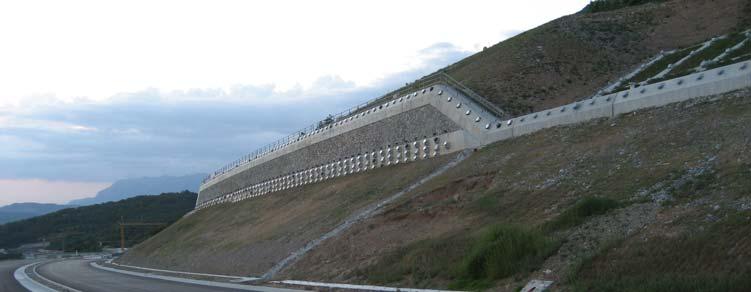

25 Monitoring of Slope Deformations extensometer in borehole inclinometer gauge - lateral inclination - axial incremental displacement deflectometer multiple rod extensometer anchor force measurement Budapest, 21. november Budapest, 21. november

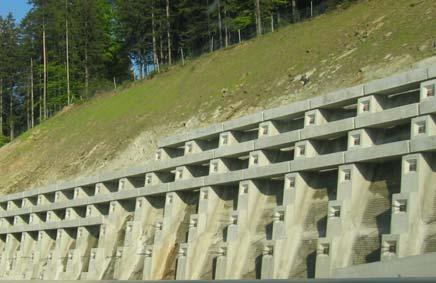

26 Budapest, 21. november Budapest, 21. november

27 RVS 8.24 Budapest, 21. november RVS 8.24 RVS CUT!!! Budapest, 21. november

28 Methods of Ground Improvement Ground REPLACEMENT Ground COMPACTION Ground CEMENTATION soil excavation and soil exchange surface-near compaction, deep vibro compaction, heavy dynamic tamping, Rapid Impact Compaction soil stabilization with cement and lime, grouting, jet grouting, soil freezing MECHANICAL Ground Improvement Ground DRAINAGE vertical drains, vacuum consolidation, surcharging and preloading Ground REINFORCEMENT reinforcement, cell structures Budapest, 21. november Technical Testing Standard TP BF - StB part B 8.3 Dynamic load plate test with the Light Falling Weight Device (LFWD) 1. Application range E vd = MN/m² Testing of bearing capacity and compaction quality of soils and unbound base layers in earth works and construction of traffic systems 2. Terms 3. Devices dimensions, masses, measurement data acquisition, tolerances 4. Testing conditions soil characteristics and inclination of testing surface 5. Test execution 3 pre-loading impacts + 3 measuring impacts 6. Test report and evaluation 7. Calibration of the device carried out by a certified institute (at least once a year) loading device adjustment of falling height + possibly spring prestressing displacement measuring device Budapest, 21. november

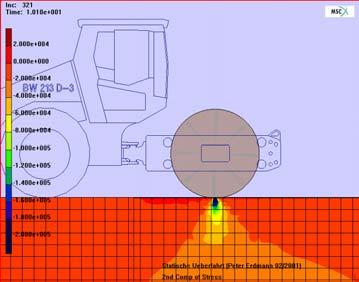

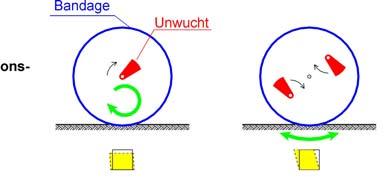

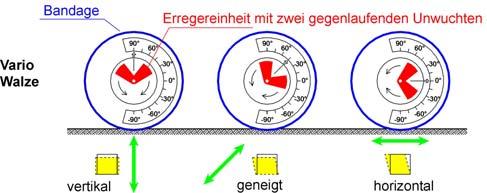

29 Oberflächenverdichtung mit Walzen statische Walzen dynamische Walzen 2.1 Vibrationswalze 2.2 Oszillationswalze 2.3 Walze mit Richtschwinger 2.4 automatisch geregelte Walzen (VARIOCONTROL, VARIOMATIC, ACE) 2.4 Technische Universität Wien Institut für Grundbau und Bodenmechanik VÖBU-Veranstaltung Vom Ziegelschutt zur Tiefenverdichtung, 8. November 2005 D. Adam & I. Paulmichl: Bodenphysikalische Grundlagen der Bodenverbesserung static vibration vertical stresses oscillation horizontal 29

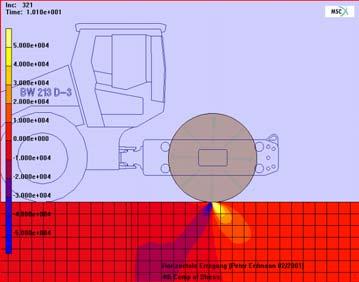

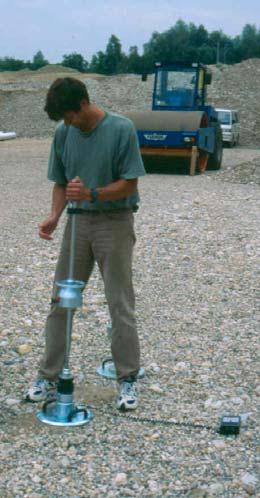

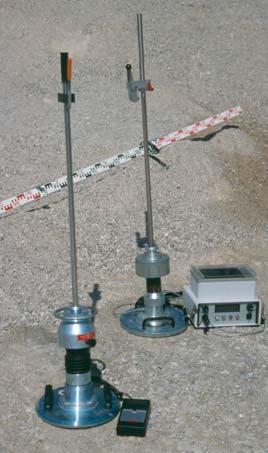

30 static vibration shear stresses oscillation horizontal Compaction Control Methods using Load Plate Tests determination of deformation modulus checking of compaction quality and bearing capacity for earth works and road construction counter weight falling weight measurement of plate displacement F hydraulic jack F(t) load plate measurement electronic of acceleration device device with 3 gauges q load plate gauge static load plate test dynamic load plate test Budapest, 21. november

31 Dynamic Load Plate Light Falling Weight Device Weingart 1977 Budapest, 21. november CCC-value E vib time domain Bodenkontaktkraft F 90% ΔF bei Sprungbetrieb 100% 40% Belastung Δz1 ΔF Δz1 Entlastung Schwingweg z1 ΔF Evib 2 a π = 3 Δz1 2 π (2 a) Evib 2 (1 ν ) 2,14 + 0,5 ln( 2 (1 ν ) 16 ( mb + me + mr ) g ( d / ) 2) Budapest, 21. november

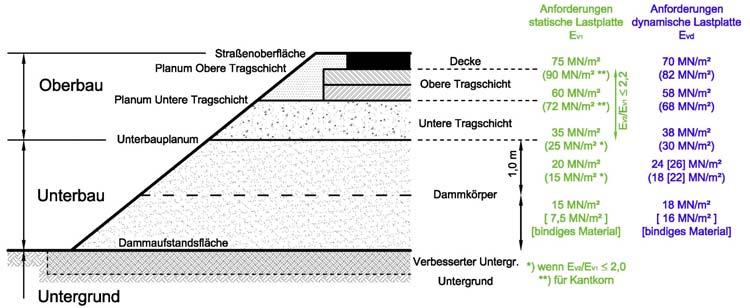

32 CCC-value k B time domain Schwingweg z1 Erregerkraft max Ferr Ferr=(me.e.ω²).sin(ω.t).Vario π 2π 3π 4π ω.t ϕ max z1 2.A(z1) k B 2 = ω ( mb ( m + m ) + e contact e e Vario) cos( ϕ) A ( z1 ) Bodenkontaktkraft F bei Sprungbetrieb Fmax 2.A(z1) Belastung F(z1=0) Entlastung k B F = loss of contact m ( z& 1 = 0) ( b + e + r ) A m ( z1 ) m g Schwingweg z1 Budapest, 21. november Earth Work RVS (RVS 8.24) revision Budapest, 21. november

33 Earth Work RVS [draft] [8.24] + Budapest, 21. november Acceptance Test ( Identitäts- [Abnahme-] Prüfung ) Budapest, 21. november
