Ákos Horváth Gábor Bergmann Dániel Varró István Ráth Model Driven Software Development Lecture 3

Átírás

1 Domain-specific modeling (and the Eclipse Modeling Framework) Ákos Horváth Gábor Bergmann Dániel Varró István Ráth Model Driven Software Development Lecture 3 Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

2 OVERVIEW Metamodeling and Domain Specific Modeling

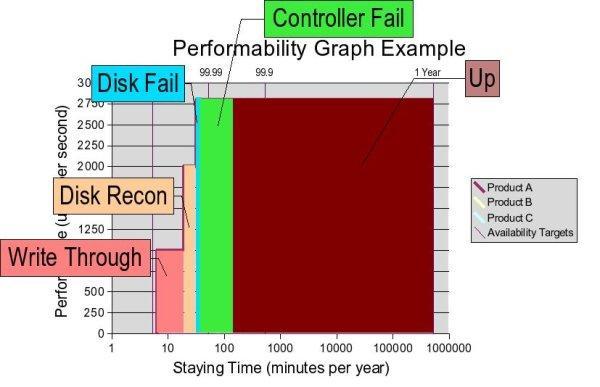

3 Domain specific modeling languages Business analyst Business process System designer Dependability expert Dependability model Risk model Security expert Software developer Programming language Software model Metamodeling and Domain Specific Modeling Software architect

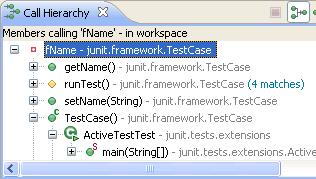

4 Concrete syntax Usage example of DSMs Abstract syntax Well-formedness constraints Behavioural semantics, simulation, refactoring Call graph (view) Metamodeling and Domain Specific Modeling State machines (different DSM)

5 Graphical syntax Structure of DSMs Abstract syntax Well-formedness constraints Behavioural semantics, simulation, refactoring Mapping Code generation Textual syntax View Code (documentation, configuration) Metamodeling and Domain Specific Modeling

6 Aspects of Defining DSMLs Abstract syntax Collaborate Wellformedness constraints DSML Views translations mappings Concrete syntax Behavioural (dynamic) semantics Metamodeling and Domain Specific Modeling

7 Role of EMF/Ecore technology in DSL GMF, Graphiti, EuGENia, Sirius, Spray, Xtext, Edit Goal: Provide common base for advanced DSL tools Consistent model manipulation Persist models Tree based editor EMF Compare EMF Store, CDO, Collaborate EMF modeling core Process & View Acceleo, ATL, Epsilon, IncQuery, QVT, Xtend, Metamodeling and Domain Specific Modeling

8 DOMAIN SPECIFIC MODELING Metamodeling and Domain Specific Modeling

9 Designing modeling languages Language design checklist o Abstract syntax (metamodel) Taxonomy and relationships of model elements Well-formedness rules o Semantics (does not strictly belong to a language) Static Behavioural o??? o Concrete syntax Textual notation Visual notation Metamodeling and Domain Specific Modeling

10 Revisiting the example Generalization Automaton initial states transitions Association Instantiation Meta (Language) level AccState State from color:{r,g,b} to Metamodel Transition Class Attribute (Instance) Model level Object Link fr t3 ini to s1 st st a1 s3 fr tr st tr to t1 s2 t2 to fr Model in abstract syntax Metamodeling and Domain Specific Modeling

11 Revisiting the example Automaton Meta (Language) level initial states transitions AccState State from Transition color:{r,g,b} to Metamodel Model level fr t3 ini to s1 st st a1 s3 fr tr st tr to t1 s2 t2 to fr a1 s1 t3 t1 s3 s2 t2 Abstract syntax Concrete syntax Metamodeling and Domain Specific Modeling

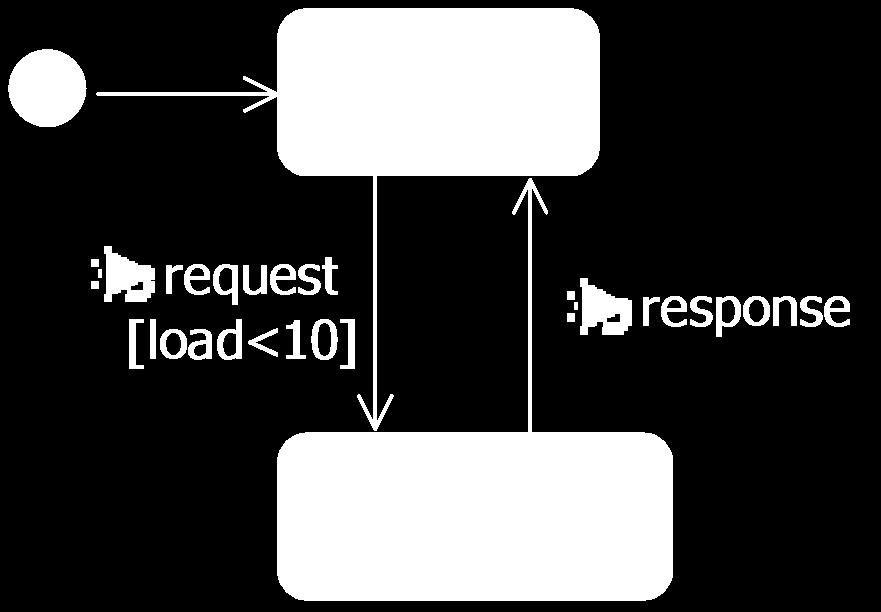

12 Example: Concrete Syntax request() { if (state == "idle" && this.load<10) state = "calculating"; } response() { if (state == "calculating") state = "idle" } Graphical notation Textual notation Metamodeling and Domain Specific Modeling

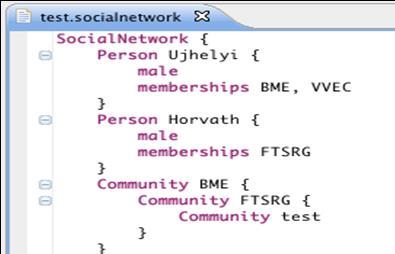

13 Textual notation: Textual vs. Visual + Easy to write: Able to capture complex expressions - Difficult to read: Difficult to comprehend and manage after certain complexity (e.g what refers me?) Visual notation: + Easy to read: Able to express (selected / subset of) details in an intuitive, understandable form + Safe to write: Able to construct syntactically correct models - Difficult to write: graphical editing is slower Metamodeling and Domain Specific Modeling

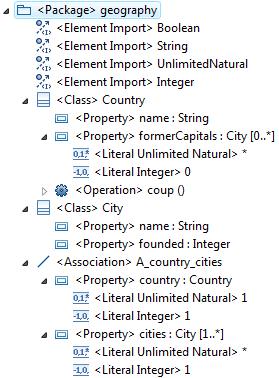

14 Abstract Syntax Example: UML model Graphical notation (Class Diagram) Metamodeling and Domain </packagedelement> Specific Modeling <?xml version="1.0" encoding="utf-8"?> <uml:package name="geography" xmi:version="2.1" xmlns:xmi=" xmlns:uml=" xmi:id="_7qi_as2ued-vcp9iy9gyhg"> [...] <packagedelement xmi:type="uml:class" name="country" xmi <ownedattribute name="name" aggregation="composite" xm <type xmi:type="uml:primitivetype" href="pathmap://u </ownedattribute> <ownedattribute name="formercapitals" aggregation="com <uppervalue value="*" xmi:type="uml:literalunlimited <lowervalue xmi:type="uml:literalinteger" xmi:id="_y </ownedattribute> <ownedoperation name="coup" xmi:id="_fhicec2ved-vcp9iy <ownedparameter direction="return" xmi:id="_le7b8c2v </ownedoperation> </packagedelement> <packagedelement xmi:type="uml:class" name="city" xmi:id <ownedattribute name="name" aggregation="composite" xm <type xmi:type="uml:primitivetype" href="pathmap://u </ownedattribute> <ownedattribute name="founded" aggregation="composite" <type xmi:type="uml:primitivetype" href="pathmap://u </ownedattribute> </packagedelement> <packagedelement xmi:type="uml:association" xmi:id="_xq_ <ownedend name="cities" type=" KgpUC2vEd-VCP9iY9GYHg" <uppervalue value="*" xmi:type="uml:literalunlimited <lowervalue value="1" xmi:type="uml:literalinteger" </ownedend> Textual notation <ownedend name="country" type="_ggassc2ved-vcp9iy9gyhg <uppervalue xmi:type="uml:literalunlimitednatural" (XMI 2.1) x <lowervalue xmi:type="uml:literalinteger" value="1" </ownedend>

15 One-to-many Multiplicity of Notations o 1 abstract syntax many textual and visual notations Human-readable-writable textual or visual syntax Textual syntax for exchange or storage (typically XML) In case of UML, each diagram is only a partial view o 1 abstract model many concrete forms in 1 syntax! Whitespace, diagram layout Comments Syntactic sugar o 1 semantic interpretation many abstract models e.g. UML2 Attribute vs. one-way Association Metamodeling and Domain Specific Modeling

16 METALEVELS Metamodeling and Domain Specific Modeling

17 Metalevels Automaton AccState «instance» initial State states color:{r,g,b} from to transitions Transition Meta relationship between models fr ini t3 to st st s1 a1 s3 tr st tr fr to t1 s2 t2 to fr Clear level separation: o Loses some flexibility Metamodeling and Domain Specific Modeling o Much easier to understand o Usually enough to keep two levels in mind at once

18 Metalevels in MOF OMG s MOF (Meta Object Facility) o 4-layer approach M3 level meta-metamodel MOF Model Fixed: MetaClass, MetaAttr, M2 level metamodel UML Metamodel MetaClass ( Class, MetaAttr ( name )) MetaClass ( Attr, MetaAttr ( name )) M1 level model UML Model Class( Car,Attr( licenseplate )) M0 level data Application Data Car( ABC-123 ), Car( DEF-456 ) o Why exactly four levels? Metamodeling and Domain Specific Modeling

19 Metalevels in other approaches EMF (Eclipse Modeling Framework) meta-metamodel Ecore Fixed: EClass, EAttr metamodel Ecore Model (EPackage) «instance» EClass( Car,EAttr( licenseplate )) model Multi-level metamodeling o VPM o Ontologies Application Data (Resource) «instance» Car( ABC-123 ), Car( DEF-456 ) Metamodeling and Domain Specific Modeling

20 SEMANTICS Metamodeling and Domain Specific Modeling

21 Semantics Semantics: the meaning of concepts in a language o Static: what does a snapshot of a model mean? o Dynamic: how does the model change/evolve/behave? Static Semantics o Interpretation of metamodel elements o Meaning of concepts in the abstract syntax o Formal: mathematical statements about the interpretation E.g. formally defined semantics of OCL Metamodeling and Domain Specific Modeling

22 Dynamic Semantics Operational o Modeling the operational behavior of language concepts o interpreted o e.g. defining how the finite automaton may change state at run-time o Sometimes dynamic features are introduced only for formalizing dynamic sematics Denotational (Translational) o translating concepts in one language to another language (called semantic domain) o compiled o E.g. explaining state machines as Petri-net Metamodeling and Domain Specific Modeling

23 Example: Denotational semantics Automaton Meta (Language) level initial states transitions AccState State from Transition color:{r,g,b} to Metamodel Model level t3 fr to ini st st s1 a1 s3 tr st tr fr to a1 s1 t3 s3 t1 s2 t2 to fr t1 s2 t2 Abstract syntax Semantic Domain Metamodeling and Domain Specific Modeling

24 Example: Operational semantics Dynamic feature Meta (Language) level current AccState Automaton initial states transitions State from Transition color:{r,g,b} to Metamodel (Instance) Model level At first, current = initial fr ini st st s1 a1 s3 tr st tr fr to t1 s2 t2 to fr Metamodeling and Domain Specific Modeling t3 to Model in abstract syntax Possible evolution: current is redirected along a transition

25 Relationship of models scanning and parsing Concrete syntax Abstract syntax layout operational semantics denotational semantics semantic feedback Semantic domain/ Programming language Metamodeling and Domain Specific Modeling

26 DOMAIN-SPECIFIC MODELING LANGUAGES IN ENGINEERING PRACTICE Metamodeling and Domain Specific Modeling

27 Well known DSLs MATLAB, SQL, Erlang, Shell scripts, AWK, Verilog, YACC, R,S, Mathematica, XSLT, XMI, OCL, Template languages, Metamodeling and Domain Specific Modeling

28 Automotive Industry standard DSMLs o AUTOSAR, MATLAB StateFlow, EAST-AADL Aerospace o AADL Railways o UML-MARTE Systems engineering o SysML, UML-FT Metamodeling and Domain Specific Modeling

29 Technologies MATLAB Rational Software Architect Eclipse o EMF, Sirius o Xtext/Xcore/etc. Microsoft o DSL Tools (Visual Studio) MetaCase o MetaEdit+ JetBrains MPS GEMS, GME, ViatraDSM COTS Language engineering (industry) Academia Metamodeling and Domain Specific Modeling

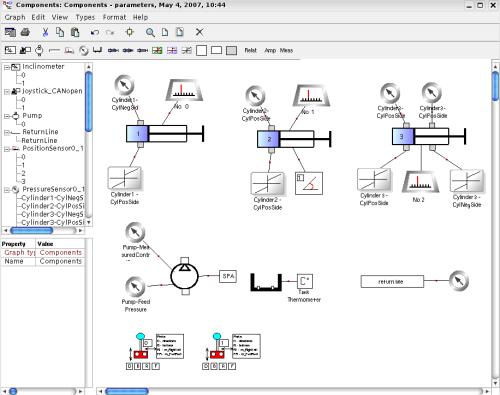

30 MetaEdit+ Metamodeling and Domain Specific Modeling

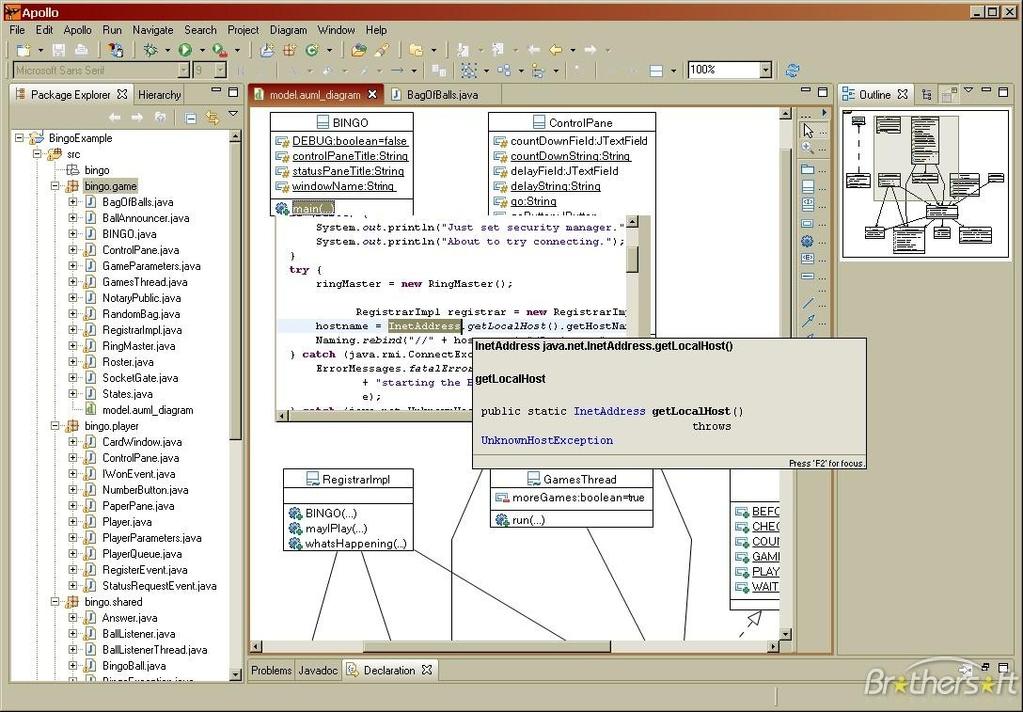

31 Eclipse GMF Metamodeling and Domain Specific Modeling

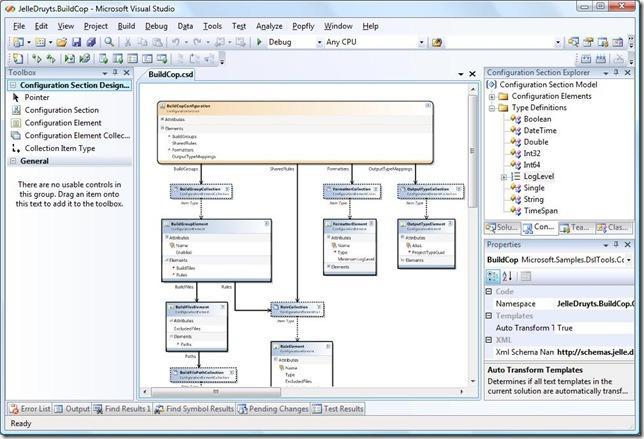

32 Microsoft DSL Tools Metamodeling and Domain Specific Modeling

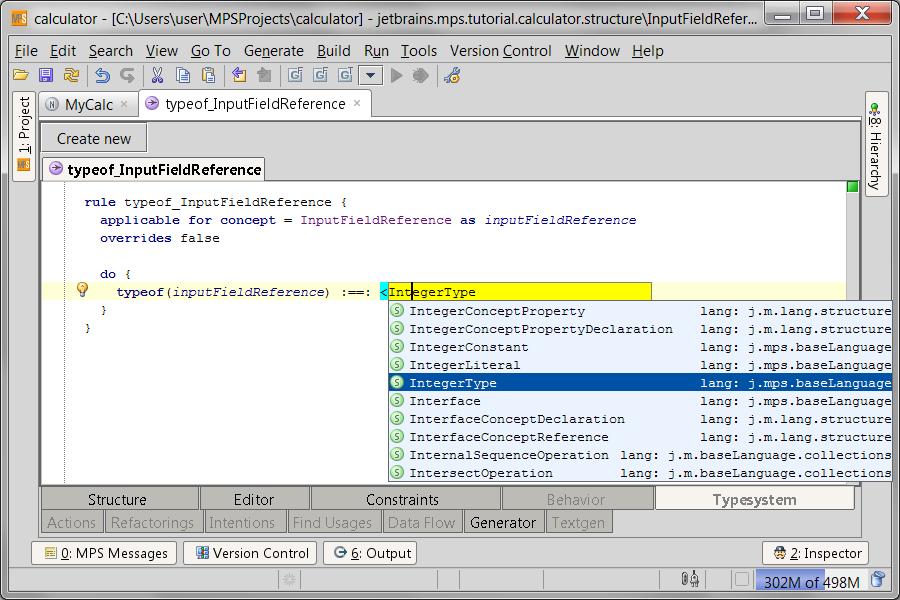

33 MPS Metamodeling and Domain Specific Modeling

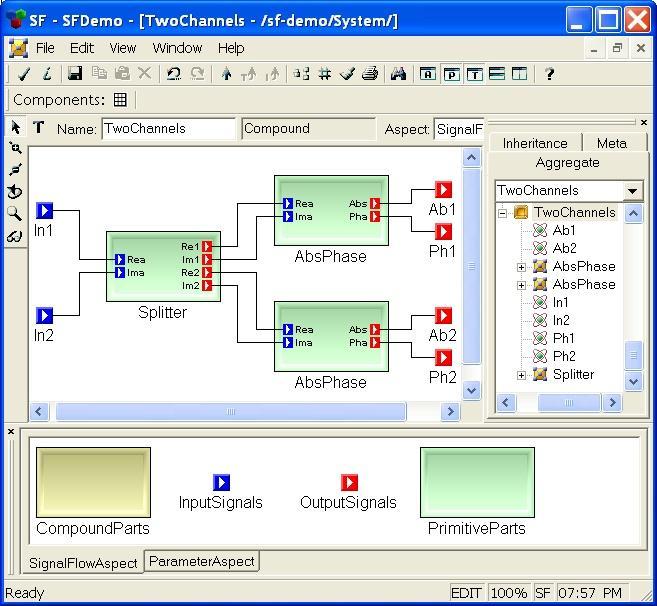

34 GME Metamodeling and Domain Specific Modeling

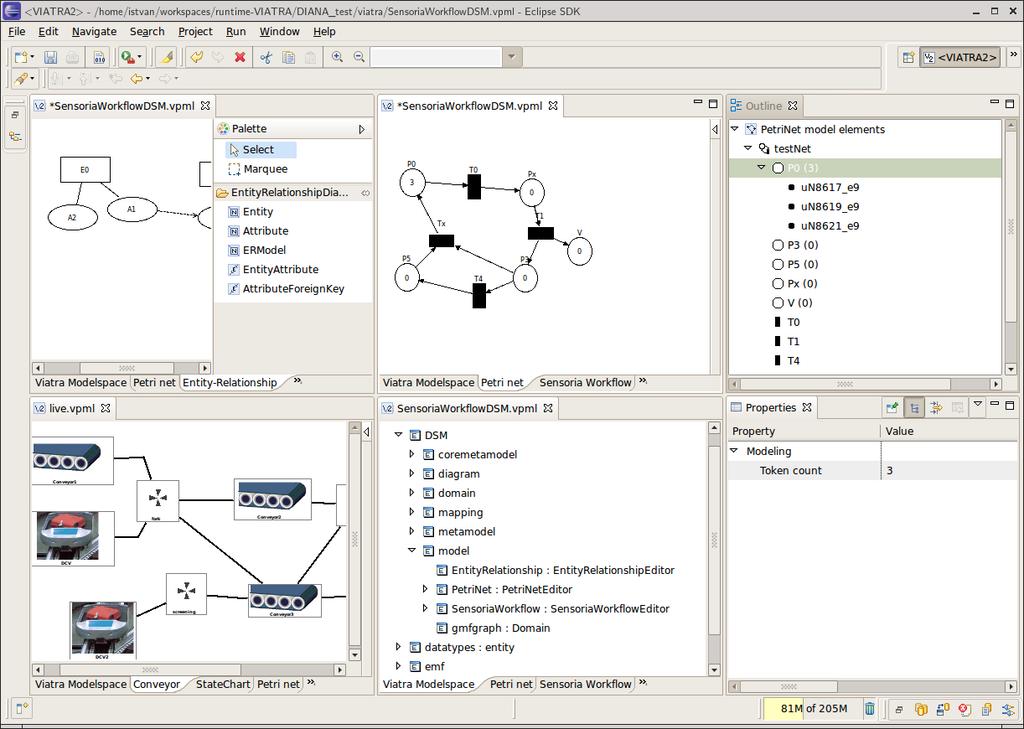

35 ViatraDSM Metamodeling and Domain Specific Modeling

36 Metamodeling Summary of DSMs o Structural, formal definition of domains o Abstract syntax Domain-Specific Modeling o Concrete notations o Syntax known by experts of the field Metalevels o Meta-relationship between models Semantics o Formal dynamic Denotational / Operational Metamodeling and Domain Specific Modeling

37 ECLIPSE MODELING FRAMEWORK Metamodeling and Domain Specific Modeling

38 What does EMF provide? EMF = Eclipse Modeling Framework o Reflective Metamodeling Core (Ecore MOF 2.0) o Support for Domain Specific Languages o Editing Support (Notification, Undo, Commands) o Basic Editor Support o XMI Serialization, DB Persistence o Eclipse Integration Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

39 EMF model structure Containment hierarchy ResourceSet EObject Root object (typically single) EObject EObject EObject EObject Resource EObject Containment reference EObject Cross-reference Resource (typically file) Resource Objects with attributes Metamodeling and Domain Specific Modeling

40 ECORE METAMODELLING Metamodeling and Domain Specific Modeling

41 Core Ecore constructs Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

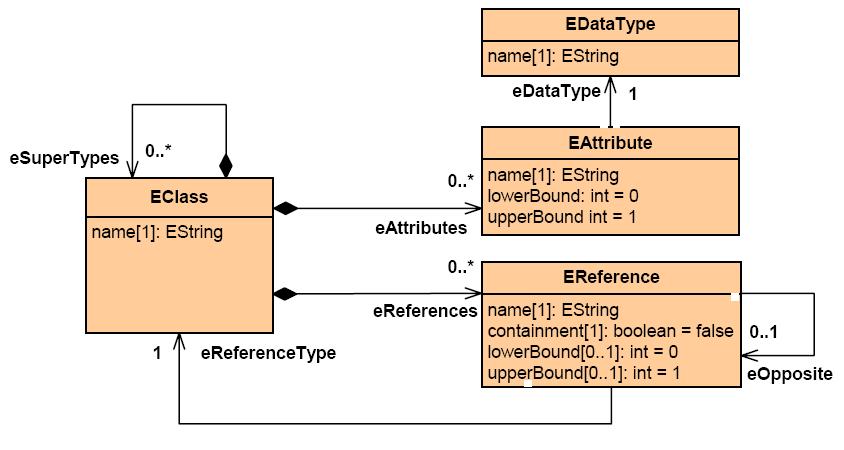

42 Core Ecore constructs Class with arbitrary num. of superclasses associations attributes Typed Attribute Méréstechnika és Információs Rendszerek Tanszék Unidirectional (binary) relation (Association) typed optional inverse end multiplicities Metamodeling and Domain Specific Modeling

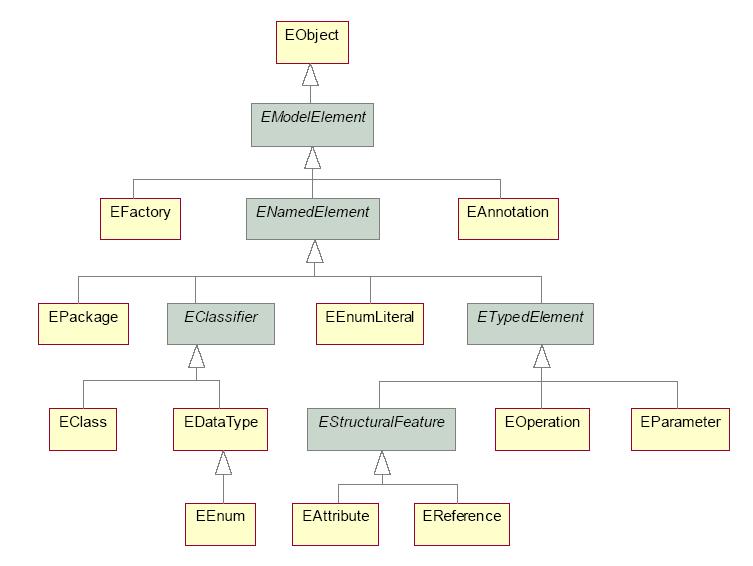

43 Complete Ecore hiearchy Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

44 Complete Ecore hiearchy Abstract Class Aside: EClass deep_instantiates(2) EObject = every EClass instance implicitly subtypes EObject = every instance of every instance of EClass implicitly instantiates EObject Methods connected to the EClasses EMF-based Enums Parameter for the Eoperation Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

45 DEFINING A DSM THE EMF WAY Metamodeling and Domain Specific Modeling

46 The Classical EMF/Ecore Waterfall Design domain metamodel (Questionnaire.ecore) Specify derived features & constraints (OCL, Epsilon, IncQuery, Java) Generate tooling (Questionnaire.genmodel) Edit instance models (Form1.questionnaire) Validate instance models Metamodeling and Domain Specific Modeling

47 The EMF Toolkit Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

48 The EMF Toolkit Metamodel of the Domain / Modeling language Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

49 The EMF Toolkit Mapping of the Ecore model to the impl platform Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

50 The EMF Toolkit Code templates for generating implementation Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

51 The EMF Toolkit Code generation is carried out based upon the generator model code templates Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

52 The EMF Toolkit Core model manipulation and persistence impl. (Java library) Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

53 The EMF Toolkit Displaying EMF objects Command based model manipulation (with undo/redo support) Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

54 The EMF Toolkit Automatically generated tree view editor Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

55 Creation of Ecore metamodels Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

56 Creation of Ecore metamodels UML class diagram Rational Software Architect EclipseUML (Omondo) Borland Together Architect Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

57 Creation of Ecore metamodels An XML schema is the metamodel of an XML document Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

58 Creation of Ecore metamodels Simple programming language for defining Ecore models Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

59 Creation of Ecore metamodels Direct Ecore defining Ecore tree editor Ecore Tools diagram Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

60 Creation of Ecore metamodels Specially annotated Java interfaces, defines the metamodel Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

61 THE PETRI NET EXAMPLE Metamodeling and Domain Specific Modeling

62 Domain Metamodel: Petri Nets Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

63 EMF model Ecore representation Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

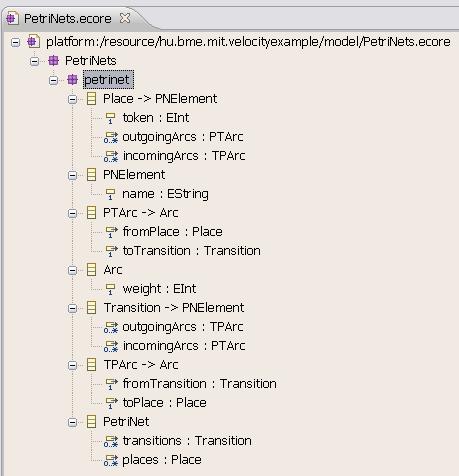

64 EMF model Ecore representation EPackage Path of containing resource Type of EReference EClass Inheritance Type of EAttribute Root element Méréstechnika és Információs Rendszerek Tanszék Reference to all model elements Metamodeling and Domain Specific Modeling

65 Class Definition in PetriNet.ecore <eclassifiers xsi:type="ecore:eclass" name="place" esupertypes="#//petrinet/pnelement"> <estructuralfeatures xsi:type="ecore:eattribute" name="token" lowerbound="1" etype="ecore:edatatype <estructuralfeatures xsi:type="ecore:ereference" name="outgoingarcs" upperbound="-1" etype="#//petrinet/ptarc" containment="true" eopposite="#//petrinet/ptarc/fromplace"/> <estructuralfeatures xsi:type="ecore:ereference" name="incomingarcs" upperbound="-1" etype="#//petrinet/tparc" eopposite="#//petrinet/tparc/toplace"/> </eclassifiers> Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

66 Class Definition in PetriNet.ecore <eclassifiers xsi:type="ecore:eclass" name="place" esupertypes="#//petrinet/pnelement"> Class <estructuralfeatures xsi:type="ecore:eattribute" name="token" lowerbound="1" etype="ecore:edatatype Attribute <estructuralfeatures xsi:type="ecore:ereference" name="outgoingarcs" upperbound="-1" etype="#//petrinet/ptarc" containment="true" Reference eopposite="#//petrinet/ptarc/fromplace"/> Multiplicity Containment <estructuralfeatures xsi:type="ecore:ereference" name="incomingarcs" upperbound="-1" etype="#//petrinet/tparc" eopposite="#//petrinet/tparc/toplace"/> </eclassifiers> Type Opposite End Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

67 CODE GENERATION FROM ECORE Metamodeling and Domain Specific Modeling

68 Goal: Generator model (.genmodel) o Specify the attributes of the code generation EMF model o Tree Editor o Refers to the Ecore model Code generation attributes o Java version (e.g., use Enums in case of Java 5 and higher) o Package/project names o Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

69 Code Generation from Ecore (.genmodel) Ecore model remains pure and independent Customizable (wrappers, code formatters, etc.) Generated plugins: o Model persistency (EMF.model) o Model management (EMF.edit) o Model editor (EMF.editor) Has some limitations o What happens when the underlying.ecore changes? Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

70 Generator model Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

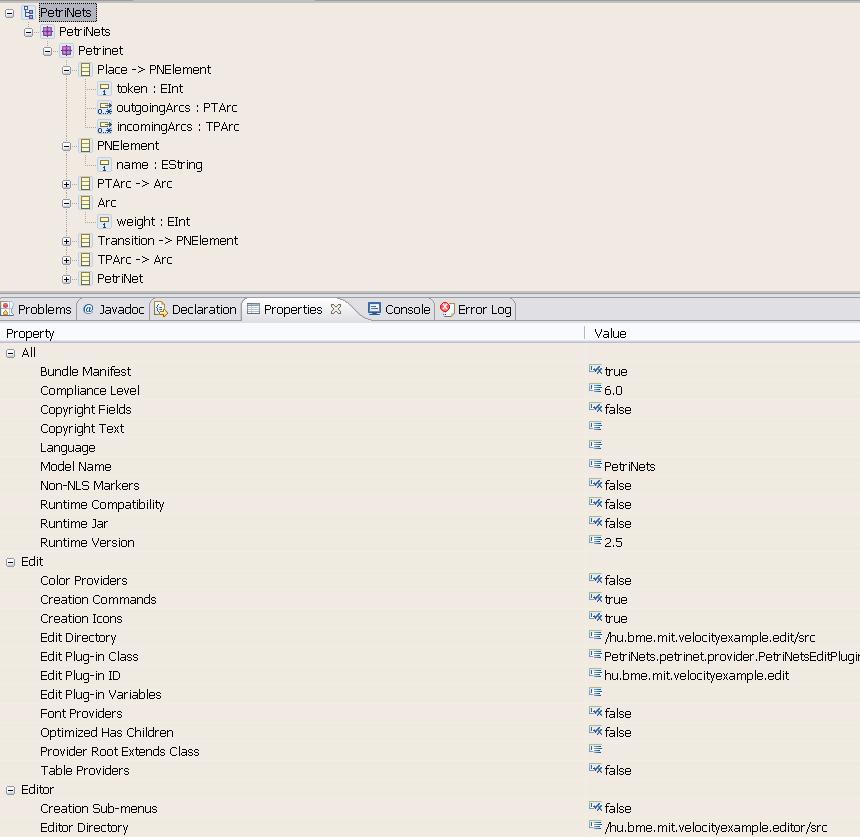

71 Generator model referred Ecore elements General parameters Edit specific attributes Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling Editor specific attributes

72 Generated EMF components 3. Tree Editor 2. Model Manipulation 1. Model Persistency Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

73 Generated EMF components Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

74 EMF.model Optimized persistency handling Fully featured Java code of the Ecore model Specific factories for all packages Notification mechanism (observer pattern) Possible extension points: o Advanced editor o Own file format with parser Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

75 EClass implementation <interface> Notifier BasicNotifierImpl Notification/Observer Layer <interface> EObject <interface> Place BasicEObjectImpl EObjectImpl PlaceImpl Common Implementation Layer Generalize the already defined framework element Business Layer Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

76 Auto-Generated Interface ESuperClass EMF specific annotations Getters/Setters for attributes No setter when multiplicity > 1 (use add/remove instead) EList: EMF list interface (~10 implementations Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

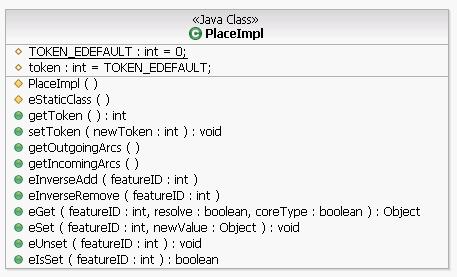

77 EObject API <interface> Place getincomingarcs(): Elist getoutgoingarcs(): Elist gettoken(): int settoken(value:int) PlaceImpl getincomingarcs(): Elist getoutgoingarcs(): Elist gettoken(): int settoken(value:int) Every class contains framework-specific methods: o Reflective get/set (eget, eset) o Consistent manipulation (einverseremove) o Notifications for feature changes (very useful e.g. in GUI!) Inherited from common supertype EObject o see deep instantiation earlier Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

78 EOperation Implementation Represents the frame of a Java method Present in both the interface and implementing class Important: o Have to change the generated annotation to NOT so that next code generation phase does not overwrite it o Have to implement the method manually Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

79 Client Programming with EMF Place p1 = PetrinetFactory.eINSTANCE.createPlace(); p1.setname("p1"); Place p2 = PetrinetFactory.eINSTANCE.createPlace(); p2.setname("p2"); Transition t1 = PetrinetFactory.eINSTANCE.createTransition(); t1.setname("t1"); // Inverse direction (p1.outgoingarcs) is set automatically PTArc a0 = PetrinetFactory.eINSTANCE.createPTArc(); a0.setfromplace(p1); a0.settotransition(t1); TPArc a1 = PetrinetFactory.eINSTANCE.createTPArc(); a1.settoplace(p2); a1.setfromtransition(t1); Set target of PT arc Create a place Create a transition Create a PT arc Set source of PT arc Advanced client programming: Reflective Ecore API Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

80 The org.eclipse.emf.ecore.util Package Contains utility classes and interfaces: o ECoreEContentAdapter: maintains itself as a notification adapter for a whole containment (sub)tree o UsageCrossReferencer: finds each ModelElement pointing to the corresponding EObject o ContentTreeIterator: An iterator over the tree contents of a collection of EObjects o Copier: deep copy of EObject Elements and EReferences o Etc. (This is not generated but a generic component) Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

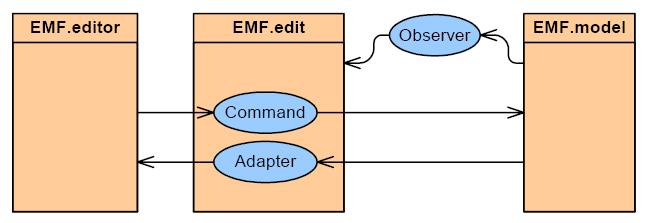

81 Generated EMF components Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

82 EMF.Edit Separates the GUI and the model Generator pattern: o Provider class for each model element o Base class: ItemProvider o Forward EMF model change notifications to the viewer Provides: o Element text o Icon o Description of features in EClass Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

83 EMF.Edit Handles EMF.model notifications Model manipulation commands (base + own) Converts model notifications to GUI notifications Model manipulation through commands o Possible alternative to direct setters o Undoable, redoable o ItemProvider.createAddCommand( ) etc. Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

84 Generated EMF components Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

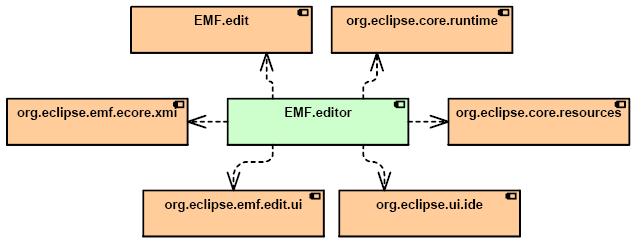

85 EMF.Editor EMF.Editor generates the SWT/JFace for the graphical editor Generates: o Tree editor o Wizards o Menus o plugins Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

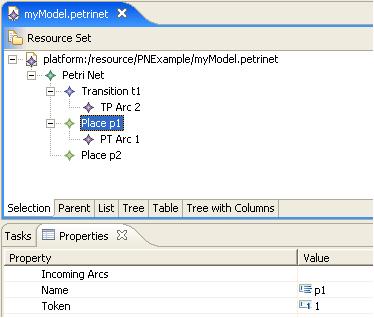

86 The editor of Petri Net models <?xml version="1.0" encoding="utf-8"?> <PetriNets.petrinet:PetriNet xmi:version="2.0" xmlns:xmi=" xmlns:petrinets.petrinet= " <transitions name="t1" incomingarcs= <outgoingarcs weight="2" </transitions> <places name="p1" token="1"> <outgoingarcs weight="1" </places> <places name="p2" incomingarcs= </PetriNets.petrinet:PetriNet> Tree View Place p1 XMI 2.0 View Reference: URI (or XMI.id) Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

87 TOOLS, API AND UTILITIES Metamodeling and Domain Specific Modeling

88 Basic EMF tools Validation o Validate constraints over EMF models Query o High-level query language for EMF o See also: EMF-IncQuery Compare o To structurally compare EMF models (e.g., versioning) Teneo o Persistency layer over relation databases SDO o Service Oriented Architecture based on EMF CDO o distributed, client-server EMF models Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

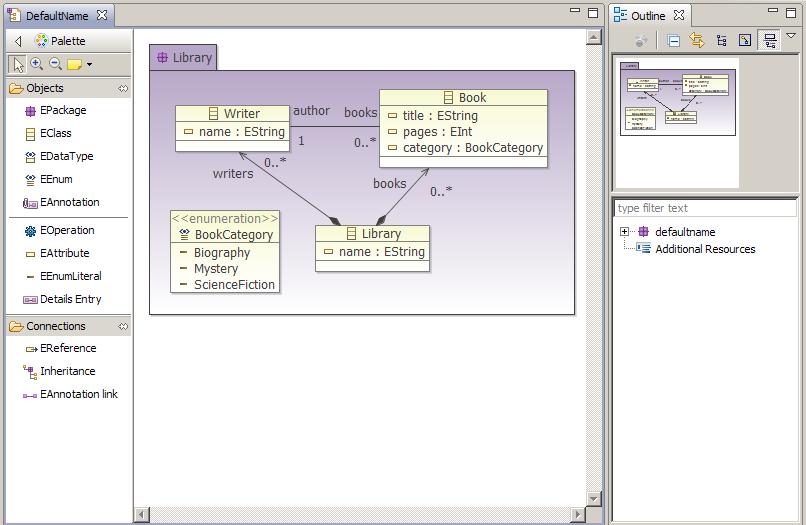

89 Ecore Tools: Ecore Diagram Editor Graphical DSL to define EMF metamodels o Based on GMF Metamodeling and Domain Specific Modeling

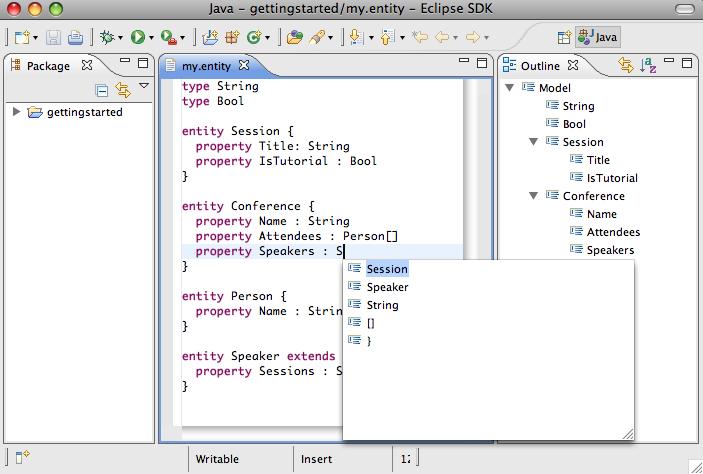

90 Textual DSL for defining metamodel + textual syntax Context-free grammar! Generates: o Metamodel o Parser o Editor features Xtext Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling

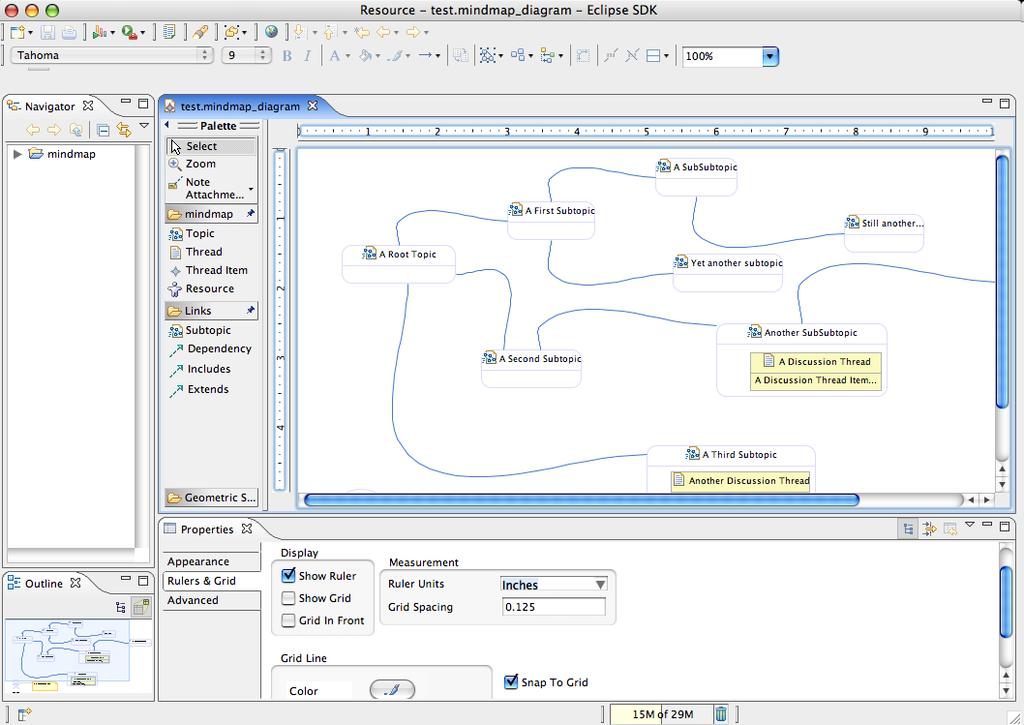

91 GMF Méréstechnika és Információs Rendszerek Tanszék Metamodeling and Domain Specific Modeling
