1 Simulation of a Solar System in the subject called Modelling of virtual reality Attila Friedel friedel@gdf.hu Dennis Gabor College Erasmus IP 2013, Finland

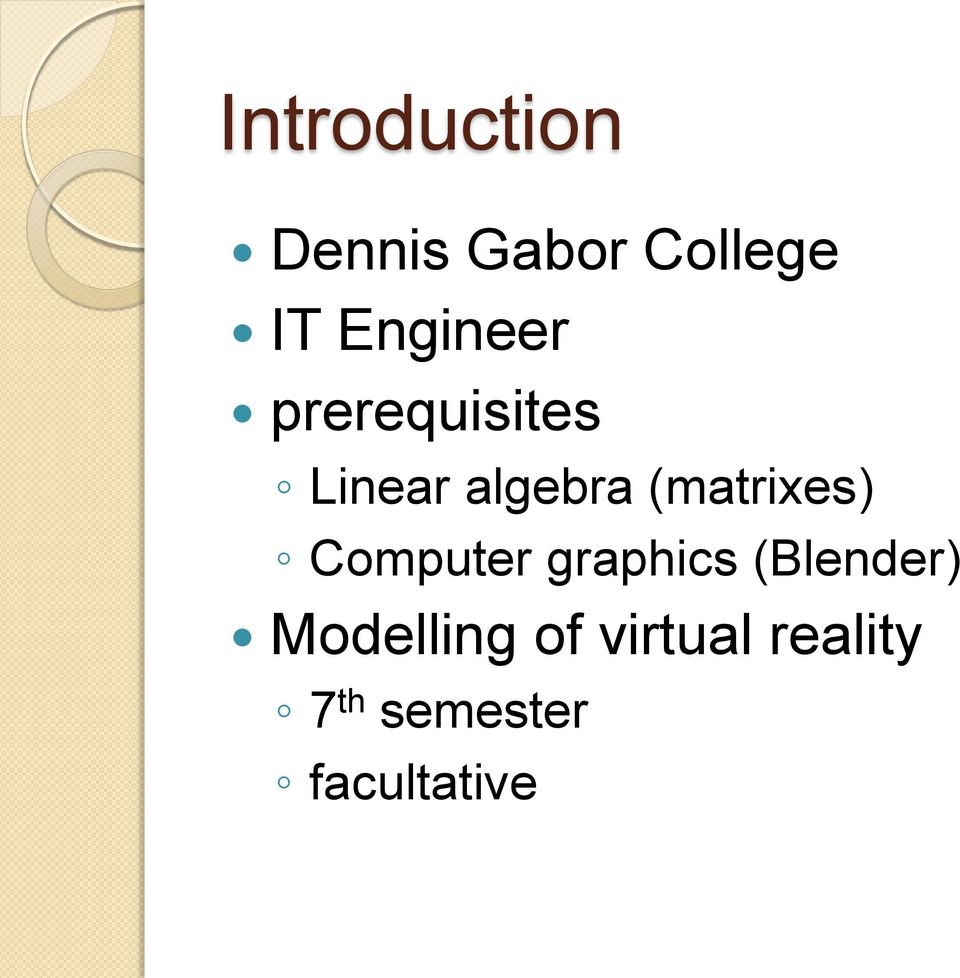

2 Introduction Dennis Gabor College IT Engineer prerequisites Linear algebra (matrixes) Computer graphics (Blender) Modelling of virtual reality 7 th semester facultative

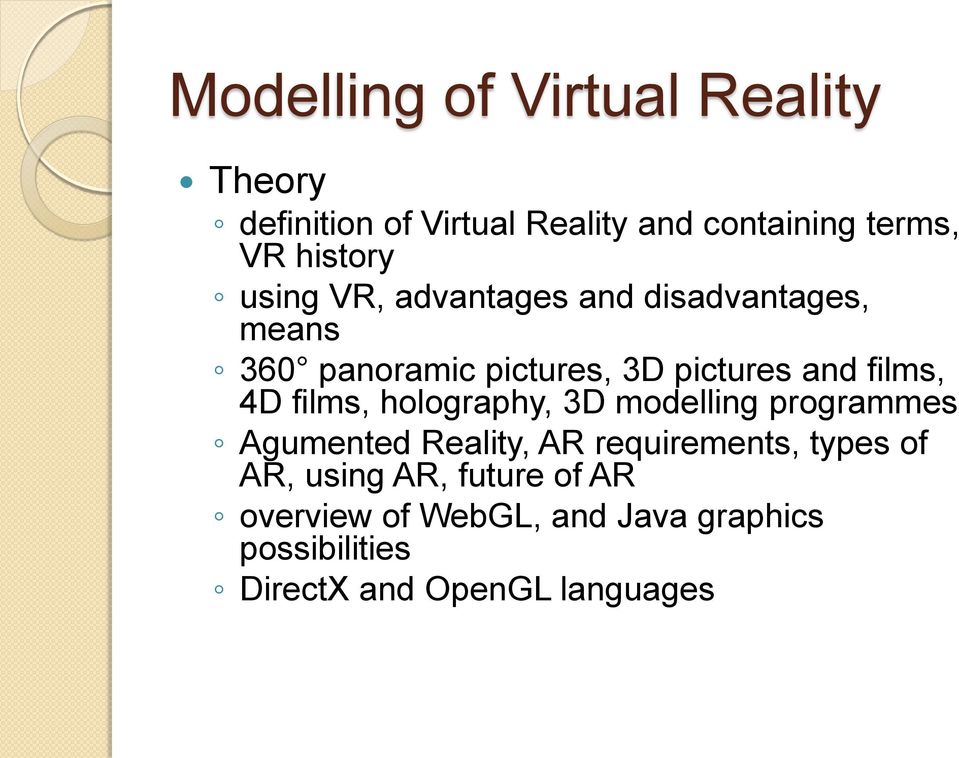

3 Modelling of Virtual Reality Theory definition of Virtual Reality and containing terms, VR history using VR, advantages and disadvantages, means 360 panoramic pictures, 3D pictures and films, 4D films, holography, 3D modelling programmes Agumented Reality, AR requirements, types of AR, using AR, future of AR overview of WebGL, and Java graphics possibilities DirectX and OpenGL languages

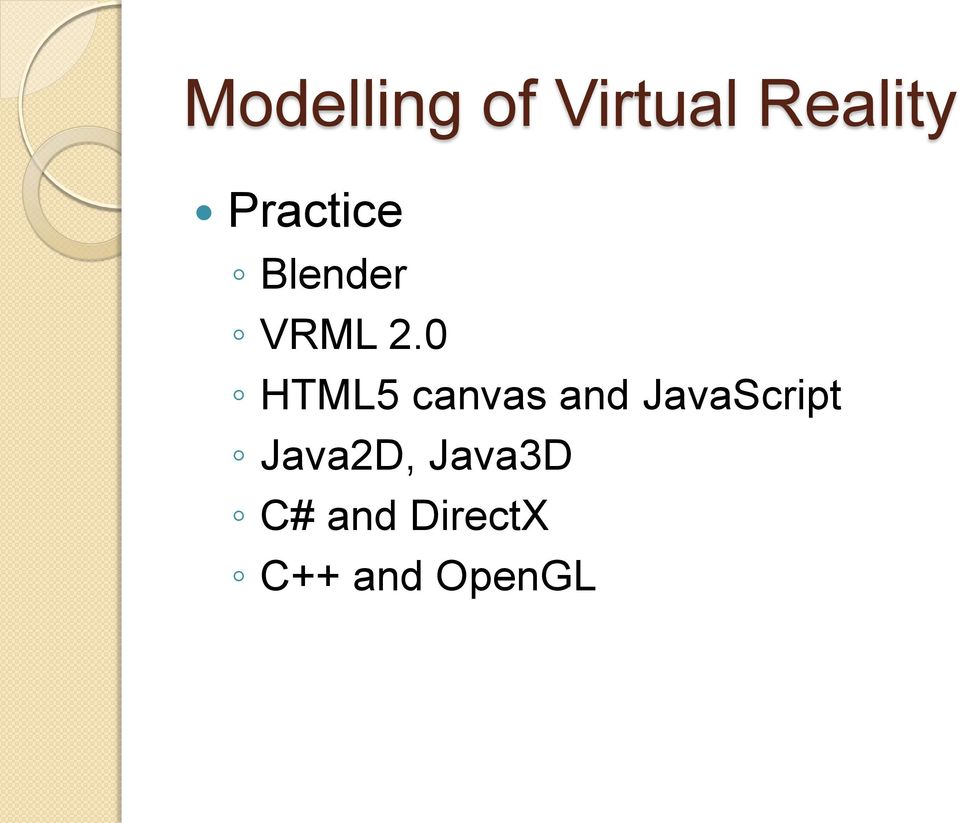

4 Modelling of Virtual Reality Practice Blender VRML 2.0 HTML5 canvas and JavaScript Java2D, Java3D C# and DirectX C++ and OpenGL

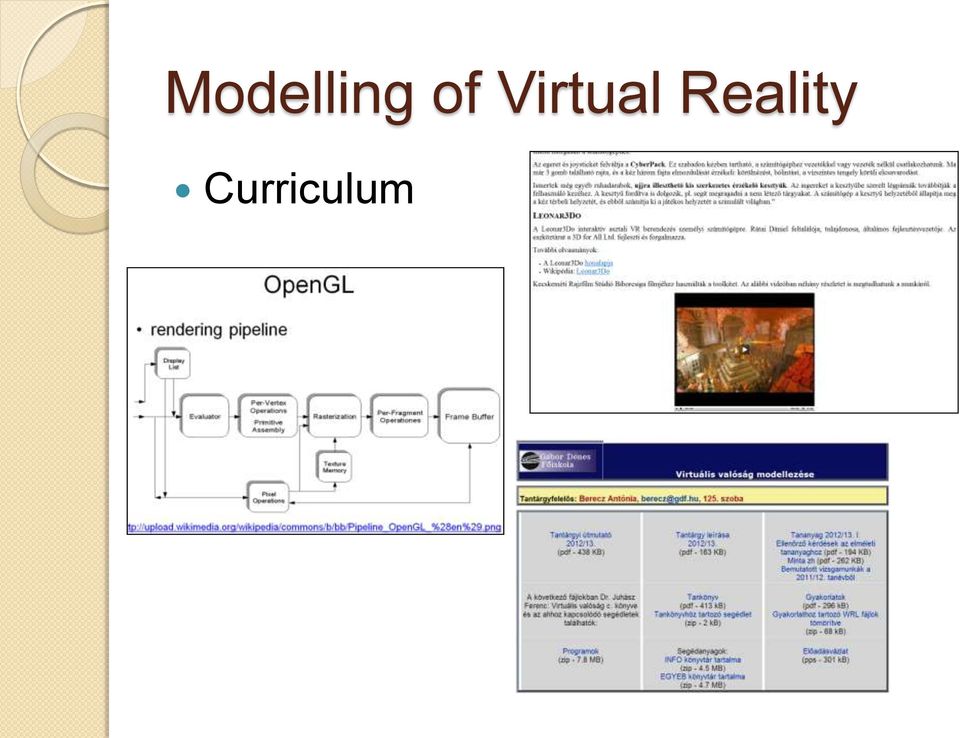

5 Modelling of Virtual Reality Curriculum

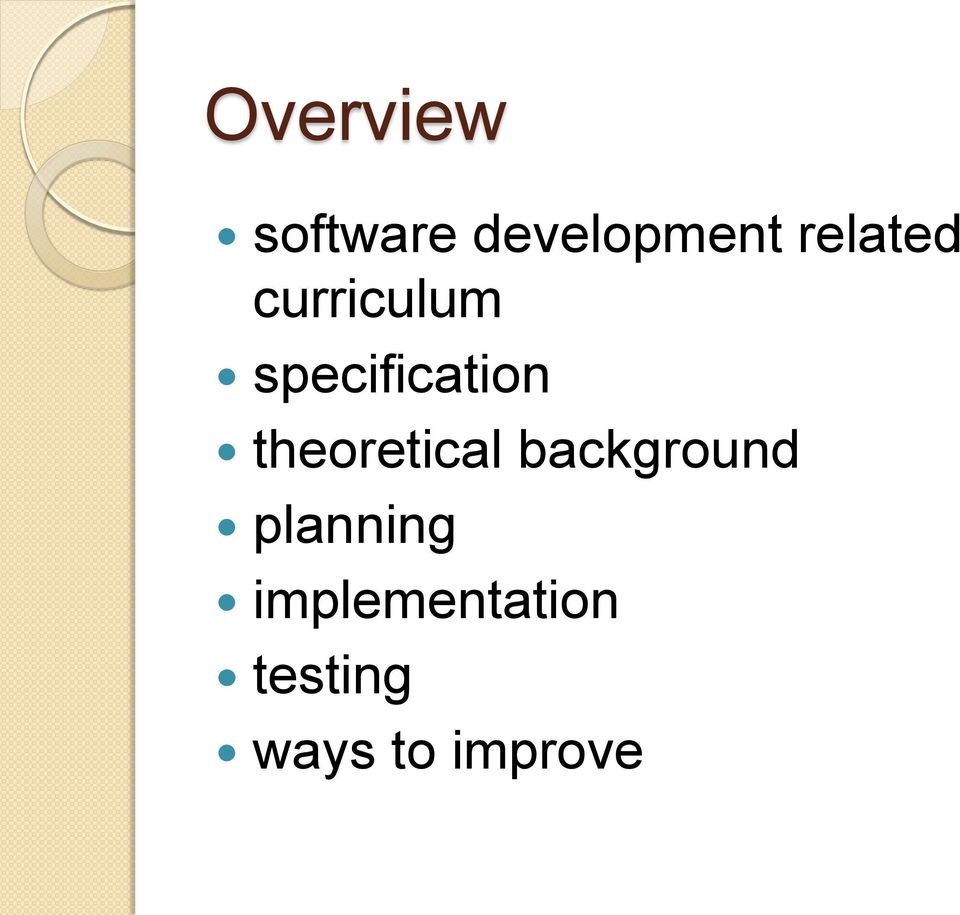

6 Overview software development related curriculum specification theoretical background planning implementation testing ways to improve

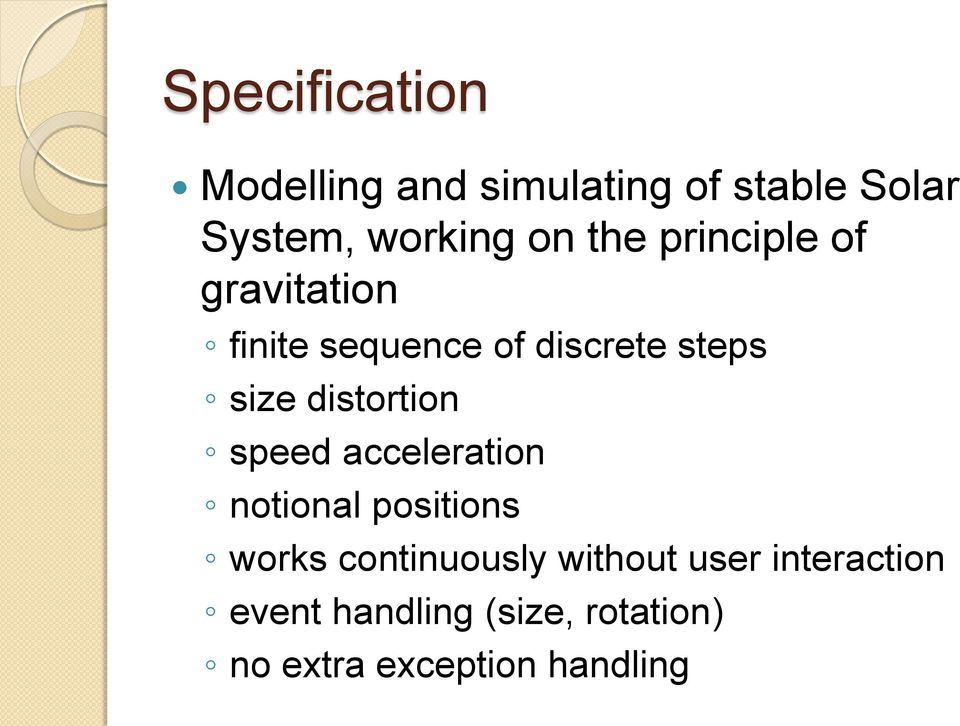

7 Specification Modelling and simulating of stable Solar System, working on the principle of gravitation finite sequence of discrete steps size distortion speed acceleration notional positions works continuously without user interaction event handling (size, rotation) no extra exception handling

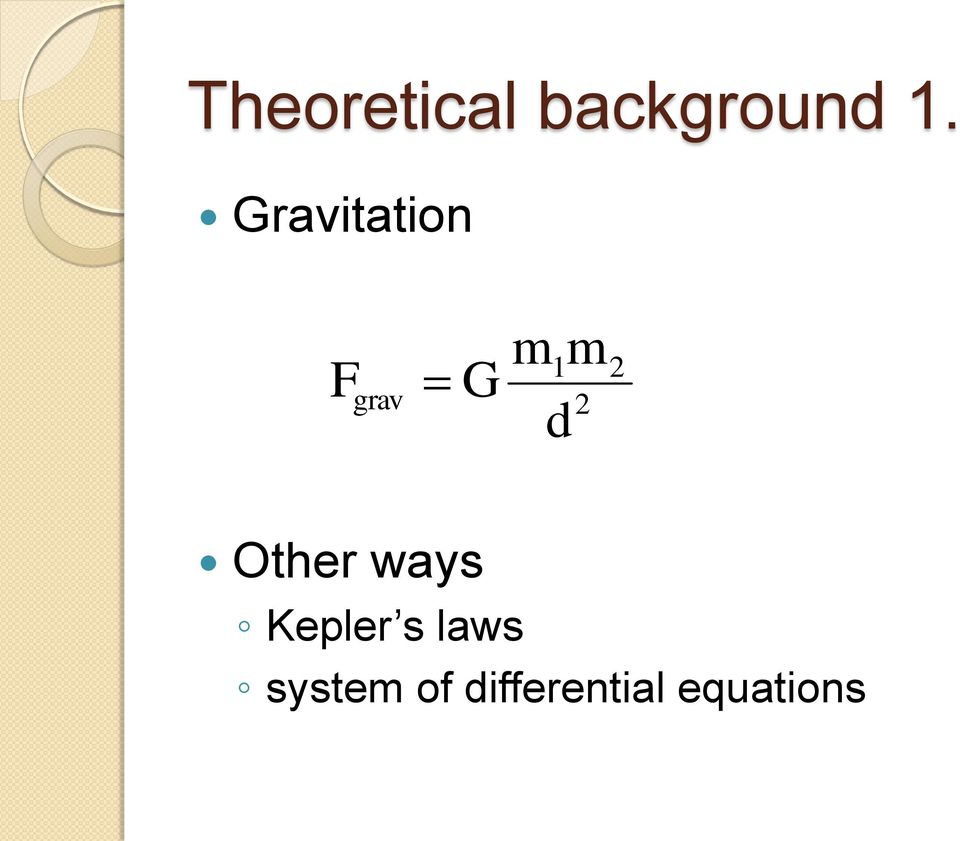

8 Theoretical background 1. Gravitation F G grav m1m 2 d 2 Other ways Kepler s laws system of differential equations

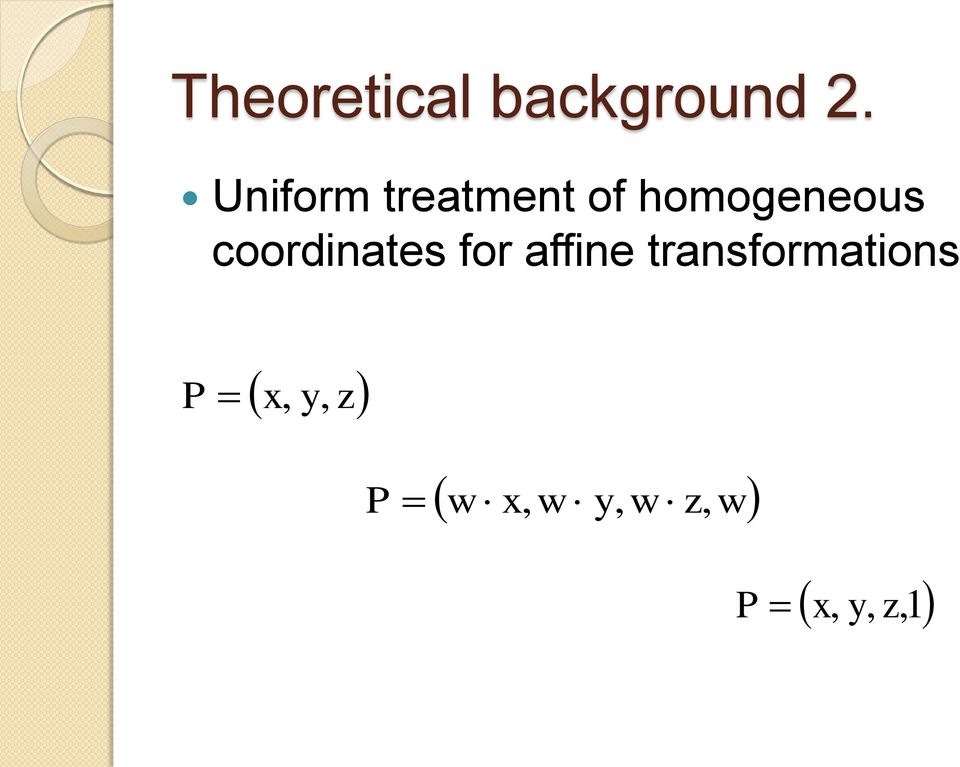

9 Theoretical background 2. Uniform treatment of homogeneous coordinates for affine transformations P x, y, z P w x, w y, w z, w P x, y, z,1

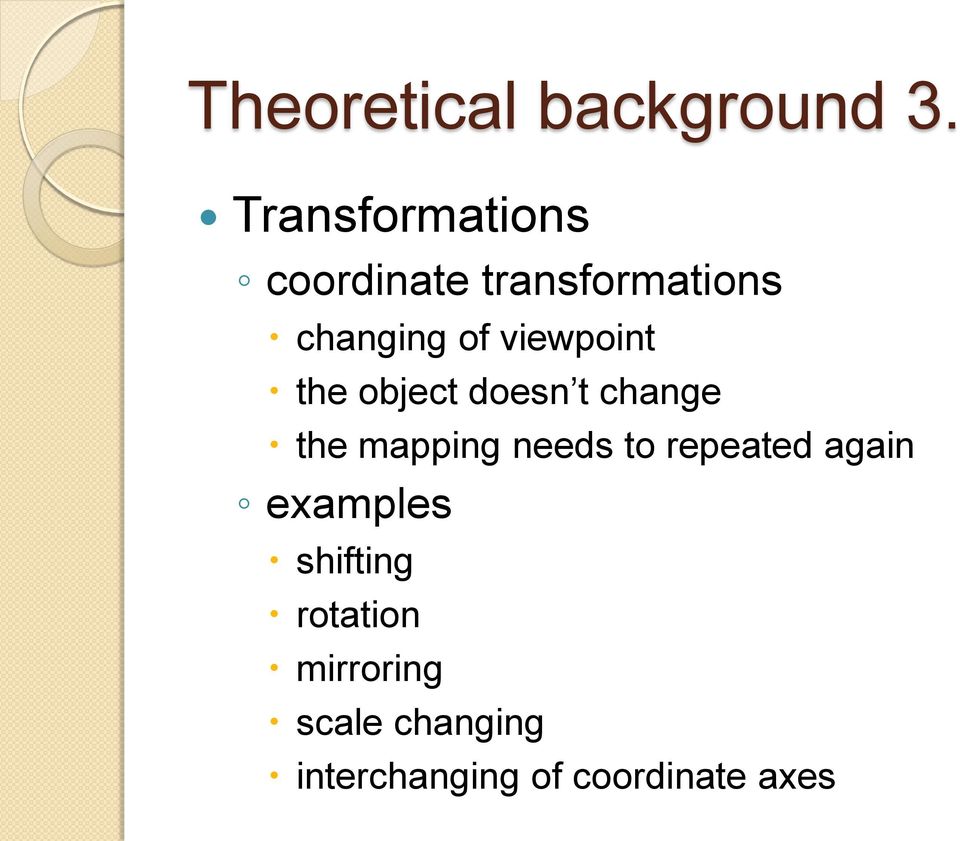

10 Theoretical background 3. Transformations coordinate transformations changing of viewpoint the object doesn t change the mapping needs to repeated again examples shifting rotation mirroring scale changing interchanging of coordinate axes

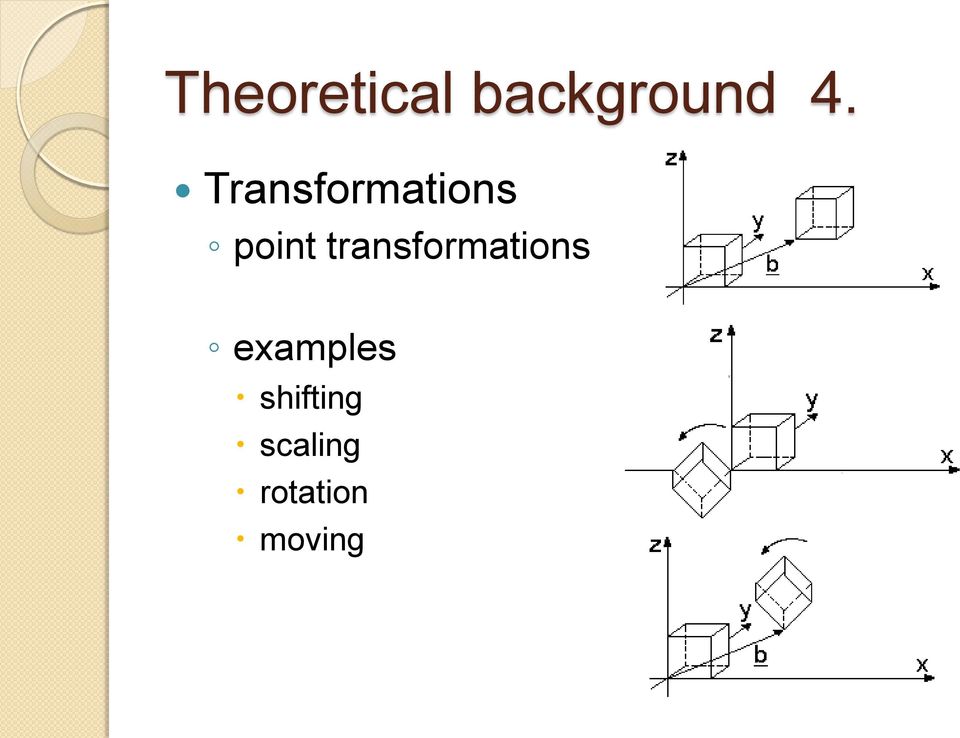

11 Theoretical background 4. Transformations point transformations examples shifting scaling rotation moving

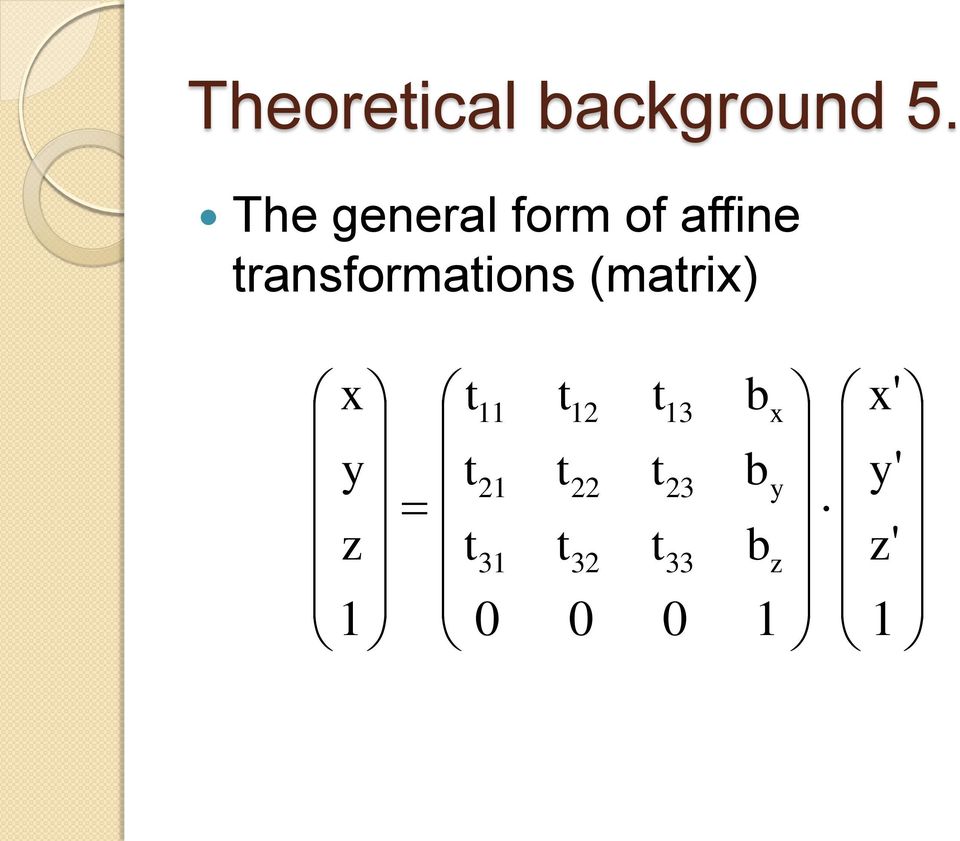

12 Theoretical background 5. The general form of affine transformations (matrix) 1 ' ' ' z y x b t t t b t t t b t t t z y x z y x

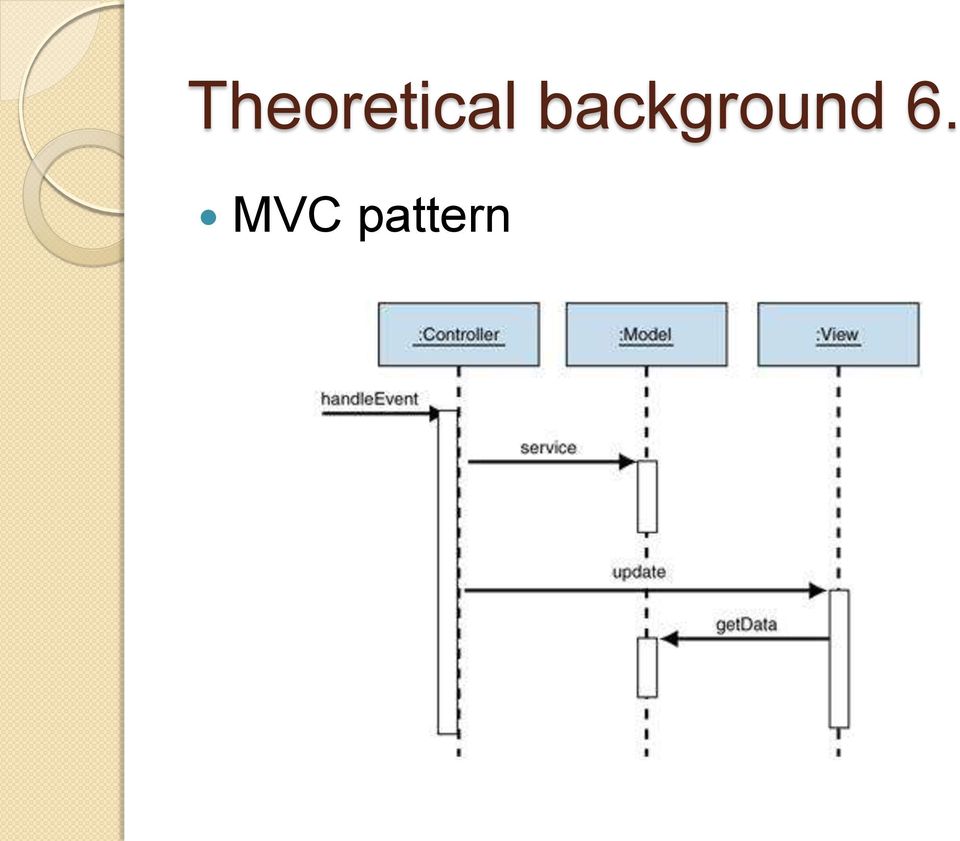

13 Theoretical background 6. MVC pattern

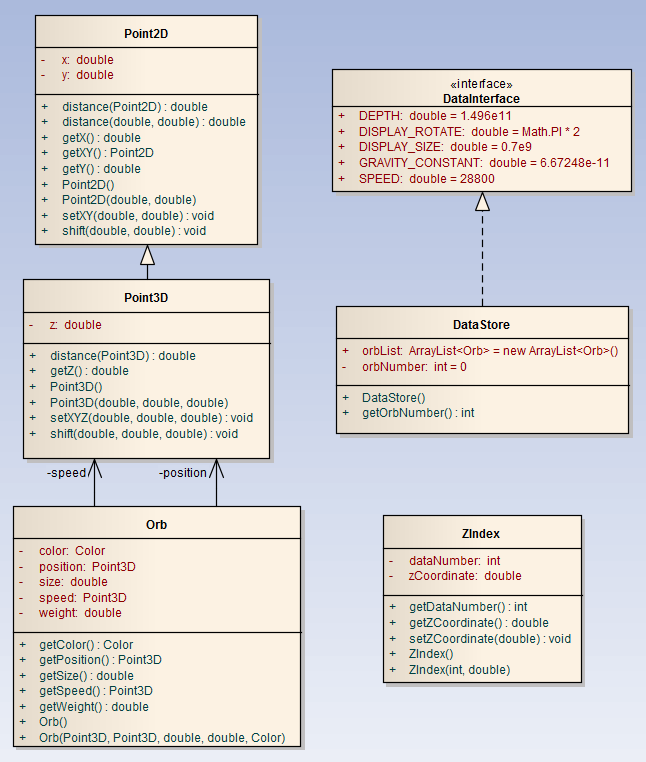

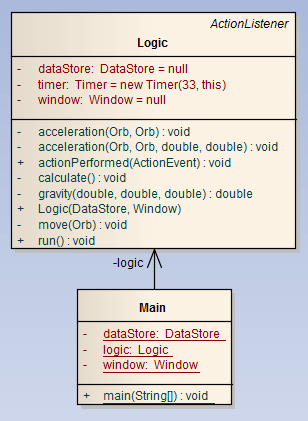

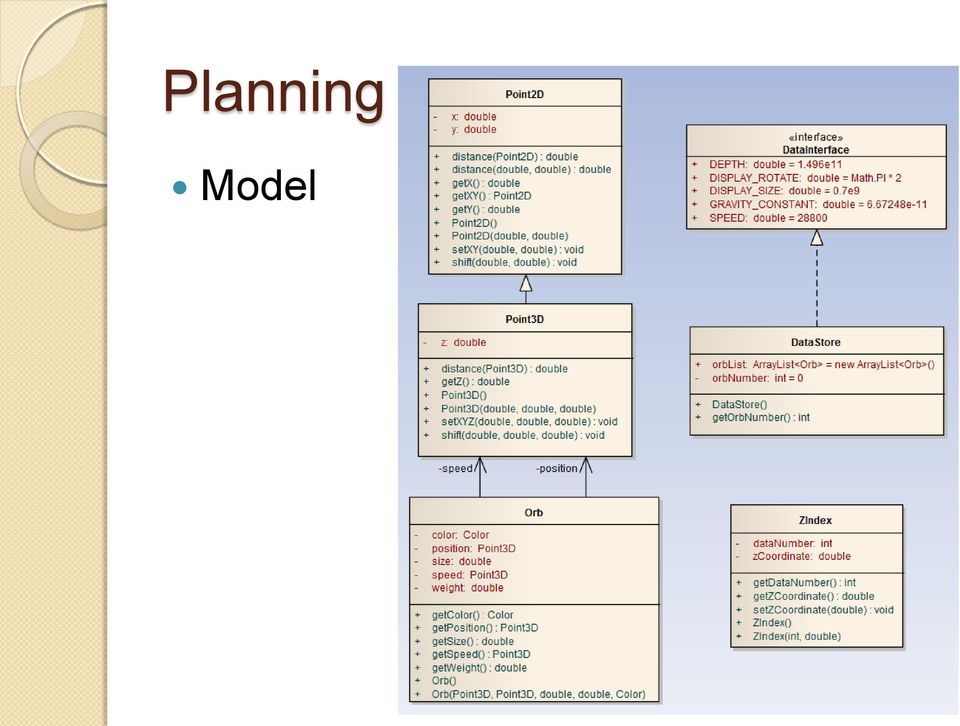

14 Planning Model

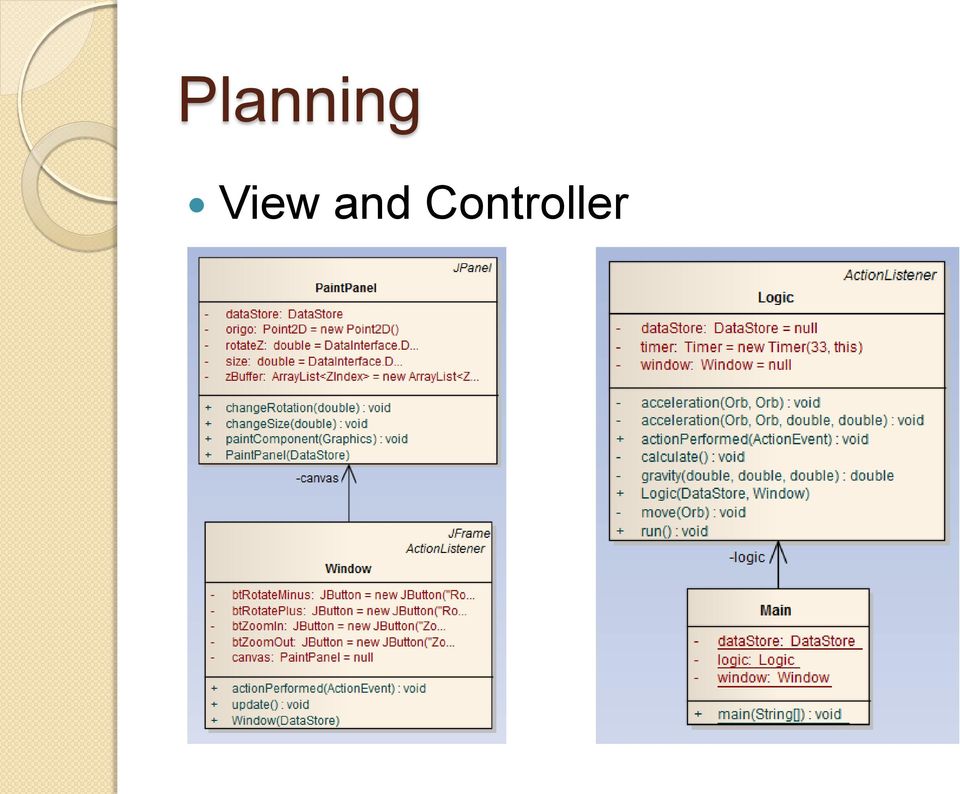

15 Planning View and Controller

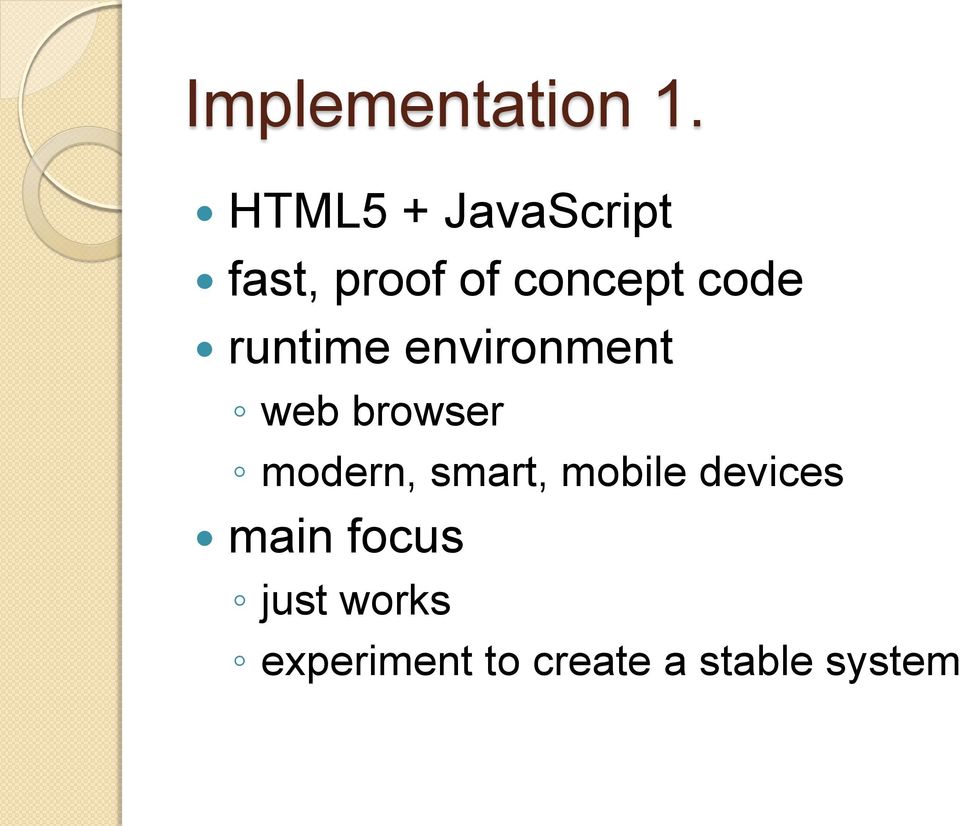

16 Implementation 1. HTML5 + JavaScript fast, proof of concept code runtime environment web browser modern, smart, mobile devices main focus just works experiment to create a stable system

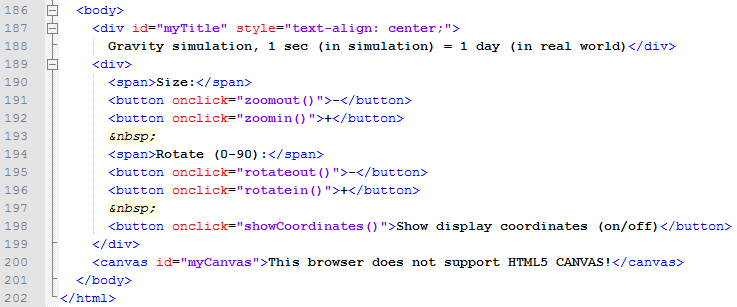

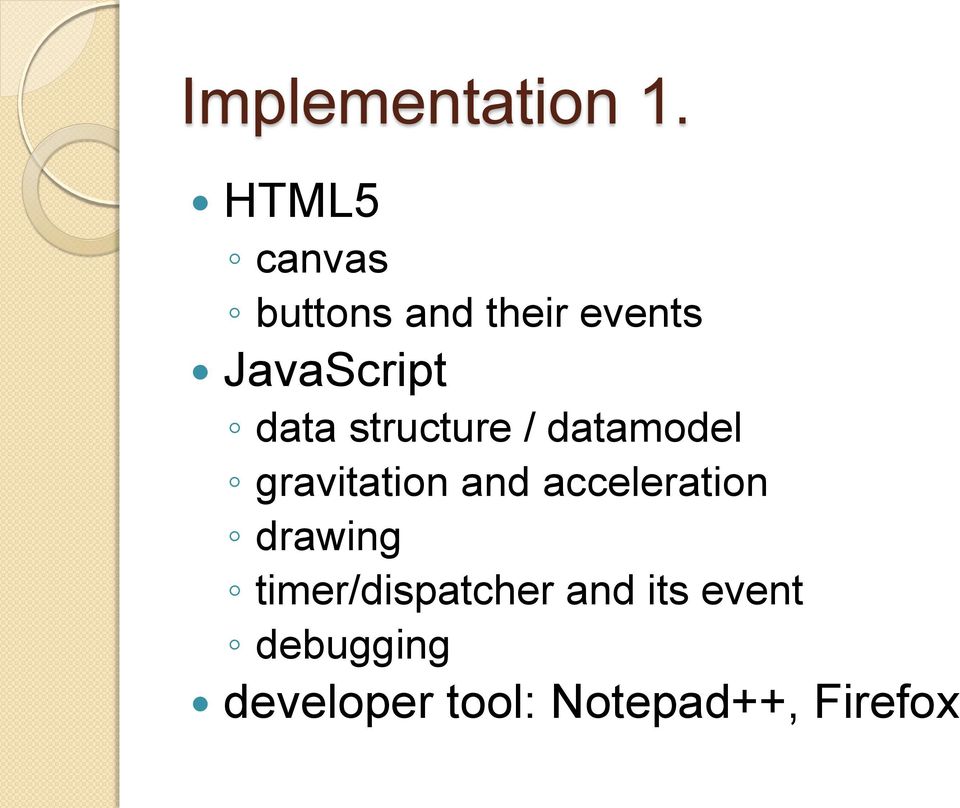

17 Implementation 1. HTML5 canvas buttons and their events JavaScript data structure / datamodel gravitation and acceleration drawing timer/dispatcher and its event debugging developer tool: Notepad++, Firefox

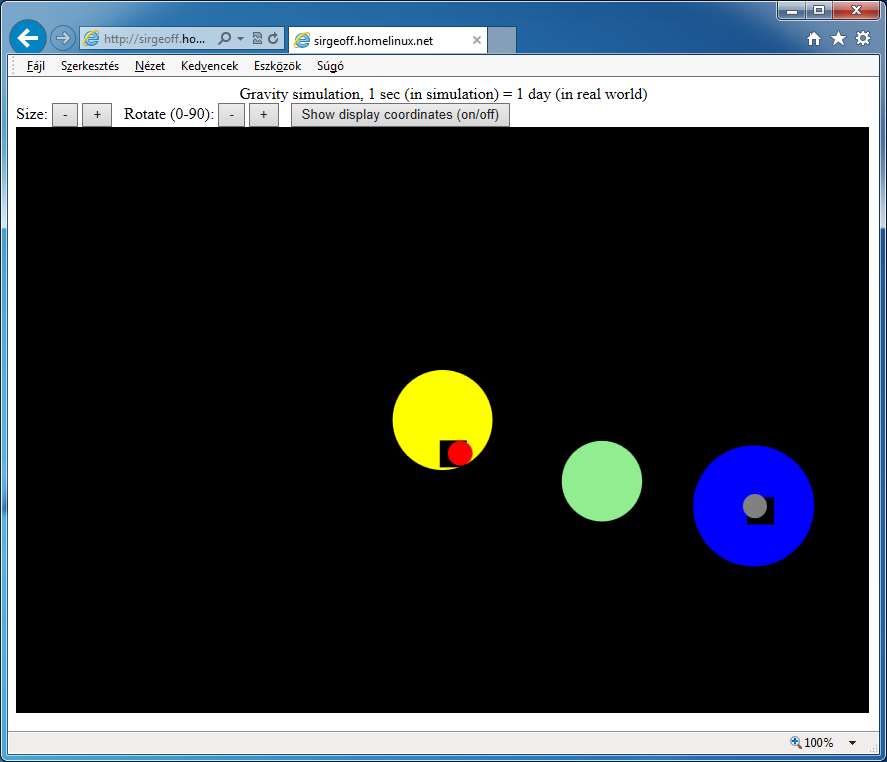

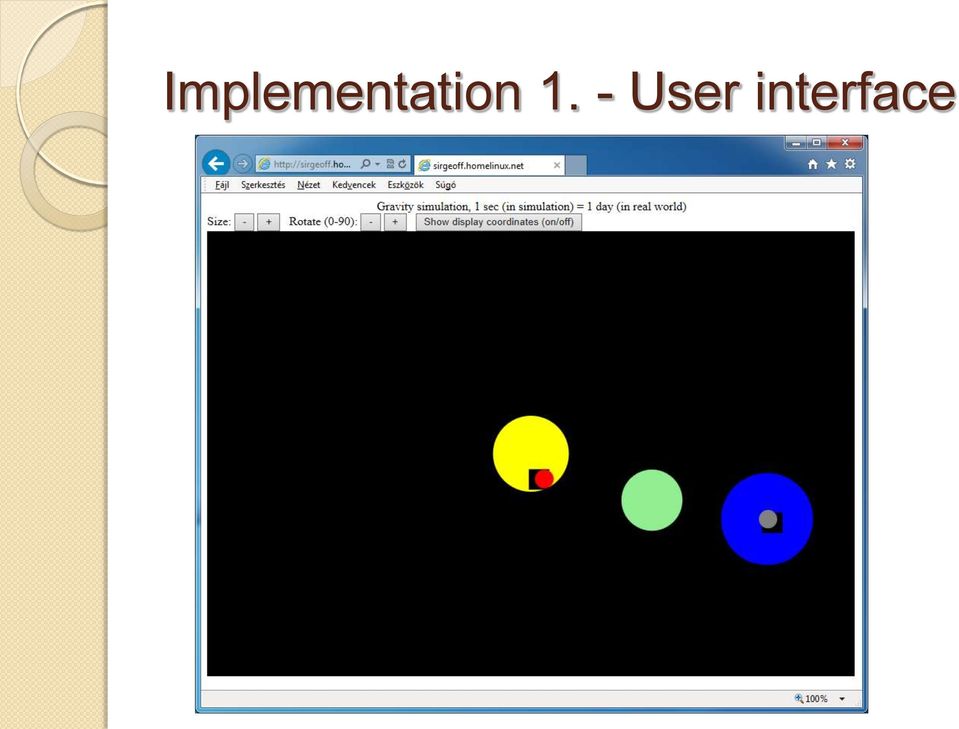

18 Implementation 1. - User interface

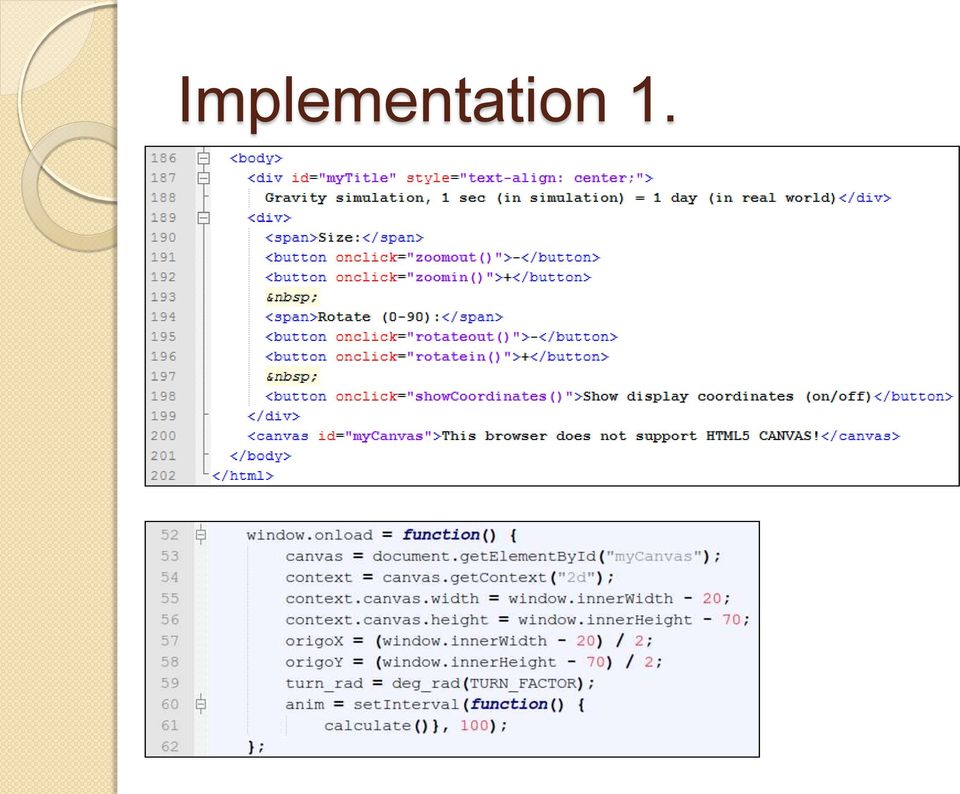

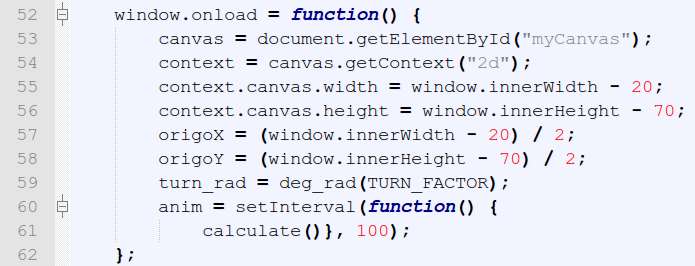

19 Implementation 1.

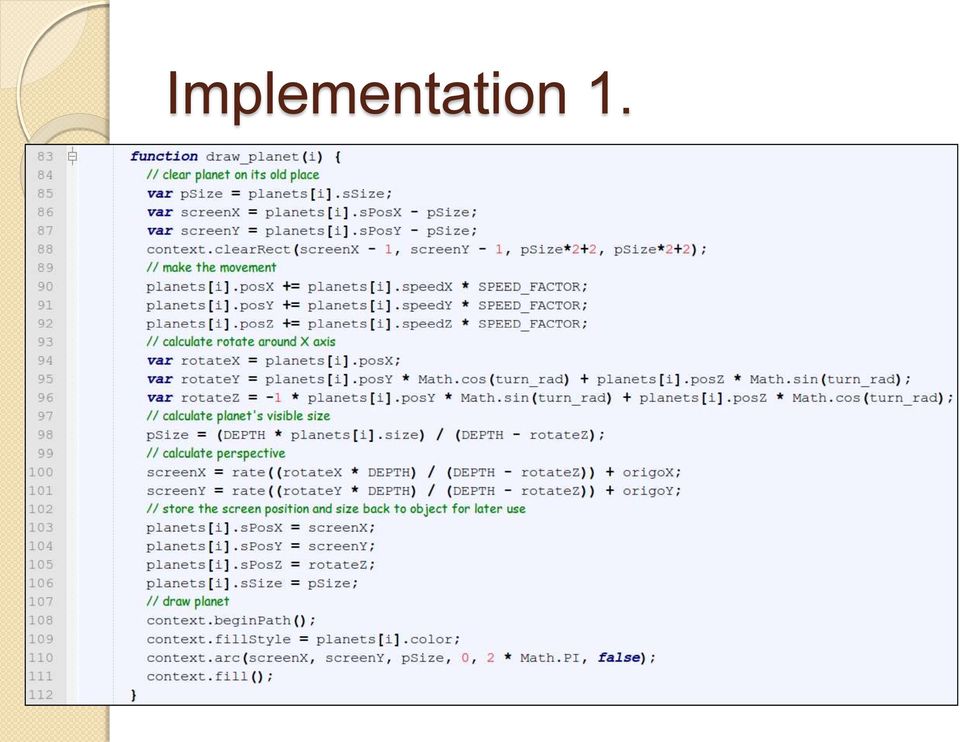

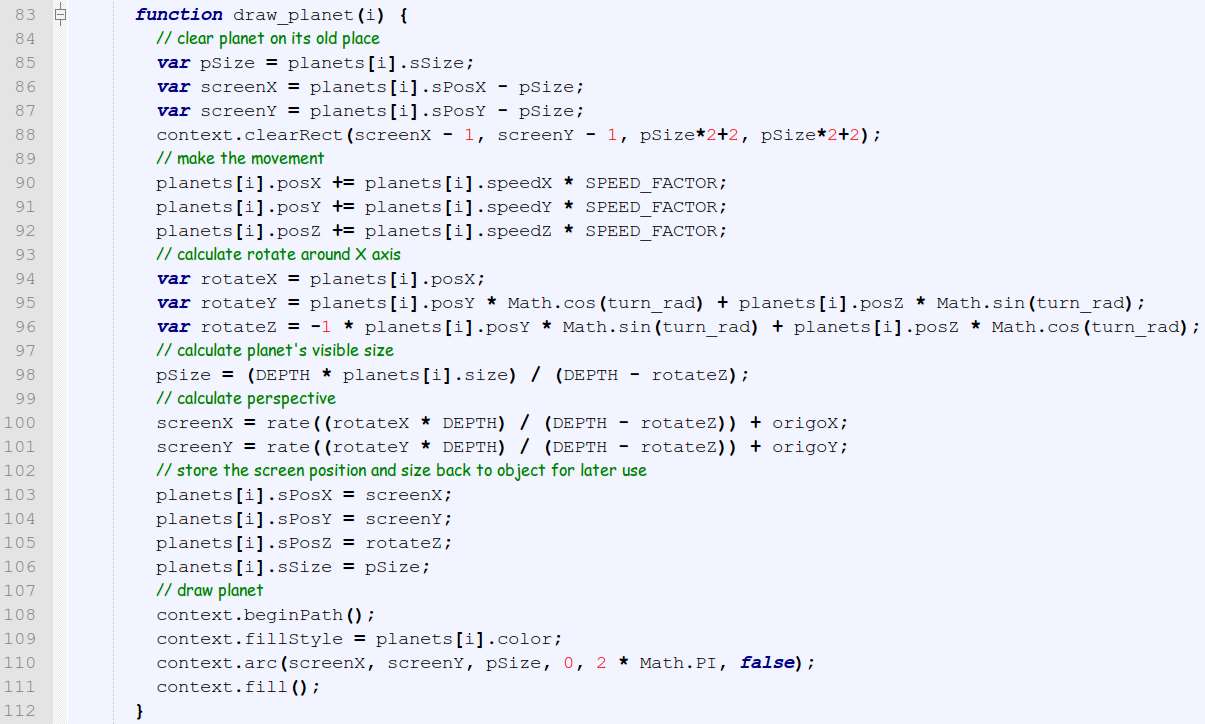

20 Implementation 1.

21 Implementation 2. Java2D swing technology, desktop program packages created with MVC pattern logical distribution of functions object-oriented principles interfaces, encapsulation, inheritance, use of polimorphism main focus on beautiful, elegant code developer tool: JDK, NetBeans

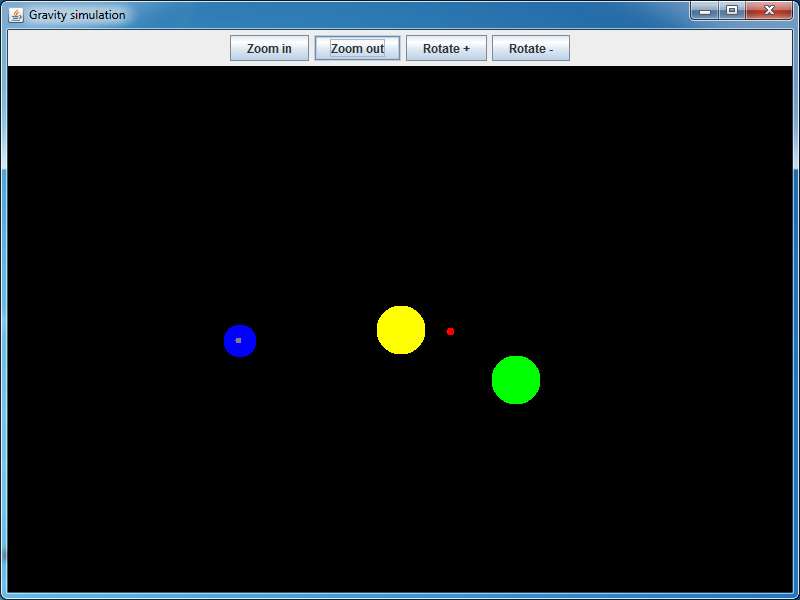

22 Implementation 2. - User interface

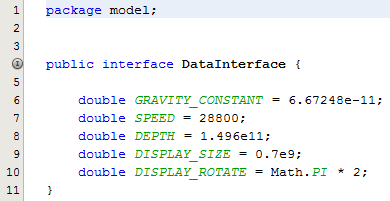

23 Implementation 2.

24 Implementation 2.

25 Experiences, summary 10 frame/sec, runs in mobile browsers comparison type restriction expandability abstraction suitable for deepen the theoretical knowledge strengthen the links between subjects and topics achieve fast, spectacular result

26 Enhancement opportunities hardware acceleration and 3D visualisation changing multiple parameters on the UI runtime maintenance of orbs using textures real startup position start and stop function Java3D, DirectX, OpenGL variants reading parameters from file case study of famous conjunctions improved mathematical model

27 References (in Hungarian) [1] Virtuális valóság modellezése Tantárgyi útmutató: (bejelentkezve érhető el) [2] GDF ILIAS: [3] A cikkhez tartozó programok: [4] HTML5 Canvas tutorials: [5] Homogén koordináták és transzformációk: [6] Kaczur S., Kopácsi S.: Practical application of coordinate and dot transformations, A GAMF Közleményei, Kecskemét, XXIII. évf., 2008, HU ISSN , p [7] Kaczur S.: Programozási technológia, Budapest, 2010, ISBN [8] Budai A., Vári Kakas I.: Számítógépes grafika ( A modelltér transzformációi, 88), INOK Kft., Budapest, 2007, ISBN [9] Berke J., Hegedűs Gy. Cs., Kelemen D., Szabó J.: (5.3. Koordináta-transzformációk, 78), Veszprémi Egyetem Georgikon Mezőgazdaságtudományi Kar, Keszthely, 2002 [10] Hack F.: 3D-grafika geometriai alapjai (2. Koordinátatranszformációk, 19), ELTE, Budapest, 2002 [11] Kondorosi K., László Z., Szirmay-Kalos L.: Objektum-orientált szoftverfejlesztés, ComputerBooks, Budapest, 1997 [12] Horváth L., Szlávi P., Zsakó L.: Modellezés és szimuláció, ELTE IK, Budapest, 2006
