1 Hungarian cadastral mapping Piroska Zalaba Tamás Koós György Reményi Department of Land Administration Trenro (Trient), Maj

2 Pre cadastral maps of Hungary A map of Hungary made by Lázár Eleazarus in the year of

3 Wolfgang Lazius Map of Hungary from

4 Johann Cristoph Müller s map of Hungary from the year

5 Map of Nagykunság, compiled from the data of the 1731 survey by Sámuel Mikovinyi 5

6 The third military survey The second military survey became obsolete. It was never finished, the survey methods became out of date start of the 3. military survey. The survey was based on the new triangulation and new levelling networks The use of 1 : maps Achievement: 746 sheets, 1 : scale 1899 the end of the 3. military survey. 6

7 The third military survey in Hungary The result : Use of metric system Military topographic maps in the scale of 1: maps, size of maps cm, area depicted/map 261 km². Hydrogeology, elevation 7

8 The new survey of Budapest 1932, start of survey New triangulation network Strict survey methods (every point is measured in the field and gets coordinates) Numerical survey methods 1:1000 scale After WW II. the work continues. Budapest grows in size due to new districts. Changes in organization and technology alter the work. 8

9 High accuracy survey plan 9

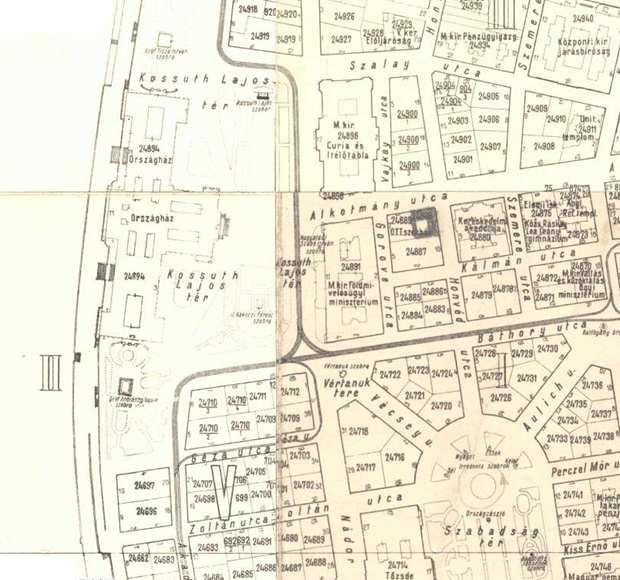

10 Budapest map from

11 City map of Eger Royal Cartography 11

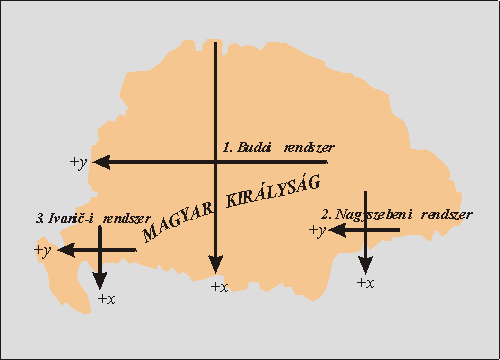

12 Projection systems used in Hungarian cadastral mapping EOV- Uniform National projection STG Stereographic projection HÉR HKR Cylinder Projections HDR (North, middle, south) VN Projection without reduction EOV STR VN HÉR HKR HDR No Rural Area 12

13 Since 1975 surveying and mapping was implemented in the Uniform National Projection (EOV) and the maps where produced in the Uniform National Map System (EOTR). Scale of maps - 1 : 4000, towns and cities 1:1000, 1: 2000 Map grid covers the whole country, but the EOV new mapping was never finished. Old maps created in earlier projections : projection without reduction, Budapest Stereographic Projection 1860 and three cylinder (HÉR, HKR, HDR) projections

14 Cadastral Map of the town of Csömör 14

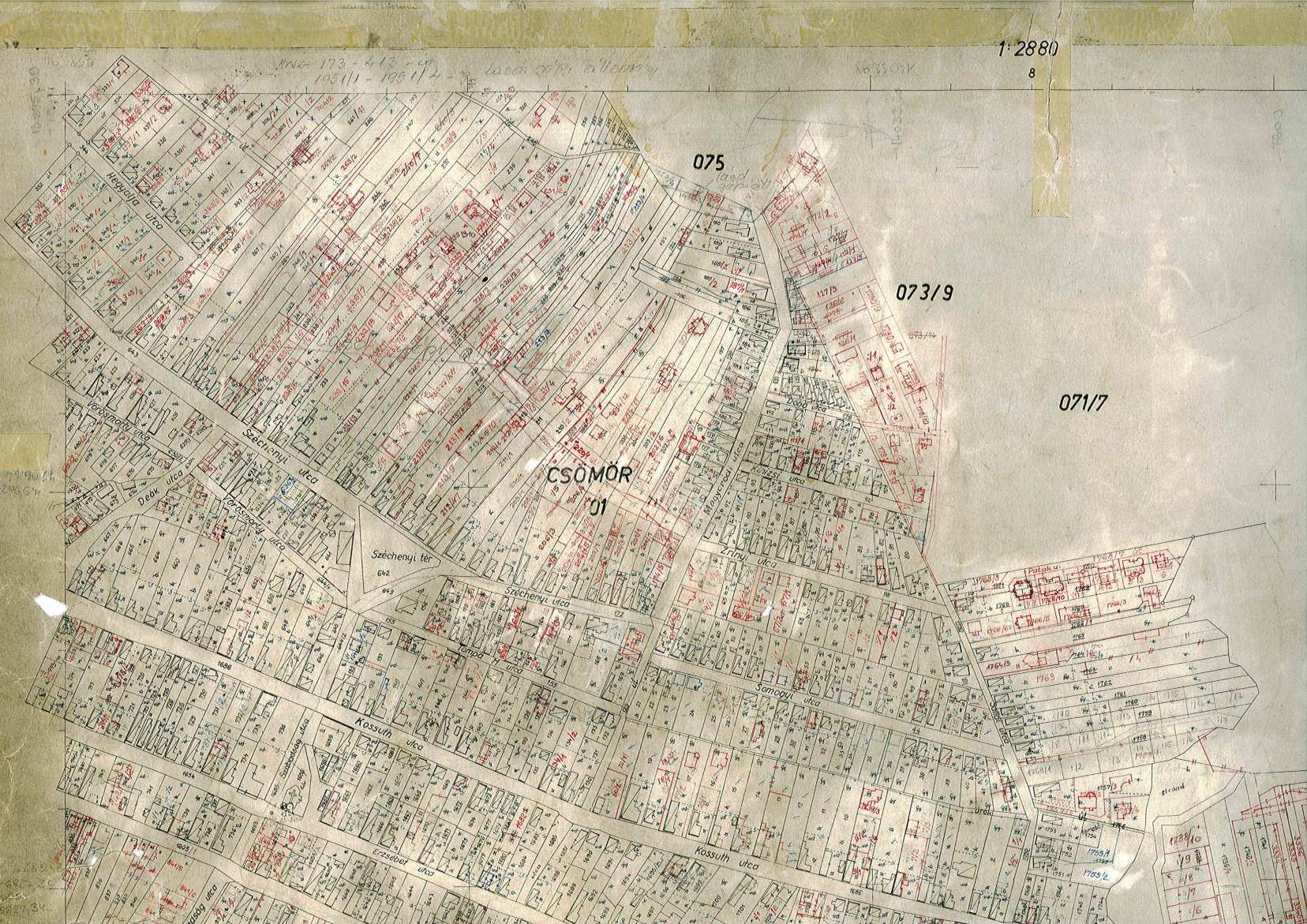

15 Stereographic Map of of Csömör 15

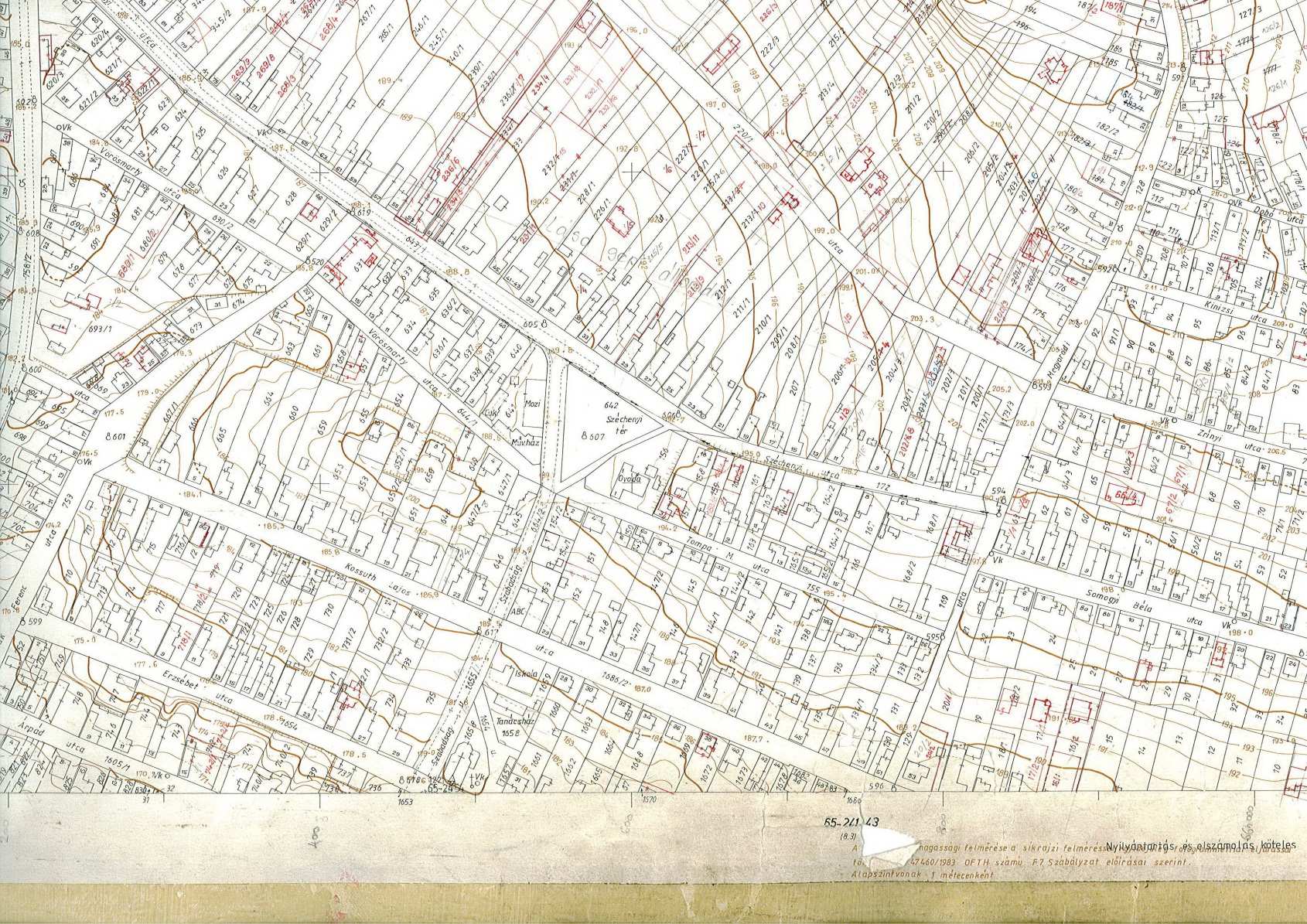

16 EOV Map of Csömör 16

17 EOV map sheet 17

18 Description of EOV Projection System Name: EOV (Uniform National Projection System). Description: The EOV is a plane projection system used uniformly for the Hungarian civilian base maps and, in general, for spatial informatics. (Base maps: 1:1000, 1:2000, 1:4000 large scale maps for cadastre and 1:10.000, 1:25.000, 1: topographic maps.) 1: overview maps Geometric classification: Conformal cylindrical projection in transversal position. Date of introduction: Origin of EOV plane coordinates: Coordinate system is moved to South-West with respect to origin of projection so that all possible EOV coordinates be positive for Hungary: X EOV = x m Y EOV = y m 18

19 Main parameters of EOV projection system Parameters: Reference surface: The IUGG GRS 1967 reference ellipsoid (Geodetic Reference System of International Union of Geodesy and Geophysics, 1967): a = m b = m Ellipsoidal geographic coordinates:, Projecting sphere: A Gauss-sphere fitted to reference ellipsoid at the normal parallel. It is used for Gauss-sphere: its radius: R = m and its spherical geographic coordinates:, 19

20 EOTR -Uniform National Map System 20

21 1997: National Cadastre Program 1996: Government decision about the program: nation-wide digital new mapping Financing from loan of commercial banks with government guarantee * cadastral map sheets (9.3 million hectares) * from land privatisation 3 million hectares are digitised Establishing the National Cadastre Non-profit Company for administrative management of the program 1996 Digital Base Map regulation (DAT) MSZ Hungarian Standard Maps prepared by private sector Loan must be paid back from income of data service Start of the program: September 1997 Original plan: preparing new digital cadastral maps and provide IT infrastructure for maintaining May 13, Bank loan of 6,6 billion Fts (22 m Euros ) 14 Local governments join the project, they join in the financing of the new data bases (by the end of m Ft Euros where transferred for the funding of the 21 new survey work)

22 The utilization of 6.6 Billion Ft loan Other expenses 4% Digitization of rural areas 12% Training 1% Development of land office Information technology (IT) 21 % New cadastral mapping 62% 22

23 1943.évi Utasítás az országos felmérés végrehajtására Szabatos felmérések végrajhajtására vonatkozó utasítás /1953 (T.49.) ÁFTH sz. utasítás Rendelte el a Szabatos felmérések végrehajtására vonatkozó utasítás kötelező használatát DAT Regulation 106/1957 (T.6.) ÁFTH sz. utasítás T.6 A földmérési térképek készítése tárgyában 113/1957 (T.13.) ÁFTH sz. utasítás T.13 Kataszteri térképhelyesbítés elveiről 113/1/1957 (T.19.) ÁFTH sz. utasítás T.19 A kataszteri térképhelyesbítés irányelveivel kapcsolatos magyarázat 46/1957.(VII.31.) Korm. r. 118/1961 (T.17.) ÁFTH sz. utasítás T.17 Külterületi kataszteri térképfelújítás végrehajtására 207/1962 (T.6.) ÁFTH sz. utasítás T.6 A földrendezéssel nem érintett területek földnyilvántartási adatainak rendezéséről 209/1962 (T.9.) ÁFTH sz. utasítás T.9 A belterületek és zártkertek kataszteri térképeinek felújítására 225/1962 (T.20.) ÁFTH sz. utasítás T.20 Községek és városok külterülete felmérésének végrehajtása 113/1963 (T.10.) ÁFTH sz. utasítás T.10 Községek belterülete felmérésének végrehajtására 260/1963 (T.2.) ÁFTH sz.irányelv T.2 Irányelvek a fotogrammetriai eljárások alkalmazására a külterületi térképfelújítási és új felmérési munkák végrehajtásánál 508/1965 (T.6.) ÁFTH sz. utasítás T.6 A Szabatos felmérési utasítás egyes rendelkezéseinek módosításáról 1208/1966 (T.14.) ÁFTH sz. utasítás T.14 A belterület kateszteri térképeinek fotogrammetriai eljárással történő felújítása és földnyilvántartási adatainak rendezése 610/1966 (T.8.) ÁFTH sz. útmutató T.8 A fotogrammetriai alapanyagok készítésére és felhasználására a nagyméretarányú térképezésben 610/1/1966 (T.14.) ÁFTH sz. utasítás T /1966 /T.8./ ÁFTH sz. útmutató 4. -nak kiegészítésére kiadott utasítás 40837/1973 (F.1.) sz. MÉM OFTH szabályzat F.1 Szabályzat a földmérési alaptérképek készítésére 64431/1975 (F.3.) sz. MÉM OFTH szabályzat F.3 Az egységes országos térképrendszer földmérési alaptérképeinek készítésére 48100/1978 (F.4.) sz. MÉM OFTH szabályzat F.4 A régi vetületi rendszerben újfelméréssel készült földmérési alaptérképeknek az egységes országos térképrendszerbe történő átdolgozása 47460/1983 (F.7) sz. MÉM OFTH szabályzat F.7 Az egységes országos térképrendszer földmérési alaptérképeinek készítésére 23

24 DAT Regulation The Digital Base Map (DAT) Regulation provides detailed descriptions of the procedures of design, production, revision and maintenance of digital base maps,about their data exchange format, documentation, control, quality control, verification and State acceptance, also the conversion of numeric and digital data of land surveying base maps into digital base maps and their quality control. From 1996 on, it is mandatory to produce the national land surveying base maps. The DAT Regulation consists of the following parts: DAT1 Regulation: Design, production, revision and maintenance of digital base maps, their data exchange format, documentation, control, quality control, verification and State acceptance. DAT2 Regulation: Conversion of land surveying base maps into digital base maps and their quality control. DAT1-M1: Annex to DAT1. Structure, data tables and data exchange formats; DAT1-M2: Annex to DAT1. Legends of the digital base map. DAT1-M3: Annex to DAT1. Land office software for examining and verifying the internal consistence of digital base map data. DAT2-M1: Annex to DAT2. Starting data and a computation software (TRAFO) for transformation among projection systems applied in Hungary (STG, HÉR, HKR, HDR, EOV, BOV) based on unified requirements and accuracy. 24

25 The rank of obect points (detail points) R1: The main breakpoints of administrative boarder s with strict stationary markings, all urban land parcel points bordering public lands (streets and squares) R2: Additional points of administrative boarders and urban parcels. Rural land parcels well marked points. R3: Rural parcels additional points, and the points of buildings, roads, cables and pipes surface facilities. R4: Points not belonging to the upper categories: ditches, cultivation type boundaries, R5: A soil quality boarders and geocode points. 25

26 Quality classification T1 - Urban areas T11 - Data from digital surveys (numerical data) T12 - Data drafted from pre Dat survey material and from digitizing maps T2 Rural areas T21 - Data from digital surveys (numerical data) T22 - Data drafted from pre Dat survey material and from digitizing maps 26

27 Accuracy of geometrical data T1 (Urban) [cm] T2 (Rural) [cm] T11 T12 T21 T22 R R R R The allowable difference in cm-s 27

28 Margin of error for distances T1 (Urban) T11 (new survey) T12 (digitizing) R1 R2 R3 R4 R1 R2 R3 R4 R R R R The error allowed between examination measurements and distances calculated from coordinates. (cm) 28

29 Margin of error for distances T2 (Rural) T21 (new survey) T22 (digitizing) R1 R2 R3 R4 R1 R2 R3 R4 R R R R The error allowed between examination measurements and distances calculated from coordinates. (cm) 29

30 National Cadastre Program Progress of the program: Digital new surveys June 2002

31 Revision of the National Cadastre Program Too slow and expensive, not enough result - by the end of 2003: the maps of 80 settlements are ready - IT infrastructure of land offices is well-developed - introduced digital map standards (DAT) Urgent need for digital maps 2003: Revision of the program speed up important to continue, more financial support is needed 65,6 million EUR loan is used until the end of 2007 Decision: digitizing the existing paper cadastral maps 2005: maps of rural areas, 2007: maps of urban areas All cadastral maps of Hungary converted into digital form by December 31,

32 Revision of the National Cadastre Program Too slow and expensive, not enough result - by the end of 2003: the maps of 80 settlements are ready - IT infrastructure of land offices is well-developed - introduced digital map standards (DAT) Urgent need for digital maps 2003: Revision of the program speed up important to continue, more financial support is needed 65,6 million EUR loan is used until the end of 2007 Decision: digitizing the existing paper cadastral maps 2005: maps of rural areas, 2007: maps of urban areas All cadastral maps of Hungary converted into digital form by December 31,

33 Rural maps Maps of rural areas shown in accordance to their projection EOV HÉR HKR STR HDR VN No Rural Area 33

34 Maps of urban areas Urban area maps shown in accordance to their projection EOV HDR HÉR HKR STR VN No data 34

35 Maps of special rural areas Special rural area maps shown in accordance to their projection EOV EOV DAT HDR HÉR HKR STR VN No data 35

36 Evaluation: Digitizing original paper maps Advantages: The most cost-effective way for making DAT maps (databases) This method were used as a composite method with new surveying The boundaries of a block of cadastral parcels were demarcated and surveyed, but the inner part of the block digitized This method can be used in the case of blocks, where changes of boundaries are not high Disadvantages: Conditions of original paper maps were sometimes very poor (distortions, pollutions, coffee etc.) Output of digitization is a spaghetti vector map, not an object-oriented database Original paper maps are legally valid, but sometimes do not reflect the real situation (e.g. land use) Transformation between different projections (and datum) could effect inconsistency between data. (5 different projection systems) 36

37 Problems with digitized old maps Conditions of original paper maps were sometimes very poor: distortions, Original paper maps are legally valid, but sometimes do not reflect the real situation, the real land use and the new buildings. 37

38 New Surveying 10 % (~ 1 million ha) of Hungary was surveyed Results Output: Object-oriented databases according to Digital Base Map Standard Costs: EUR 23,2 million Digitization The rest (90 %, ~ 8,3 million ha) was digitized Output: Spaghetti Digital Cadastral Maps Costs: EUR 34,5 million Costs are highly different between rural and built-up areas of settlement 38

39 Neto income from selling maps and digital data County FÖMI Landoffice NKP Landoffice FÖMI Landoffice NKP Landoffice 100% 100% 100% 50% 50% 70% 30% 50% 50% 70% 30% 100% Budapest Baranya Bács-Kiskun Békés Borsod-Abaúj-Zemplén Csongrád Fejér Győr-Moson-Sopron Hajdú-Bihar Heves Komárom-Esztergom Nógrád Pest Somogy Szabolcs-Szatmár-Bereg Jász-Nagykun-Szolnok Tolna Vas Veszprém Zala Total m Euro 3.62 m Euro 39

40 Thank you for your kind attention! 40
